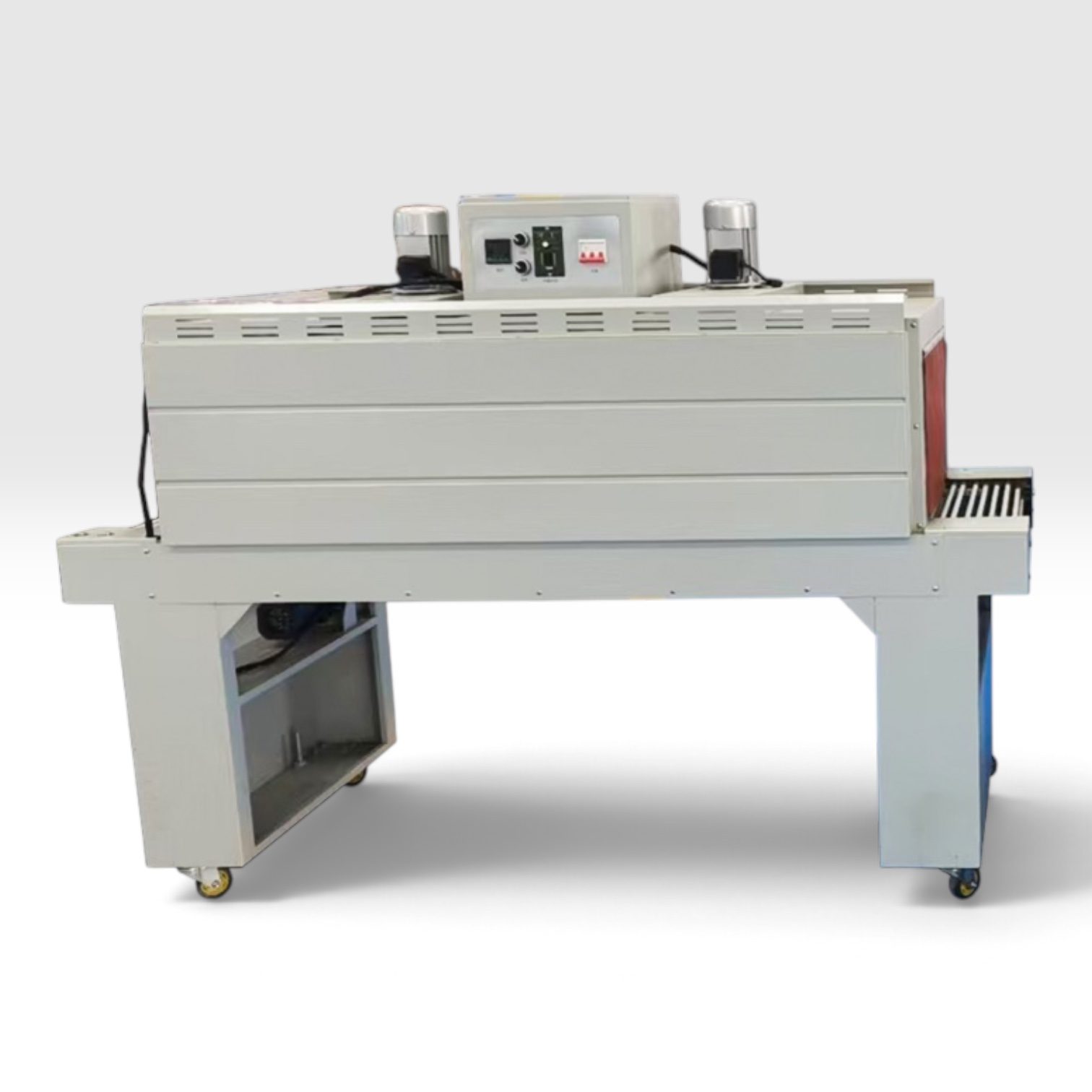

WERDEN Shrink Tunnel WD-5530T
WERDEN Shrink Tunnel WD-5530T
A Shrink Tunnel is a heat-shrink packaging machine used to finish products wrapped in shrink film, pulling the film tightly around the item for a clean, protective, tamper-resistant package. It's widely used across food & beverage, cosmetics, pharmaceuticals, printing, and general consumer goods where a uniform, finished look and extra protection are important.
Key Features
- Adjustable conveyor speed (0–15 m/min) to match different product and film requirements
- Live silicon sleeve roller conveyor setup for smooth, consistent product movement
- Suited for a wide range of shrink-film packaging tasks across multiple industries
Applications
Suited for automotive spare parts, food safety and traceability, and e-commerce and logistics packaging — as well as cosmetics, pharmaceuticals, printing, and general consumer goods requiring a finished, tamper-resistant shrink-wrapped presentation.
Specification
| WD-5530T | |
|---|---|
| Tunnel Size | 1500mm x 550mm x 300mm |
| Product Size | 500mm x 250mm |
| Conveyor Speed | Adjustable, 0–15 m/min |
| Max. Conveyor Load | 25 kg |
| Additional Conveyor Setup | Live silicon sleeve roller |
| Machine Weight | 260 kg |
| Machine Dimensions | 1900mm x 800mm x 1500mm |
| Power Source | 380V, 15kW, 50Hz, 3-phase |
