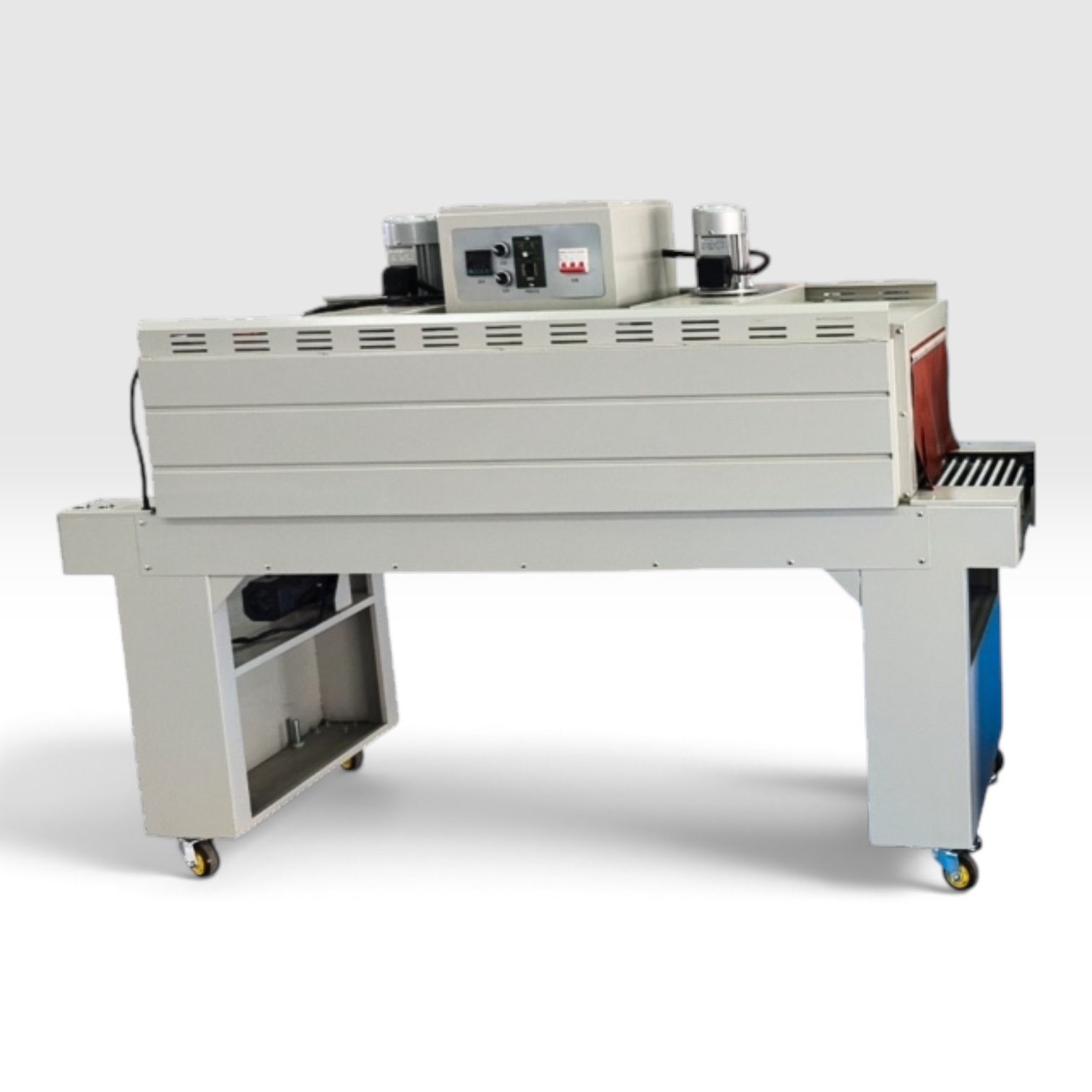

WERDEN Shrink Tunnel WD-4525T
WERDEN Shrink Tunnel WD-4525T
A Shrink Tunnel is a heat-shrink packaging machine used to finish products wrapped in shrink film, pulling the film tightly around the item for a clean, protective, tamper-resistant package. It's widely used across food & beverage, cosmetics, pharmaceuticals, printing, and general consumer goods where a uniform, finished look and extra protection are important.
Key Features
- Adjustable conveyor speed (0–15 m/min) to match different product and film requirements
- Live silicon sleeve roller conveyor setup for smooth, consistent product movement
- Compact tunnel suited for smaller products than the larger WD-5530T
Applications
Suited for automotive spare parts, food safety and traceability, and e-commerce and logistics packaging — as well as cosmetics, pharmaceuticals, printing, and general consumer goods requiring a finished, tamper-resistant shrink-wrapped presentation.
Specification
| WD-4525T | |
|---|---|
| Tunnel Size | 1500mm x 450mm x 250mm |
| Product Size | 400mm x 200mm |
| Conveyor Speed | Adjustable, 0–15 m/min |
| Max. Conveyor Load | 25 kg |
| Additional Conveyor Setup | Live silicon sleeve roller |
| Machine Weight | 185 kg |
| Machine Dimensions | 1900mm x 700mm x 1350mm |
| Power Source | 380V, 12kW, 50Hz, 3-phase |
