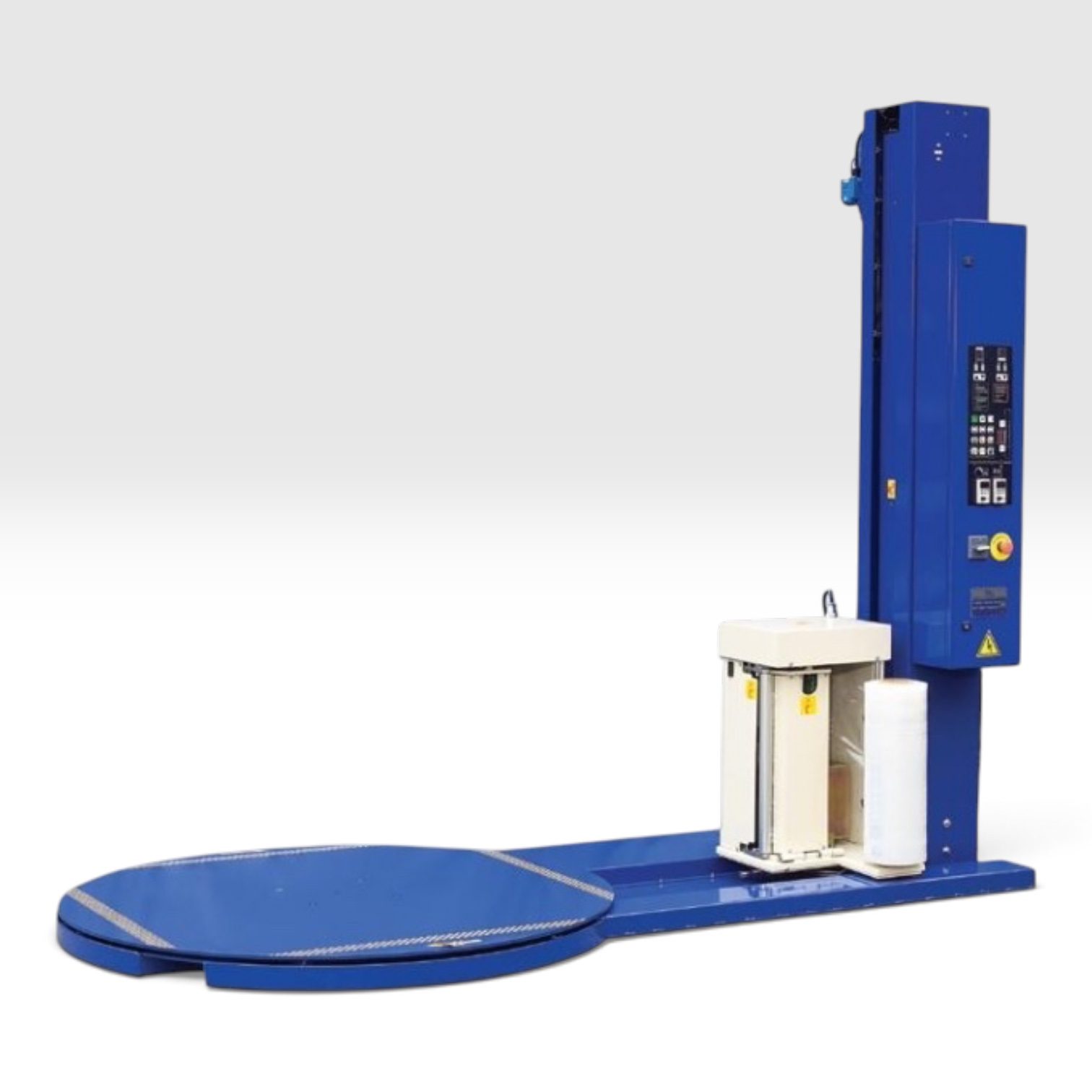

Semi-Automatic Stretch Wrapper SM-1517R (Pre-Stretch)

Pre-Stretch Pallet Wrapping Machine SHII MEEI SM-1517R

The SHII MEEI SM-1517R is a pre-stretch pallet wrapping machine designed to efficiently secure and stabilize palletized goods using stretch film. Its pre-stretch technology allows the film to be stretched before being applied to the load, helping improve film utilization while maintaining consistent wrapping tension.

The machine features a patented pre-stretch system capable of stretching film up to 250%, with the manufacturer stating that this can reduce stretch film consumption by up to 60% compared with conventional wrapping methods. Actual film savings will depend on the film specification, load characteristics, and wrapping requirements.

The SM-1517R provides four wrapping modes, including standard wrapping, two single-layer wrapping modes, automatic reinforcement of the central area, and waterproof wrapping. Operators can adjust the turntable speed, carriage movement speed, and the number of top and bottom wrapping layers through the touchscreen control panel.

A soft start and stop function helps provide smooth operation, while the home-position function returns the turntable to its designated position after wrapping, making pallet unloading more convenient. The film can also be configured for either automatic or manual cutting when the wrapping cycle is completed.

The machine uses a waterproof control panel enclosure and stable PCBA control system, with a compact and robust construction suitable for demanding working environments. The SM-1517R is also fully compliant with CE standards.

Key Features

• Pre-stretch pallet wrapping system
• Film pre-stretch up to 250%
• Potential film consumption reduction of up to 60%
• Four selectable wrapping modes
• Standard wrapping
• Single-layer wrapping
• Central-area reinforcement wrapping
• Waterproof wrapping mode
• Adjustable turntable speed
• Adjustable carriage up/down speed
• Adjustable top and bottom wrapping layers
• Touchscreen control panel
• Soft start and stop
• Automatic home-position function
• Automatic or manual film cutting
• Compact and robust construction
• Waterproof control panel enclosure
• CE compliant
• Optional ramp plate for hand pallet jack loading
• Optional safety protection system

Available Configurations

The SM-1517R series is available with different turntable sizes to accommodate different pallet dimensions:

• SM-1517R-15 — Ø1,500 mm turntable
• SM-1517R-18 — Ø1,800 mm turntable
• SM-1517R-20 — Ø2,000 mm turntable

Depending on the configuration, maximum pallet dimensions range from approximately 1,300 × 1,300 mm to 1,500 × 1,500 mm, with a maximum packing height of 2,100 mm and maximum loading weight of 2,000 kg.

Typical Applications

The SM-1517R is suitable for warehousing, logistics, distribution, manufacturing, e-commerce fulfilment, and general industrial packaging where palletized goods need to be securely wrapped for storage and transportation.

It is particularly suitable for businesses with high stretch-film consumption or frequent pallet wrapping, where reducing film usage while maintaining reliable load stabilization is an important consideration.
