Inline Fully Automatic Stretch Wrapping Machine S300

Inline Fully Automatic Pallet Wrapping Machine Smart Wasp S300

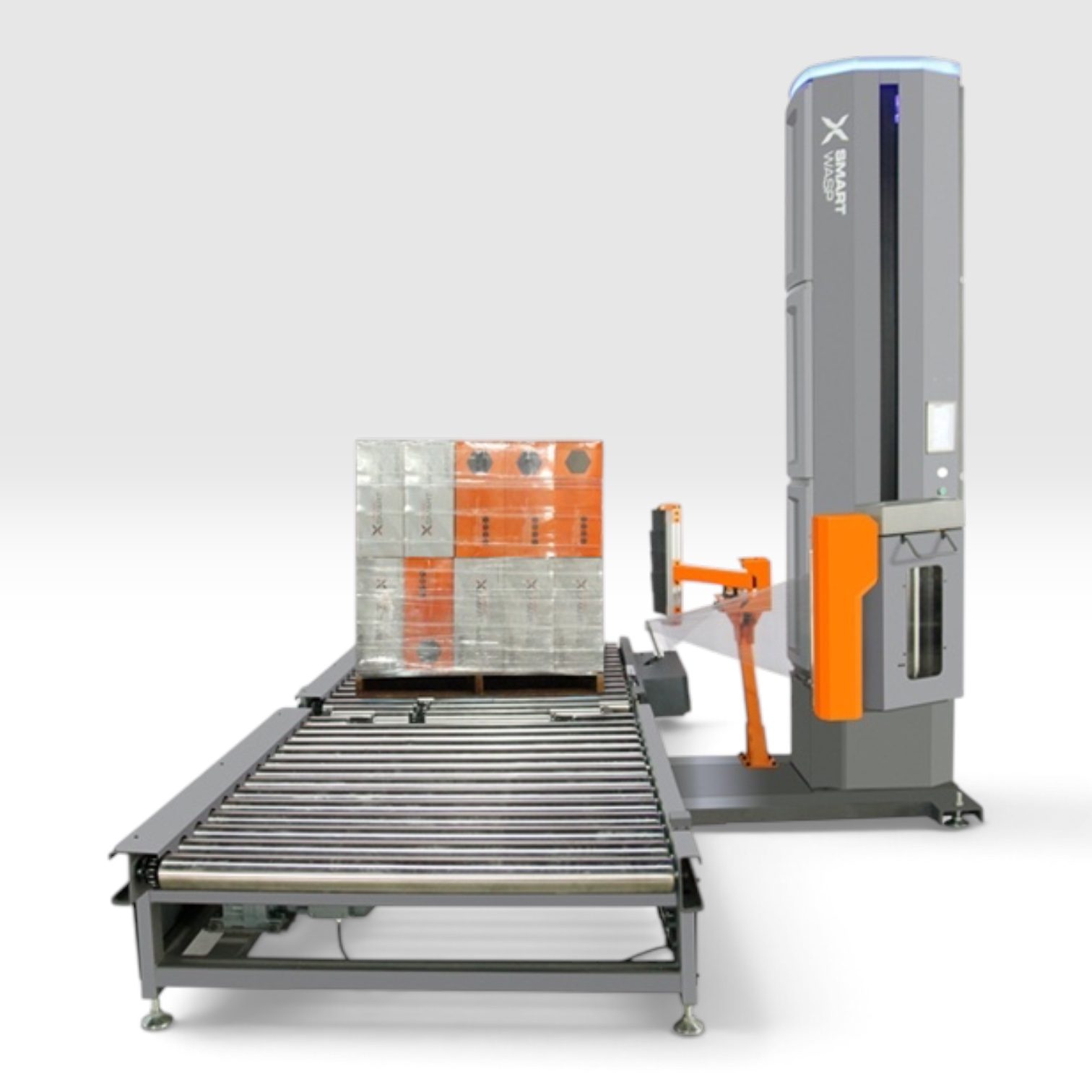

The Smart Wasp S300 is an inline fully automatic pallet wrapping machine designed for high-volume production and logistics environments. It automatically wraps palletized goods with LLDPE stretch film and can be integrated directly into an existing conveyor system, allowing pallets to move through the wrapping process with minimal operator intervention.

The S300 is equipped with a powered pre-stretch film delivery system providing 250% pre-stretch, helping improve stretch film utilization while maintaining consistent wrapping tension. The actual film saving will depend on the film specification, load characteristics, and wrapping requirements.

A photoelectric sensor automatically detects pallet height, allowing the machine to adjust the wrapping cycle according to the load. Operators can program the number of top, bottom, and reinforcement wrapping cycles, as well as adjust film tension and carriage lifting speed to suit different products and load requirements.

The machine features automatic film cutting and clamping, eliminating the need for operators to manually cut and secure the film after wrapping. This is particularly beneficial for continuous production lines where consistent cycle times and reduced manual intervention are important.

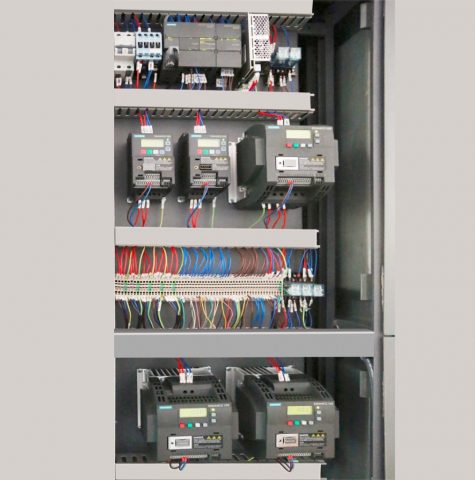

The S300 uses a Siemens PLC control system and touchscreen interface, with programmable controls and frequency-converter speed adjustment. Soft-start and soft-stop functions help provide smooth machine operation and reduce mechanical stress.

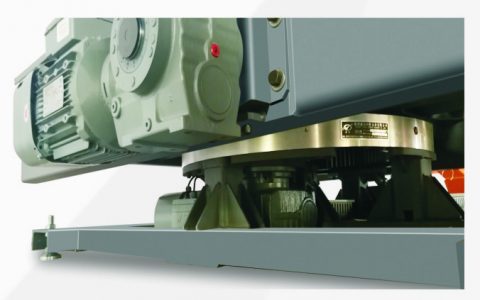

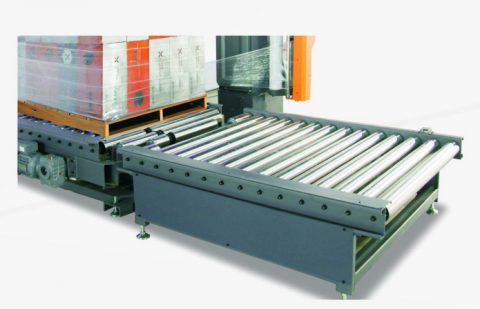

A durable stainless-steel roller conveyor allows the S300 to connect with upstream and downstream conveyors for automated pallet movement. The slewing-ring turntable is designed to handle loads of up to 2,000 kg while providing lower vibration and quieter operation compared with conventional chain-driven turntables.

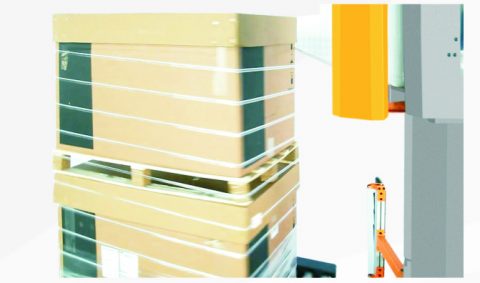

The S300 also incorporates a film rope system that narrows the film at the bottom of the pallet to provide additional grip between the film, pallet, and load. This can help improve load stability during transportation and provide additional protection if the lower film layer is damaged by forklift handling.

Key Features

• Inline fully automatic pallet wrapping
• Designed for integration with production and conveyor lines
• 250% standard pre-stretch
• Automatic pallet-height detection
• Automatic film cutting and clamping
• Programmable wrapping cycles
• Adjustable top, bottom, and reinforcement wrapping
• Variable film tension control
• Adjustable carriage lifting speed
• Siemens PLC control system
• Siemens 7-inch touchscreen
• Frequency converter for variable speed control
• Stainless-steel roller conveyor
• Slewing-ring turntable
• Maximum load capacity: 2,000 kg
• Automatic soft start and soft stop
• Standard film rope system
• Optional weighing scale
• Suitable for continuous production environments

Typical Applications

The S300 is suitable for manufacturing plants, warehouses, logistics centres, distribution centres, food and beverage, paper products, electronics, glassware, tools, ceramics, and other industries handling palletized products.

It is particularly suitable for automated production lines where pallets need to be wrapped continuously with consistent wrapping quality and minimal operator involvement.
