Automatic Carton Erector with Bottom Sealer RPK-09

Automatic Carton Erector with Bottom Sealer RPK-09

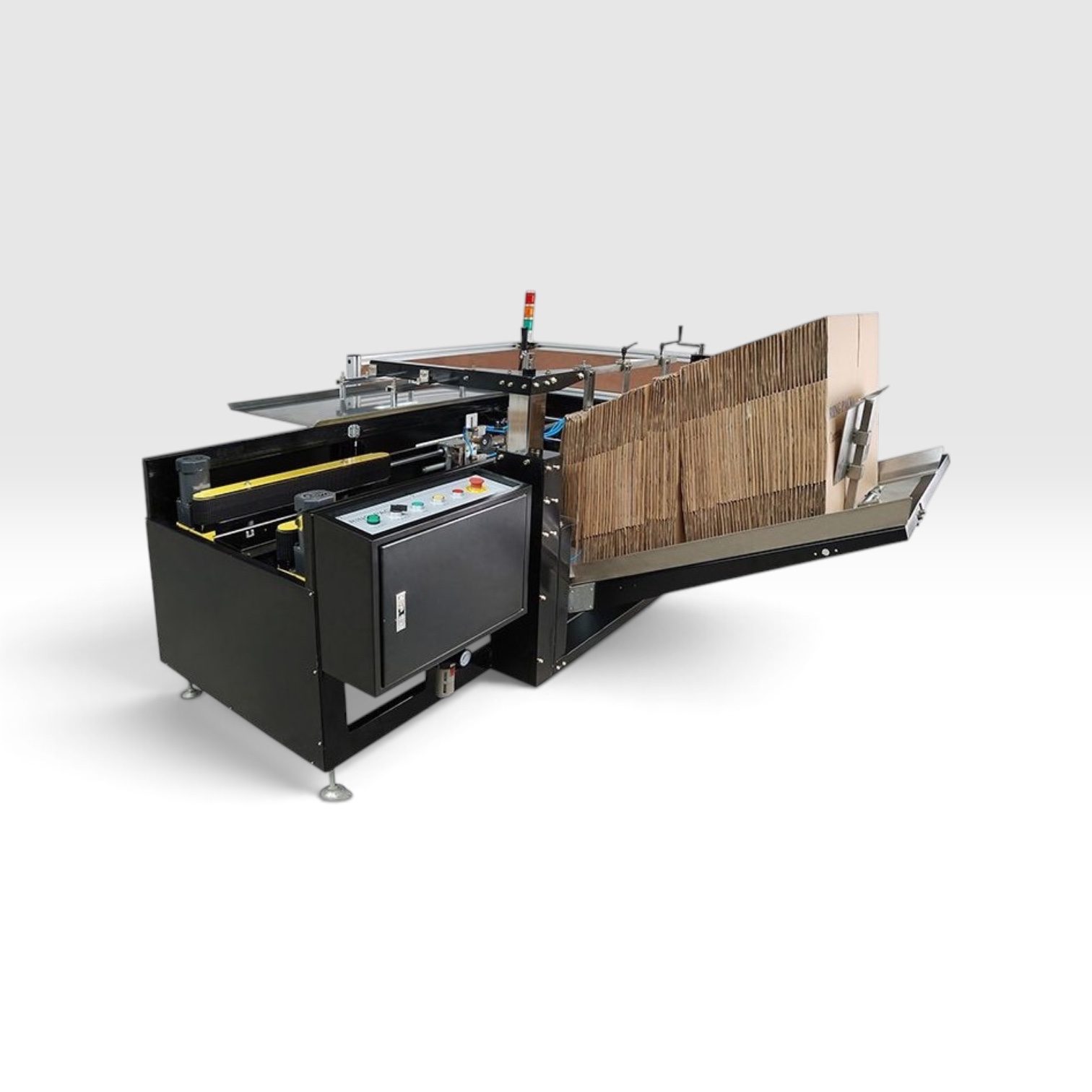

The RING PACK RPK-09 is an automatic carton erecting machine that forms flat carton blanks into boxes and automatically seals the bottom centre seam with adhesive tape. By combining carton forming and bottom sealing in a single machine, it helps reduce manual carton preparation and improve packaging line efficiency.

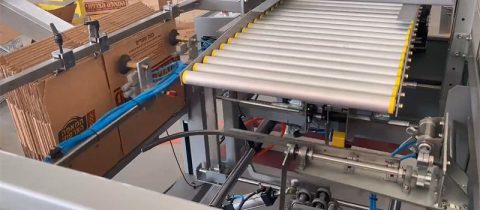

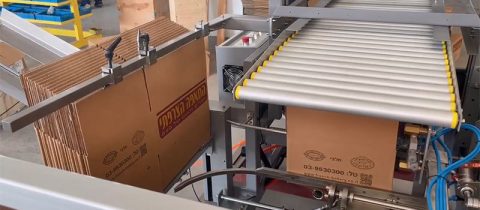

The machine uses side drive belts to transport cartons through the forming and sealing process. Its vertical carton magazine provides a continuous supply of carton blanks and can be refilled during operation, helping maintain a steady workflow.
The RPK-09 is designed for applications where cartons of different sizes may be required. Carton size adjustments can be made through a single control point, allowing operators to change between supported carton dimensions without extensive machine adjustment.
The machine automatically applies tape over the bottom centre seam of the carton. It is designed for cartons within approximately 300–450 mm in length, 200–380 mm in width and 150–350 mm in height, with a production speed of approximately 10–15 cartons per minute.

Key Features

• Automatic carton erecting and bottom sealing
• Converts flat carton blanks into ready-to-fill cartons

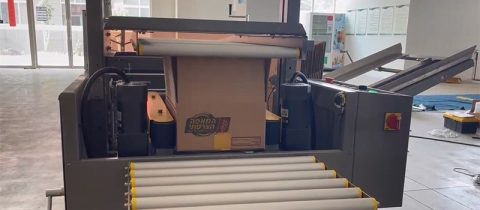

• Automatic bottom centre-seam taping
• Side belt-driven carton transport
• Vertical carton magazine
• Magazine can be replenished during operation
• Adjustable for different carton sizes
• Working speed: 10–15 cartons/minute
• Carton length: 300–450 mm
• Carton width: 200–380 mm
• Carton height: 150–350 mm
• Tape width: 48–75 mm
• Pneumatic requirement: 5–6 kg/cm²
• Table height: 650 mm
• Robust construction for continuous operation

Typical Applications

The RPK-09 is suitable for manufacturing, logistics, warehousing, e-commerce, food and beverage, electronics, consumer goods, spare parts and general industrial packaging.
It is particularly useful as part of an automated end-of-line packaging system, where cartons need to be continuously formed and supplied to a downstream filling, packing or carton sealing process.
