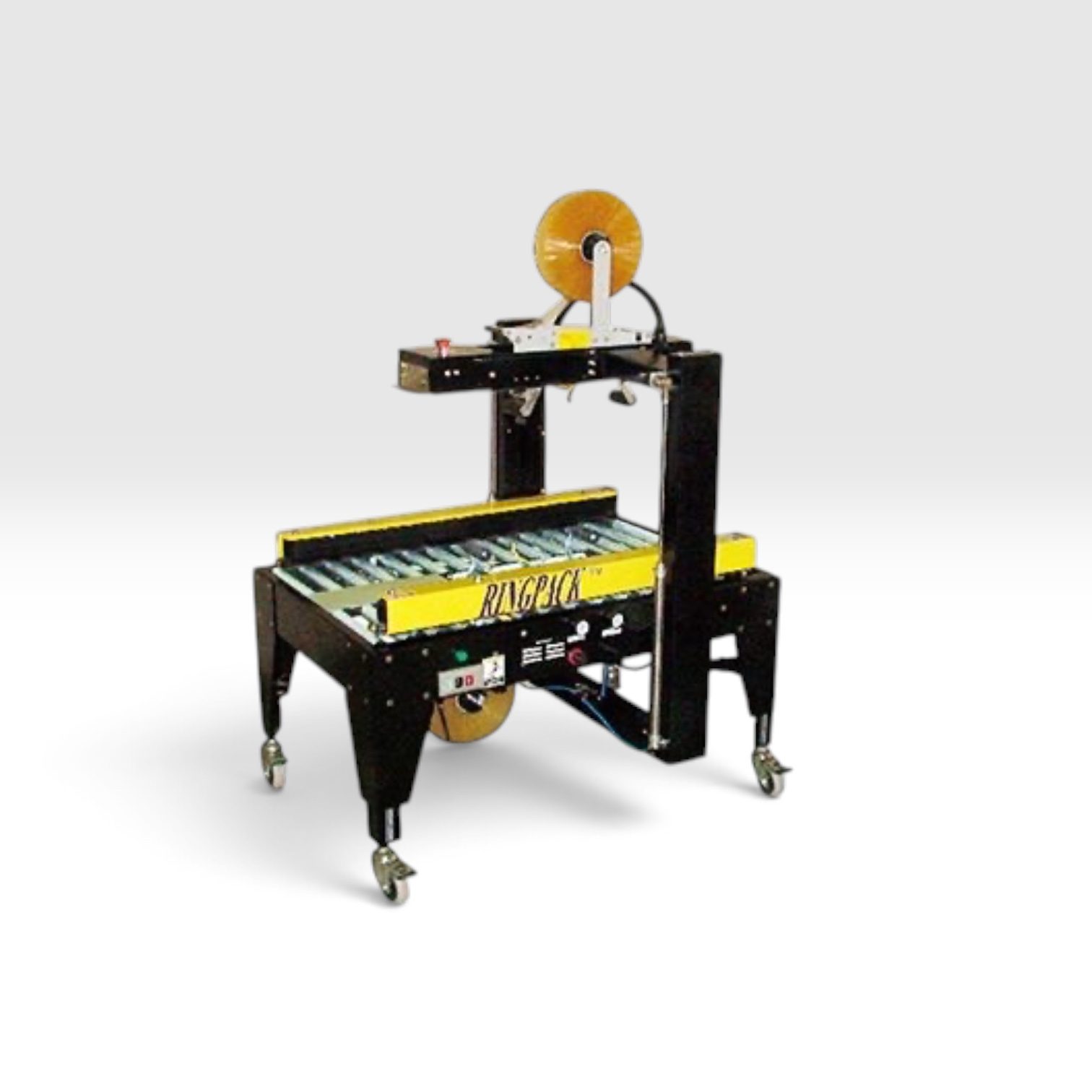

Fully Automatic Side Belt Carton Sealer RPE-05

Fully Automatic Side Belt Carton Sealer RPE-05

The RING PACK RPE-05 is a fully automatic side belt carton sealer designed to efficiently seal cartons of different sizes with minimal operator intervention. The machine automatically applies adhesive tape to the top and bottom centre seams while automatically adjusting its width and height to accommodate different carton dimensions.
The side belt-driven transport system provides stable movement of lightweight cartons through the sealing process. This makes the RPE-05 particularly suitable for applications where carton sizes vary and consistent sealing productivity is required.
Unlike a conventional semi-automatic carton sealer, the RPE-05 does not require the operator to manually adjust the machine every time the carton size changes. Its automatic width and height adjustment allows different carton dimensions to be processed efficiently, making it suitable for businesses handling multiple carton sizes throughout their production or packing operation.
The adjustable top taping head adapts to different carton heights, helping maintain accurate positioning and consistent sealing performance.
With a working speed of approximately 300–750 cartons per hour, the RPE-05 provides a practical solution for businesses looking to increase carton sealing productivity while reducing manual adjustments.

Key Features

• Fully automatic carton sealing
• Automatic top and bottom tape application
• Automatic width and height adjustment
• Side belt-driven carton transport
• Suitable for lightweight cartons
• Adjustable top taping head
• Handles different carton sizes without manual adjustment
• Working speed: 300–750 cartons/hour
• Carton length: 200 mm and above
• Carton width: 200–500 mm
• Carton height: 200–500 mm
• Tape width: 48–75 mm
• Compact machine design
• Single-phase 110V/220V power supply
• Pneumatic air requirement: 5 kg/cm²
• Machine weight: approximately 180 kg

Typical Applications

The RPE-05 is suitable for food and beverage, pharmaceutical, electronics, retail, logistics, e-commerce, manufacturing, and general industrial packaging.
It is particularly suitable for businesses that handle multiple carton sizes and want to automate the sealing process without requiring operators to manually adjust the machine between different carton dimensions.
