Semi Automatic Carton Sealer RPA-05 (Side Belt Driven)

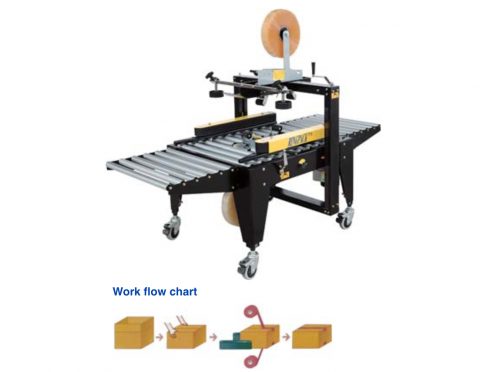

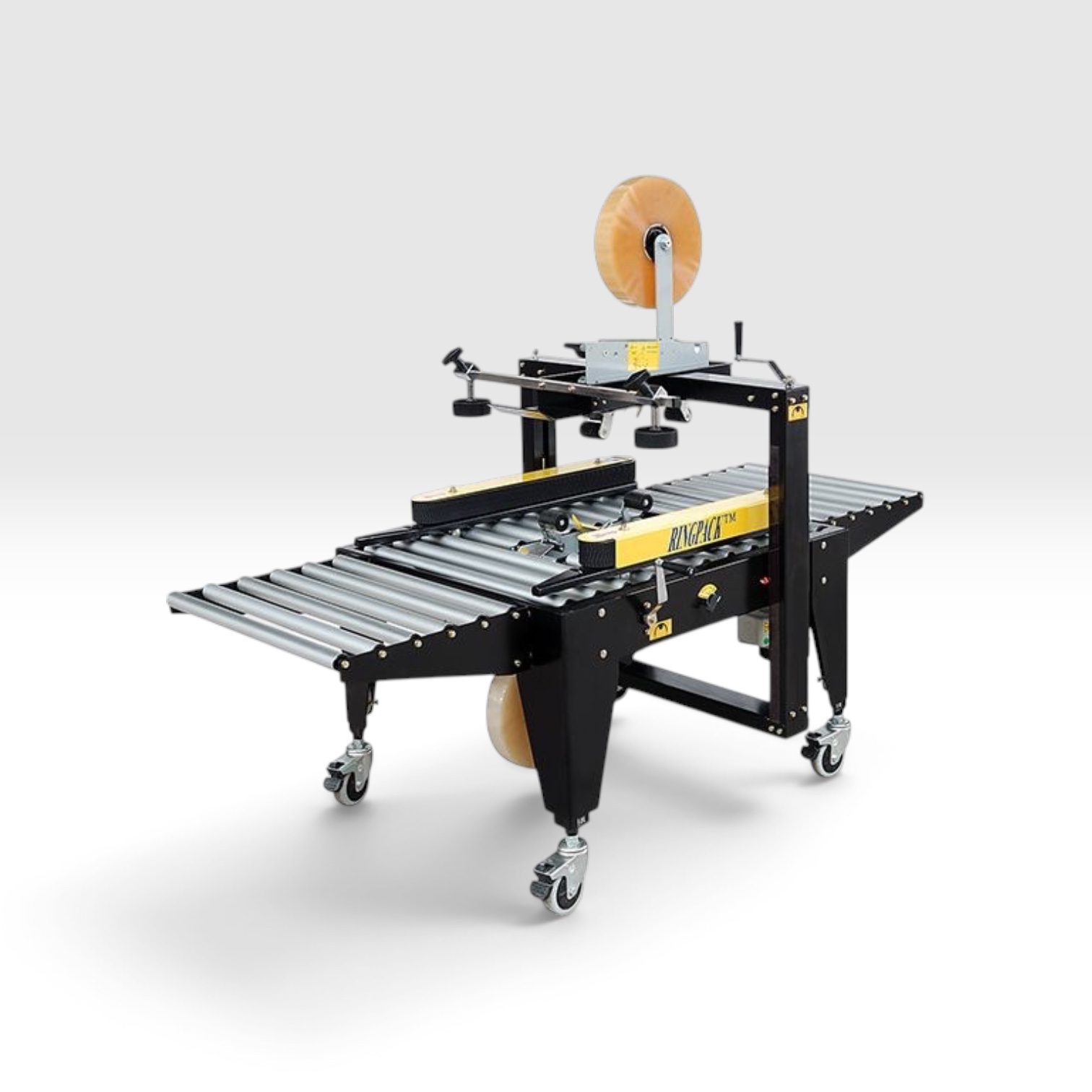

Semi-Automatic Side Belt Driven Carton Sealer RPA-05

The RPA-05 Semi-Automatic Carton Sealer is designed for efficient and consistent sealing of small and lightweight cartons using pressure-sensitive adhesive tape. Its compact side belt-driven design provides stable carton transport while automatically applying tape to the top and bottom centre seams.
The machine is particularly suitable for applications where cartons are relatively consistent in size. When changing carton dimensions, the operator can manually adjust the machine to accommodate the new carton size.
With a working speed of approximately 700–1,200 cartons per hour, the RPA-05 provides significantly faster and more consistent carton sealing compared with manual carton taping. Its simple operating concept also allows it to be used without extensive operator training.

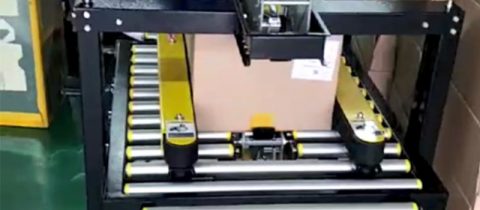

The side belt drive system is designed specifically to transport lightweight cartons through the sealing process. The machine automatically applies tape to both the top and bottom centre seams, producing a neat and consistent seal while reducing manual handling.
Its compact construction makes the RPA-05 a practical solution for businesses looking to improve carton sealing productivity without investing in a fully automatic random carton sealer.

Key Features

• Semi-automatic carton sealing
• Side belt-driven carton transport
• Suitable for small and lightweight cartons
• Automatic top and bottom tape application
• Manual adjustment for different carton sizes
• Working speed: 700–1,200 cartons/hour
• Tape width: 48–75 mm
• Compact and economical design
• Simple operation with minimal training required
• Stable and consistent sealing performance
• Standard spare parts readily available
• Single-phase 110V/220V power supply

Carton Size

The RPA-05 accommodates cartons within the following ranges:

• Length: 200 mm and above
• Width: 150–500 mm
• Height: 150–500 mm

An alternative configuration is available for cartons with a minimum width and height of 200 mm.

Typical Applications

The RPA-05 is suitable for e-commerce, logistics, warehousing, manufacturing, electronics, spare parts, consumer goods, and general carton packaging.
It is particularly suitable for businesses that handle small or lightweight cartons of relatively consistent dimensions and want to improve sealing speed and consistency without moving to a fully automatic system.
