Semi-Automatic Carton Sealer with Automatic Flap Folding RPC-05

Semi-Automatic Carton Sealer with Automatic Flap Folding RPC-05

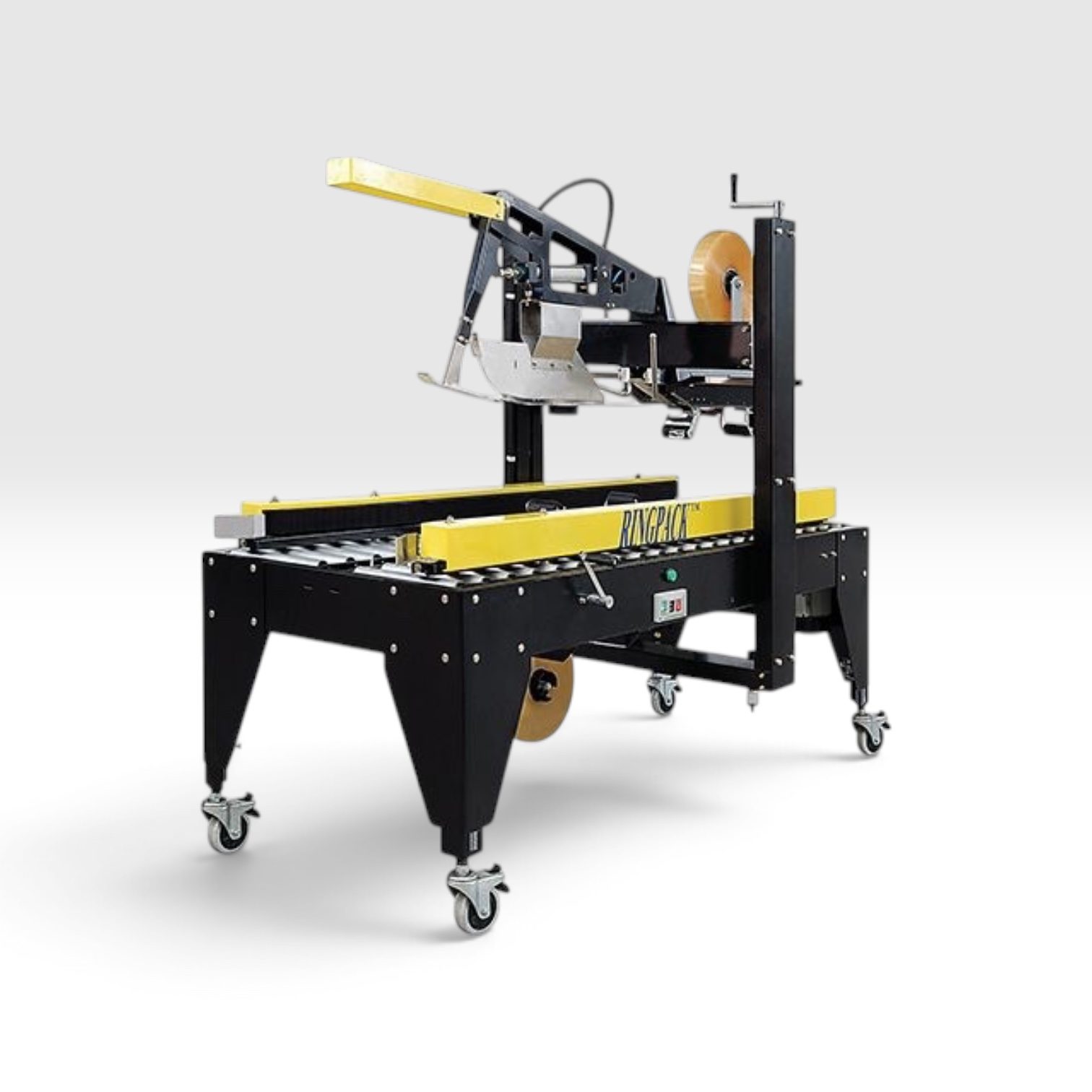

The RING PACK RPC-05 is a semi-automatic carton sealing machine designed to automate both top-flap folding and carton sealing in end-of-line packaging operations. It automatically folds the carton flaps before applying adhesive tape to the top and bottom centre seams, reducing manual handling and improving sealing consistency.

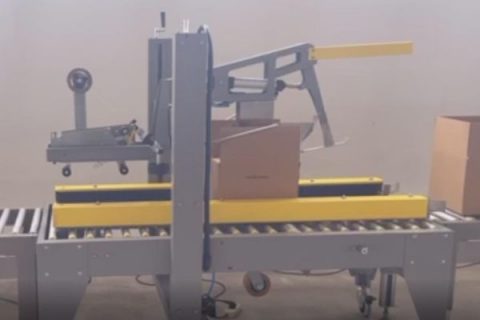

The machine uses a side belt-driven transport system to move cartons through the folding and sealing process at a belt speed of approximately 18 m/min. It is designed for cartons of consistent dimensions, with manual adjustment available when changing carton sizes.
The RPC-05 can handle cartons from 200–500 mm in length, 150–500 mm in width, and 150–500 mm in height. It accepts tape widths from 48–75 mm, with one tape width installed at a time.
Its compact design provides an economical way to automate carton closing and sealing without requiring a fully automatic random-size carton sealer. The machine is particularly useful for production lines where carton sizes are relatively consistent and the operator currently needs to manually fold the top flaps before sealing.

Key Features

• Semi-automatic carton sealing
• Automatic top-flap folding
• Automatic top and bottom centre-seam taping
• Side belt-driven carton transport
• Manual adjustment for different carton sizes
• Carton length: 200–500 mm
• Carton width: 150–500 mm
• Carton height: 150–500 mm
• Belt speed: 18 m/min
• Tape width: 48–75 mm
• Compact and energy-efficient design
• Robust construction for dependable operation
• Pneumatic operation
• Air requirement: 5 kg/cm²
• Machine weight: approximately 180 kg

Typical Applications

The RPC-05 is suitable for food and beverage, pharmaceutical, electronics, retail, logistics, warehousing, manufacturing, and general industrial packaging.
It is particularly suitable for businesses that want to automate the carton closing and sealing process while continuing to use a semi-automatic workflow.
