Fully Automatic Dual Side Sealing Machine APW-15020-2SS

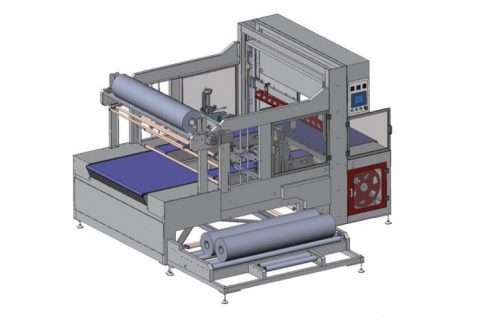

The OUYA Dual Side Sealing Machine APW-15020-2SS is a heavy-duty shrink sealing solution designed for extra large and bulky products that require fully enclosed four-side wrapping. Unlike conventional L-type sealers, this machine uses two adjustable side sealing systems to create a complete sealed film package around large products.

The machine is available in configurations for products up to 200 mm or 450 mm in height, with a 1,500 mm sealing width. The adjustable side sealing devices allow the machine to accommodate products with different dimensions without requiring replacement of major components, making it suitable for flexible production environments.

The machine uses two single-layer film rolls, with the lower film supplied from a separate film rack for easier film replacement. Two automatic waste-strip rewinding systems collect excess film from the sealing process, helping keep the packaging area cleaner and reducing manual handling.

A PLC and touchscreen control system provides convenient operation and allows production parameters to be stored and recalled when changing between products. Product size adjustments can be made through hand-wheel controls, helping simplify changeovers between different product sizes.

The machine is equipped with integrated infeed and outfeed conveyors, available in belt or roller configurations depending on the product. This allows the machine to be connected to upstream and downstream equipment for continuous automated packaging lines.

With its solid and durable construction, the Dual Side Sealing Machine APW-15020-2SS is particularly suitable for heavy and oversized products requiring protection from dust and humidity during storage, handling, and transportation.

Key Features

• Designed for extra large and bulky products
• Fully enclosed four-side shrink wrapping
• Two adjustable side sealing systems
• 1,500 mm sealing width
• Available for maximum pack heights of 200 mm or 450 mm
• Uses two single-layer film rolls
• PLC and touchscreen control
• Production parameter memory
• Easy manual adjustment for different product sizes
• Integrated infeed and outfeed conveyors
• Automatic waste-strip rewinding on both sides
• Heavy-duty construction for large and heavy products
• Suitable for integration into automatic packaging lines
• Conveyor speed up to 20 m/min

Typical Applications

The machine is suitable for shrink wrapping doors, wood flooring, large picture or painting frames, carton boxes, furniture components, building materials, and other large or bulky products that require complete film enclosure and protection.
