Semi-Automatic L-Type Sealer Ouya AP-1622A

Semi-Automatic L-Type Sealer OUYA AP-1622A

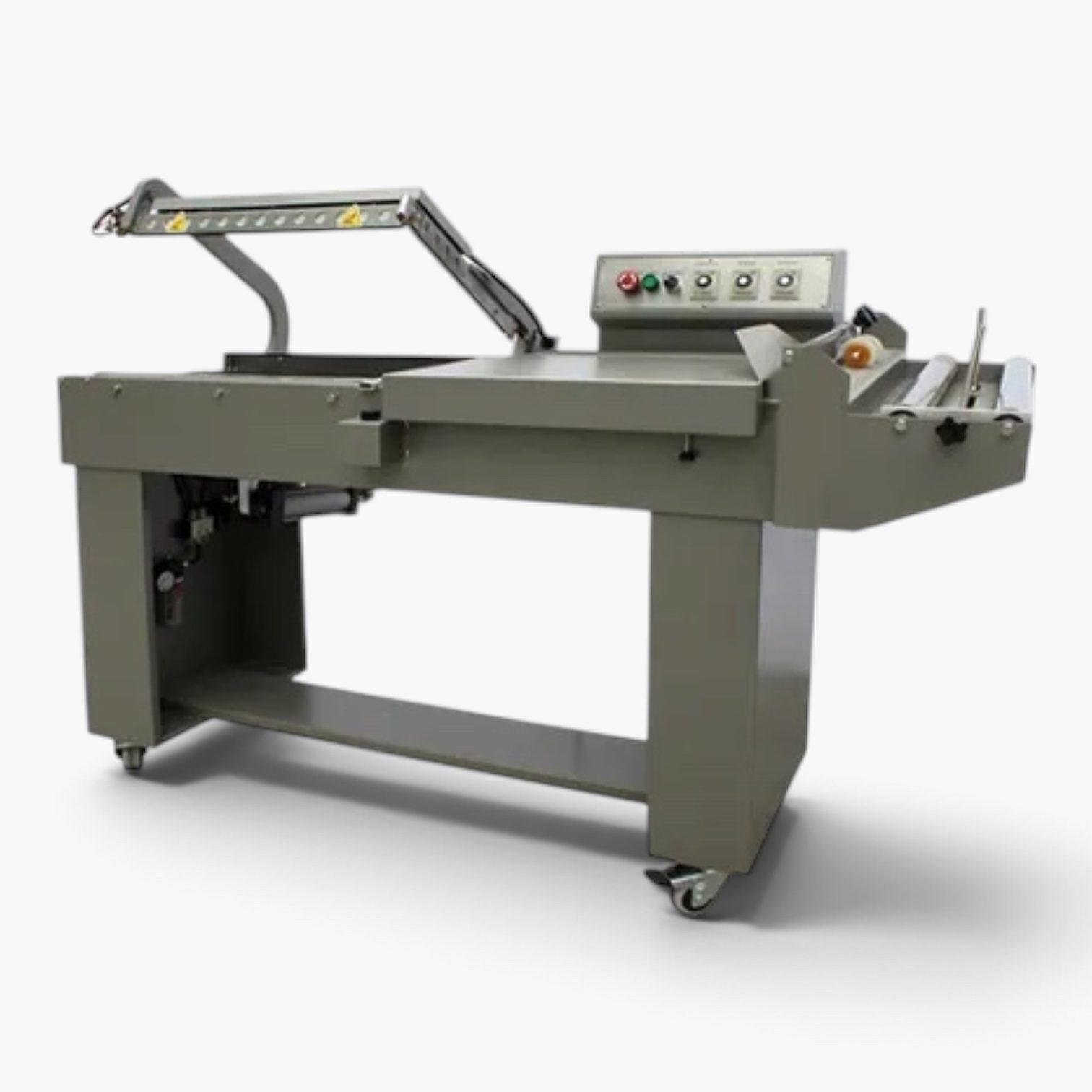

The OUYA AP-1622A is a semi-automatic L-type sealing machine designed to provide a simple, efficient, and economical solution for shrink wrapping solid products. It is suitable for businesses that require more consistent and productive packaging than manual sealing, while maintaining a compact and easy-to-operate machine.

The machine is equipped with a 550 × 400 mm sealing bar and a powered belt discharge conveyor, allowing sealed products to be transferred smoothly after the sealing cycle. Its dual magnetic clamping system provides increased sealing force to produce a firm and consistent seal.

The sealing blade is coated with anti-adhesive Teflon, helping produce a clean and firm seal while reducing smoke during operation. An overheat protection function helps extend the service life of the sealing system, while the hand-clamping protection device provides additional safety for the operator and helps prevent accidental damage to the product.

The AP-1622A features easy adjustment of the sealing and conveyor time, together with a quick film-loading design and pin perforation device for convenient operation. Heavy-duty lockable castors also allow the machine to be moved and positioned easily within the packaging area.

For applications requiring further automation, the AP-1622A can be combined with the OUYA APT-1810 heat shrink tunnel to create a complete shrink-wrapping system. The heat shrink tunnel can be supplied separately or as part of a complete packaging set.

Key Features

• Semi-automatic L-type sealing operation
• 550 × 400 mm sealing bar
• Powered belt discharge conveyor
• Dual magnetic clamping system for firm sealing
• Anti-adhesive Teflon-coated sealing blade
• Overheat protection
• Hand-clamping protection for operator safety
• Adjustable sealing and conveyor time
• Quick film-loading design
• Advanced pin perforation device
• Heavy-duty lockable castors for easy positioning
• 220 VAC, single-phase power supply
• Machine dimensions: 1600 × 775 × 1000 mm
• Machine weight: 145 kg

Typical Applications

The AP-1622A is suitable for shrink wrapping solid products across various industries, including automotive spare parts, e-commerce and logistics, food products, consumer goods, and general industrial products. It is particularly suitable for businesses looking for an economical entry into semi-automatic shrink wrapping.
