Semi-auto pallet strapping machine JN-85PS (Pallet Strapper)

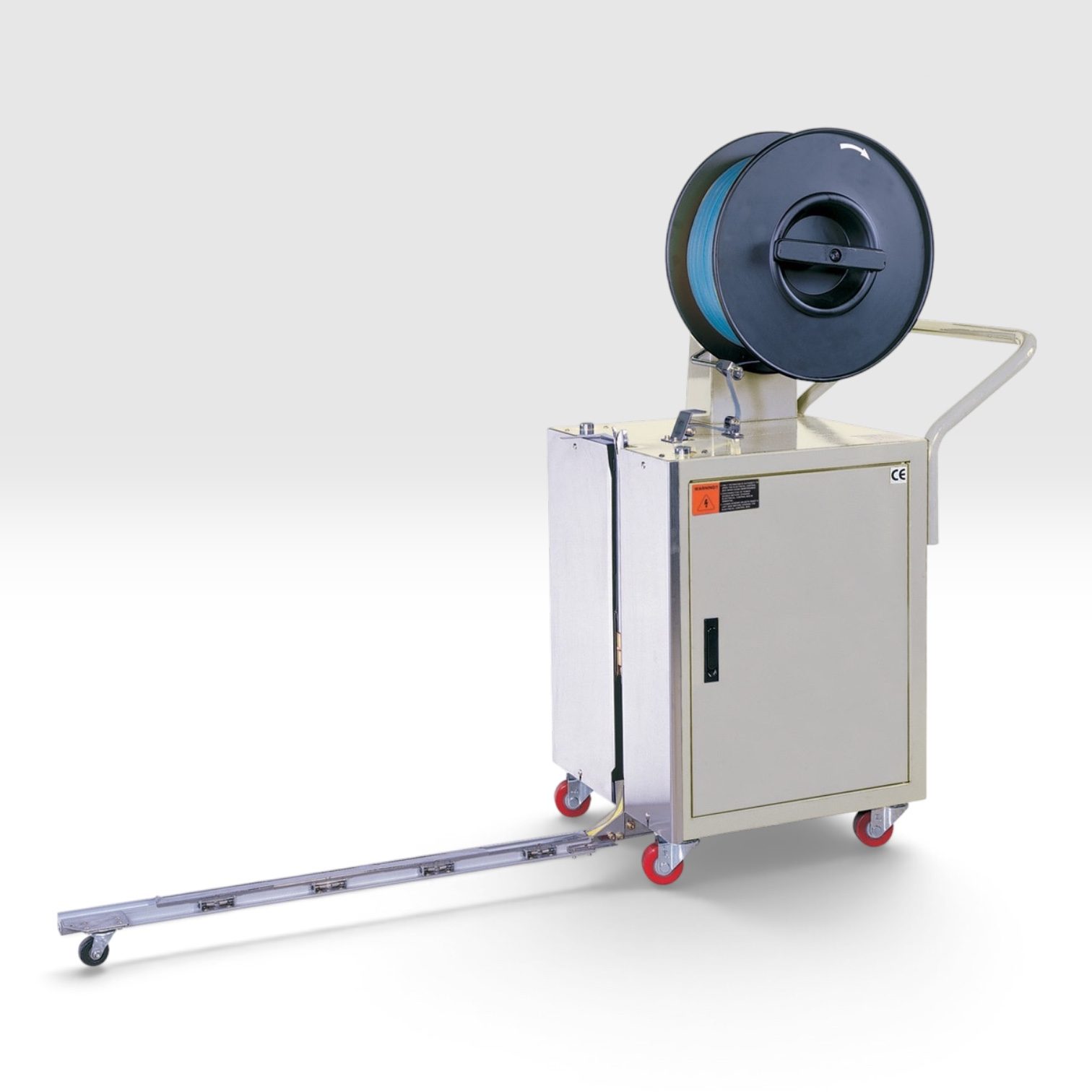

Semi-Automatic Pallet Strapping Machine CHALI JN-85PS

The CHALI JN-85PS is a semi-automatic pallet strapping machine designed to securely bundle and stabilize palletized goods for handling, storage, and transportation. Its movable design allows operators to position the machine around different pallet loads, making it a practical solution for warehouses, logistics operations, and manufacturing environments.

The machine uses PP strapping as standard, with PET strapping available as an option. It features a standard 1,000 mm strapping arch, while customized arch lengths are available for larger pallet loads. The inside tension adjustment allows operators to control the strap tension according to the load and application.

The JN-85PS uses a heat-sealing system and can provide a maximum strap tension of approximately 70 kg. It accommodates strap widths from 12 to 15 mm, making it suitable for securing a wide range of palletized products.

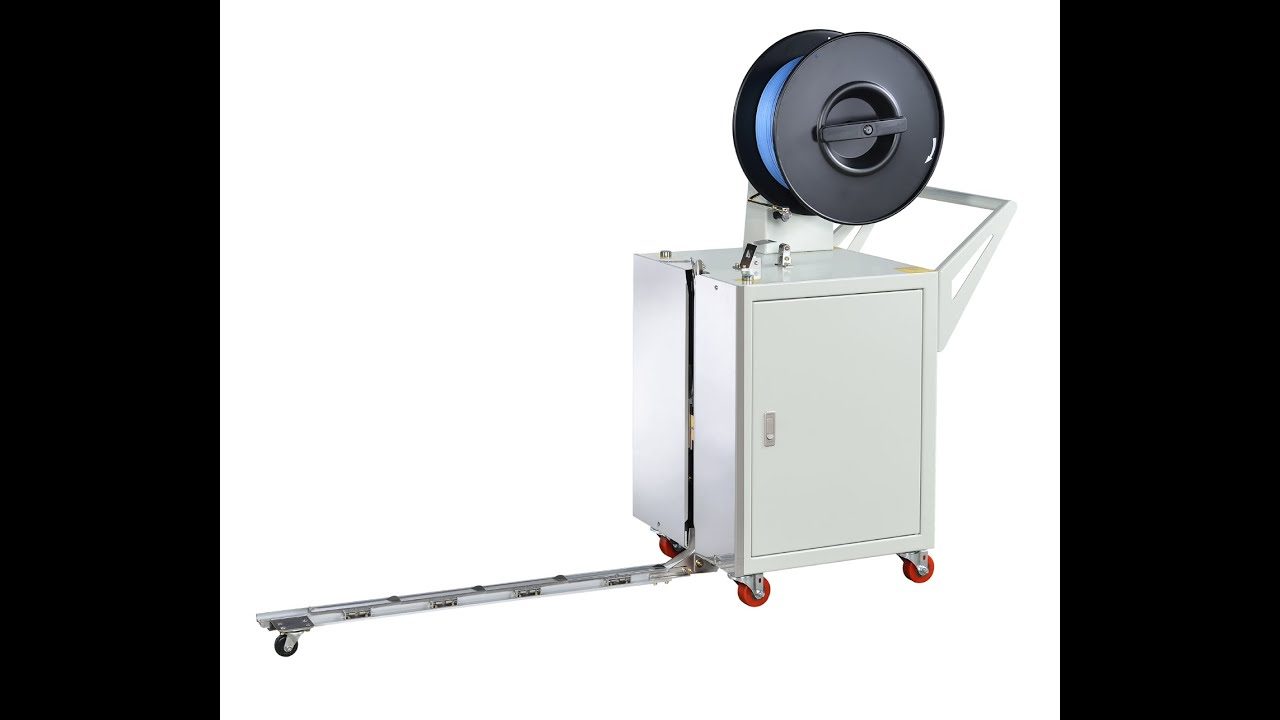

A key advantage of the JN-85PS is its movable construction, which allows the machine to be brought directly to the pallet rather than requiring the pallet to be positioned precisely at a fixed strapping station. This is particularly useful in working areas where cranes or other material-handling equipment have limited access.

The machine is equipped with PLC control and automatic strap-length control for convenient operation. It is available with different power supply configurations to suit installation requirements.

Key Features

• Semi-automatic pallet strapping machine
• Designed for securing palletized loads
• Movable design for flexible operation
• 1,000 mm standard arch
• Customized arch lengths available
• Maximum tension: 70 kg
• Strap width: 12–15 mm
• PP strap supported as standard
• PET strap supported as an option
• Adjustable internal tension control
• Automatic strap-length control
• PLC control
• Heat-sealing system
• Suitable for different pallet and load configurations

Typical Applications

The JN-85PS is suitable for warehousing, logistics, manufacturing, distribution centres, building materials, industrial products, cartons, and palletized goods that require secure strapping before storage or transportation.

It is particularly useful for operations handling different pallet sizes or loads in multiple locations, where a movable pallet strapping machine provides greater flexibility than a fixed strapping station.
