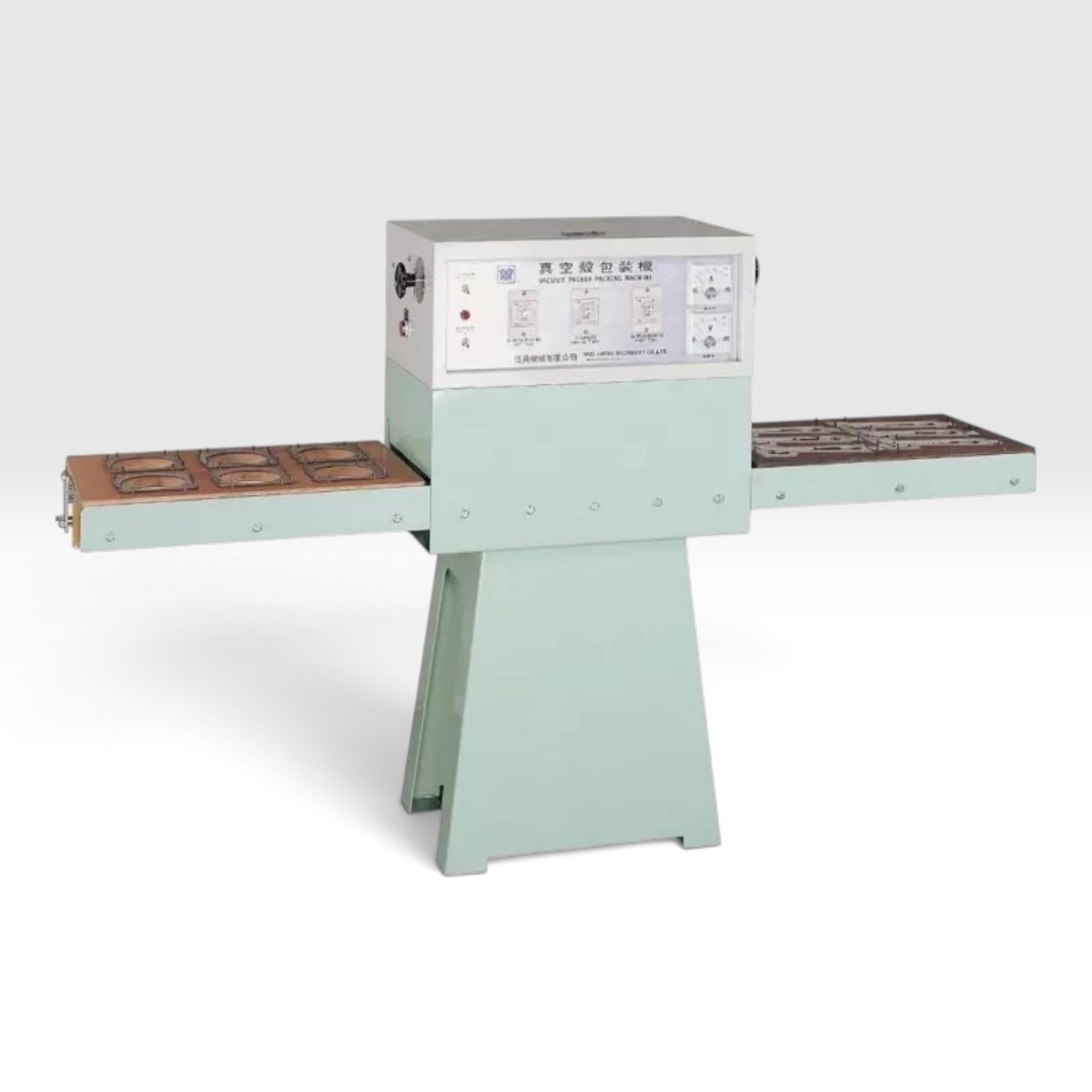

Reciprocating Type Blister-Shell Packer (BP-560 Series)
Model BP-560
Brand Wuu Sheng Machinery
Reciprocating Type Blister-Shell Packer
The Reciprocating Type series is used to heat-seal transparent blister-shells — made on a vacuum forming machine — onto exquisitely printed cardboard backing, creating finished blister-pack packaging. The machine heats the blister-shell and card together so they bond cleanly, giving products a retail-ready presentation.
Two heating methods are available across the series: impulse heating (instantaneous) and direct heating, so you can choose the method that best fits your production cycle and material.
Applications
Suitable for packing a wide range of products in blister-shell packaging, including hardware, electronic products, stationery, foods, ornaments, toys, and general necessities.
Specification
| BP-560 | BP-560H | BP-560A | |
|---|---|---|---|
| Heating Type | Impulse heating | Direct heating | Impulse heating |
| Molds | 1 or 2 | 1 or 2 | 1 or 2 |
| Mold Size | 380 x 600mm | 380 x 600mm | 380 x 600mm |
| Table Height | 760mm | 760mm | 760mm |
| Heating Time | 2–4 sec | 2–4 sec | 2–4 sec |
| Machine Size (L×W×H) | 1840 x 400 x 1190mm | 1840 x 400 x 1190mm | 1840 x 400 x 1190mm |
| Compressor | 4–6 kg/cm² | 4–6 kg/cm² | 4–6 kg/cm² |
| Power Source | 220V, 1-phase | 220V, 1-phase | 220V, 1-phase |
