Mercier Vacuum and Gas Flush Sealer (VG / VGD Series)

Model ME-VG series Brand Mercier Corporation

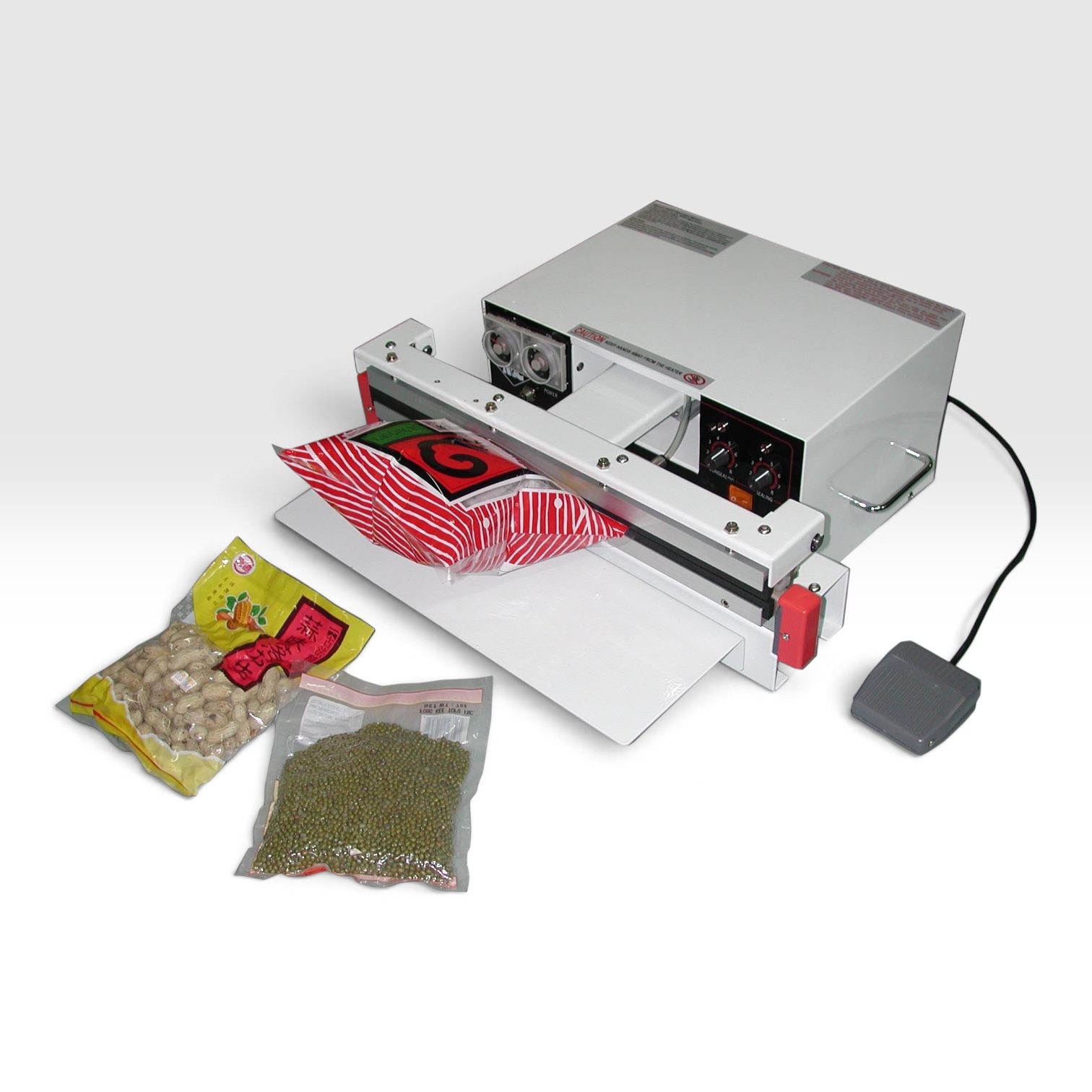

Mercier Vacuum and Gas Flush Sealer — VG / VGD Series

Vacuum packaging preserves food freshness and original flavor while providing essential protection against corrosion, moisture, dust, and rust. This model is ideal for a wide range of applications, including agricultural products, food, herbal medicine, electronics, and hardware components.

Featuring a compact, space-saving design, the machine is equipped with an integrated gas flushing system. By connecting a nitrogen cylinder, it can perform nitrogen injection to significantly enhance the freshness and moisture protection of food products and electronic components.

For high-density materials or aluminum foil bags, specialized double-sided (top and bottom) heating models are available (VGD series). Available in sealing widths of 5mm or 10mm. Requires use with an air compressor of 2HP or higher.

Key Features

  • Integrated gas flushing system — connects to a nitrogen cylinder to enhance freshness and moisture protection
  • Adjustable oscillating switch with two sequence modes: vacuum first → gas flush later, or gas flush first → vacuum later
  • Single-wire heating (VG) or top-and-bottom double-sided heating (VGD) for high-density materials and aluminum foil bags
  • Available in 5mm or 10mm seal widths
  • Compact, space-saving design
  • CE and RoHS certified

Applications

Suited for agricultural products, food, herbal medicine, electronics, and hardware components — with the VGD (double-sided heating) models especially suited to high-density materials and aluminum foil bags, and nitrogen flushing particularly valuable for extending shelf life of food and protecting moisture-sensitive electronics.

Note: requires an external air compressor (2HP or higher) and a nitrogen cylinder (for gas flushing) — neither is included with the machine.

Specification

455VG 4510VG 605VG 6010VG 455VGD 4510VGD 605VGD 6010VGD
Max. Seal Length 450mm (18") 450mm (18") 600mm (24") 600mm (24") 450mm (18") 450mm (18") 600mm (24") 600mm (24")
Seal Width 5mm 10mm 5mm 10mm 5mm 10mm 5mm 10mm
Power 1100W 1500W 1400W 1900W 1800W 2400W 2200W 2900W

CONSUMABLES FOR THIS MACHINE

PTFE Teflon Adhesive Tape
PTFE-Tape

PTFE Coated Fiberglass Fabric (Teflon Tape)

Adhesive-backed PTFE fiberglass tape offering a non-stick, easily-removable surface for sealer jaws and hot-wire components, rated for continuous use from -73°C to +260°C.

View this part →
