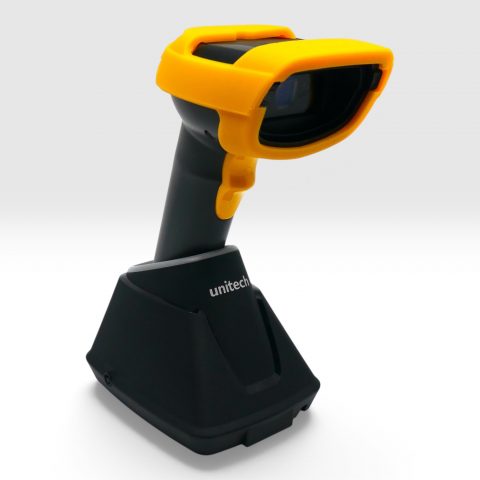

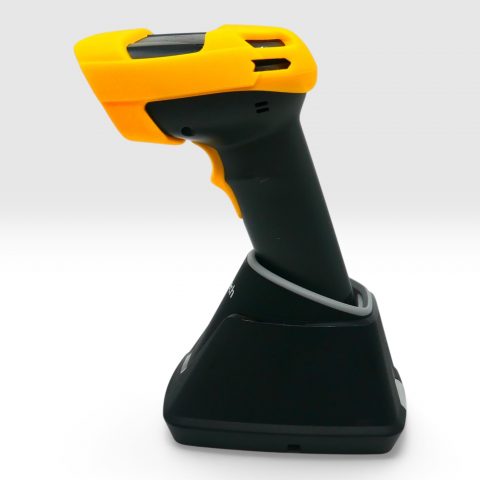

Unitech MS852B LR Bluetooth Ultra-Long-Range Scanner

Combining mobility and wireless design, the MS852B LR Bluetooth 2D imager scanner features superior performance with a scanning range up to 21m away from the spot. It enhances its value by supporting most 1D/2D barcodes and special barcode types, making it an ideal choice for environments where barcodes are difficult to reach — such as warehouses, yards, field service, and manufacturing facilities.

Wireless for Flexibility

The MS852B LR supports Bluetooth dual-mode technology (Bluetooth LE V4.2 & Bluetooth 2.1+EDR, Class 1), pairing easily with any smartphone, tablet, or computer, and transmitting data up to 100 meters from the base.

Superior Long-Range Scanning

Built with an advanced megapixel barcode sensor and excellent motion tolerance, the MS852B LR delivers fast scan speed even while moving. It captures barcodes from as close as 7.6cm on a poor-quality code, all the way out to 21m on a shelf item in a warehouse, and supports special symbologies such as OCR on passports and DotCode on tires or cigarette packaging.

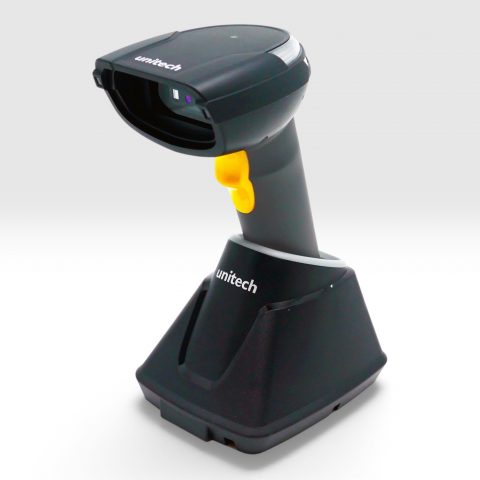

User-Friendly with Cradle Accessory

The scanner's cradle accessory supports auto Bluetooth pairing and automatically switches between trigger and presentation mode. When out of wireless range in Auto Mode, scanned data is saved to the internal memory buffer and transmitted to the host once back in coverage. It can also be set to batch mode, storing all scans in the buffer for upload at your convenience.

Key Features

• Superior scanning range up to 21m away
• Supports most 1D/2D barcodes on mobile screens, plus OCR and DotCode
• Wireless transmission range up to 100m in line of sight
• Bluetooth dual-mode technology (BLE V4.2 & Bluetooth 2.1+EDR, Class 1)
• Long battery life — up to 12 hours per full charge
• Excellent motion tolerance for reading barcodes while moving
• Long-lifecycle trigger — rated for up to 10,000,000 actuations

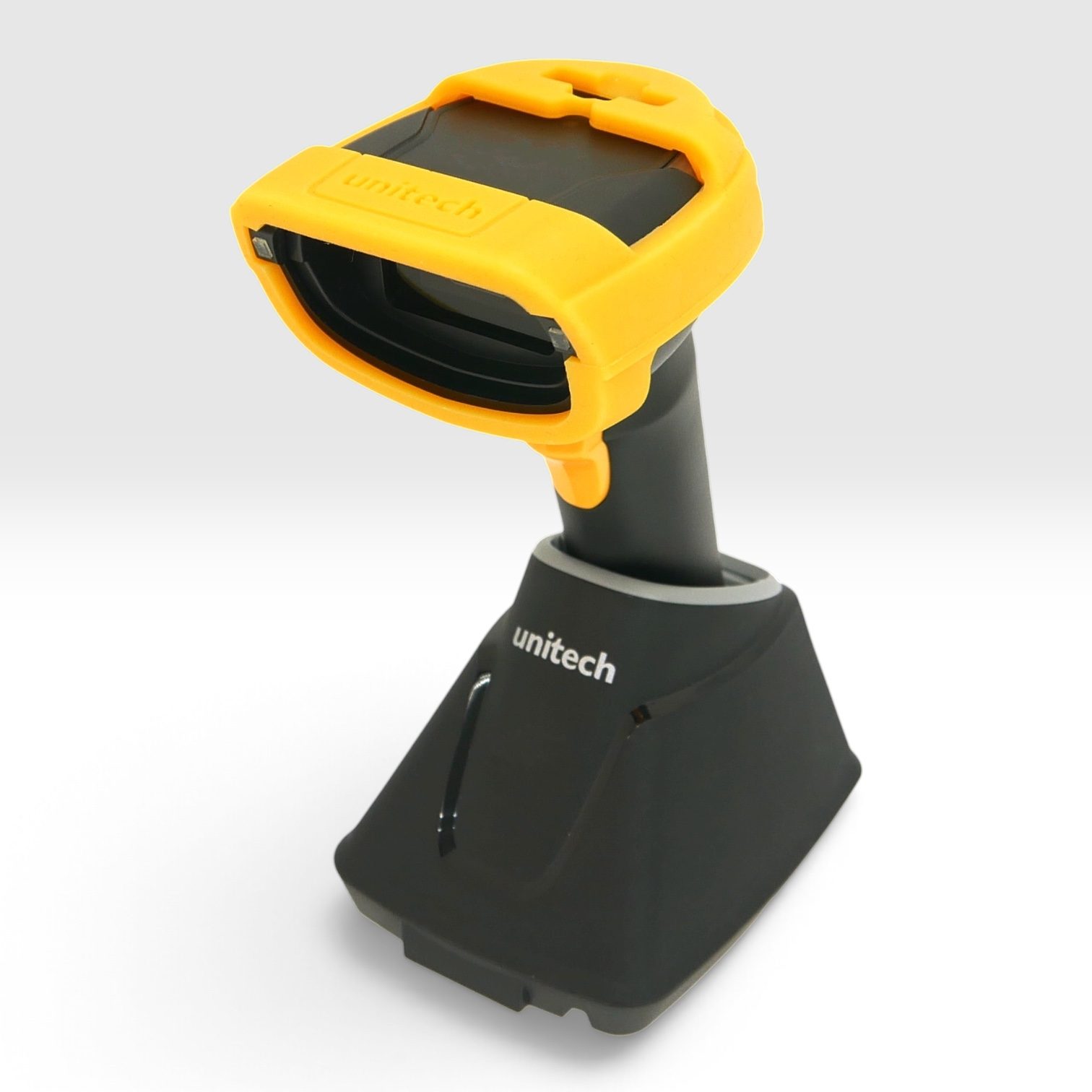

• Ultra-rugged design — IP42 and 1.8m drop (2.2m with dedicated protective case)
• Auto Bluetooth pairing / auto switch between trigger and presentation mode with cradle
• TAA Compliant — manufactured in Taiwan since 1979

Applications

Warehousing and field service — particularly well suited for scanning barcodes on high shelves, in yards, or otherwise out of easy reach in manufacturing facilities.

Available Accessories: 1-slot charging cradle, carrying bag, spare battery, standard hands-free stand, USB cable with ESD enhancement, protective case, 5V/2A adapter (US), 5V/2A adapter with universal plugs, desktop/wall mount stand.
