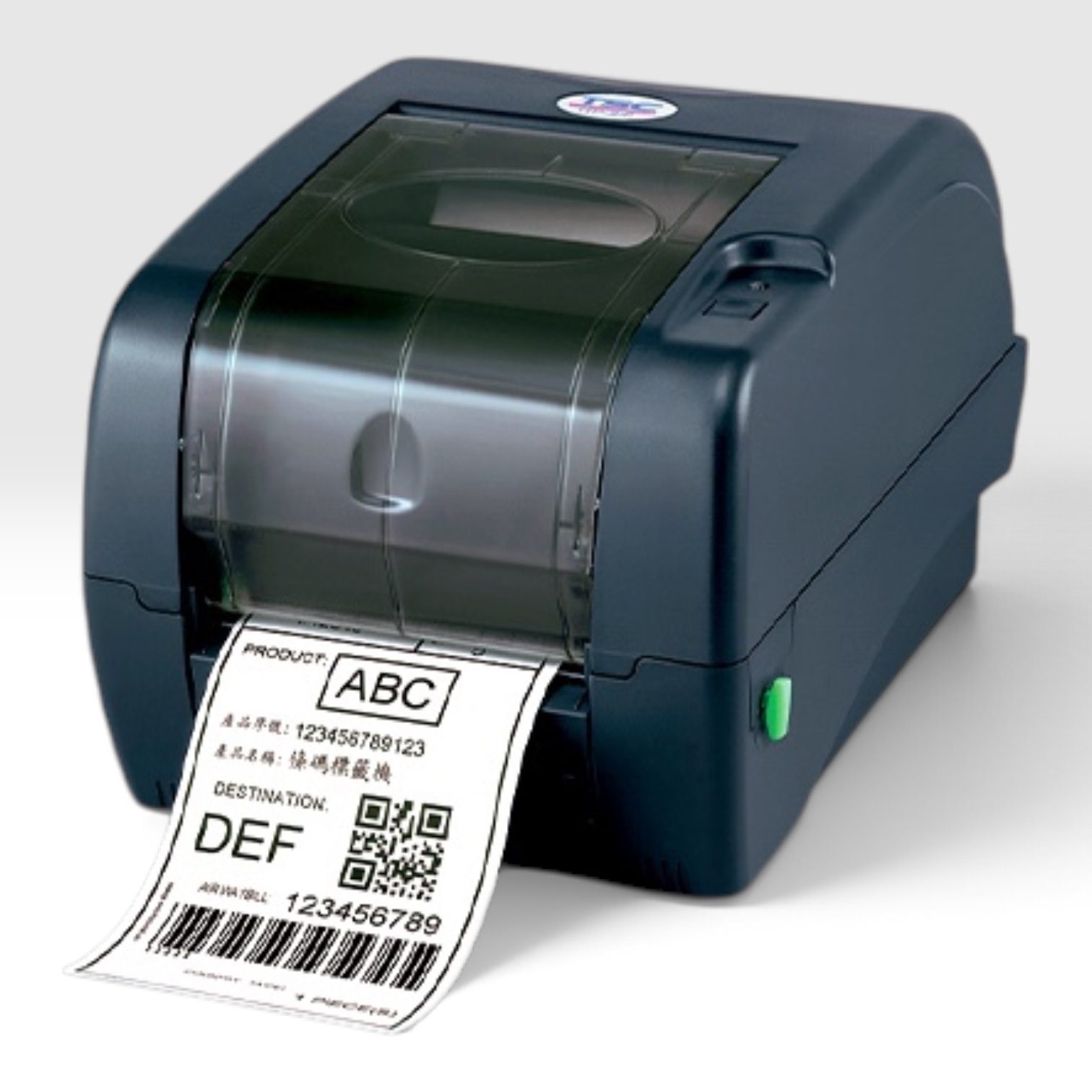

TSC TTP Series Desktop Barcode Printers (TTP-247 / TTP-345)

Model TSC TTP 247 Series Brand TSC Printers

The TTP-247 thermal transfer desktop barcode printer delivers high performance at an affordable price. Based on the design of its best-selling predecessor, the TTP-245 Plus, the TTP-247 runs at an impressive 7 inches per second, printing up to 4 inches wide at 203 dpi resolution.

The TTP-345 is the high-resolution model in the series, offering 300 dpi printing at 5 inches per second — ideal for smaller text, dense barcodes, or fine graphic detail. Both models offer 8MB of SDRAM and 4MB of onboard Flash memory, expandable with gigabytes of additional storage via an onboard SD card reader.

Key Features

High print speed: 7 ips on the TTP-247 (203 dpi)
High-resolution printing: 300 dpi on the TTP-345, for small text and dense barcodes
Expandable storage via onboard SD card reader (up to 4GB)
300-meter ribbon capacity keeps daily and lifetime operating costs low
TTP-345 supports an optional guillotine cutter (full-cut or partial-cut)
Durable, reliable construction built for daily production use

Applications

Shipping and receiving, compliance labeling, asset tracking, inventory control, document management, shelf labeling, product marking, specimen labeling, and patient tracking — across manufacturing, retail, and healthcare settings. The TTP-247 has notably been used in agricultural weight-measurement applications, such as banana farm labeling.

Request a quote Book a demo

Specification

	TTP-247	TTP-345
Print Resolution	203 dpi (8 dots/mm)	300 dpi (12 dots/mm)
Print Method	Direct thermal / thermal transfer	Direct thermal / thermal transfer
Display	LED with buttons	LED with buttons
Max. Print Speed	7 ips (178mm/s)	5 ips (127mm/s)
Max. Print Width	4.25" (108mm)	40" (1,016mm)
Max. Print Length	90" (2,286mm)	40" (1,016mm)
RAM	8 MB SDRAM	8 MB SDRAM
Flash	4 MB	4 MB
Expandable Flash	SD card reader, up to 4GB	SD card reader, up to 4GB
Keyboard	Standalone keyboard	Standalone keyboard
Optional Cutter	N/A	Guillotine cutter (full-cut or partial-cut)
Internal Label Capacity	4.33" (110mm) OD	5" (127mm) OD
Max. Media Width	1.0"–4.4" (25.4–112mm)	0.79"–4.4" (20–112mm)
Media Types	Continuous, die-cut, black mark, fan-fold, notched (outside wound)	Continuous, die-cut, black mark, fan-fold, notch (outside wound)
Max. Ribbon Length	300 meters	300 meters
Max. Ribbon Width	1.6"–4.3" (40–110mm)	1.6"–4.3" (40–110mm)
Media Core Diameter	1"–3" (25.4–76.2mm)	1"–3" (25.4–76.2mm)
Hardwire Connectivity	Parallel port, Serial RS-232, USB	Parallel port, Serial RS-232, USB
Optional Connectivity	Ethernet, Parallel port, Serial RS-232, USB	Ethernet, Parallel port, Serial RS-232, USB
Enterprise Management	TSC Console	TSC Console
Programming Language	TSPL-EZD	TSPL-EZD
Construction	Clamshell with double-walled plastic	Clamshell with double-walled plastic
Machine Dimension	213 mm (W) x 188 mm (H) x 314 mm (D)	213 mm (W) x 188 mm (H) x 314 mm (D)

CONSUMABLES FOR THIS MACHINE

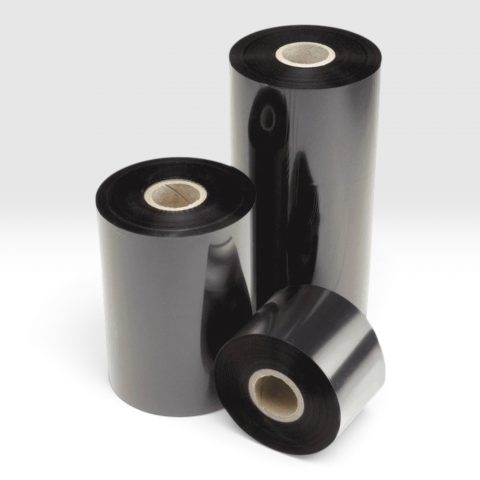

Thermal Ribbon
