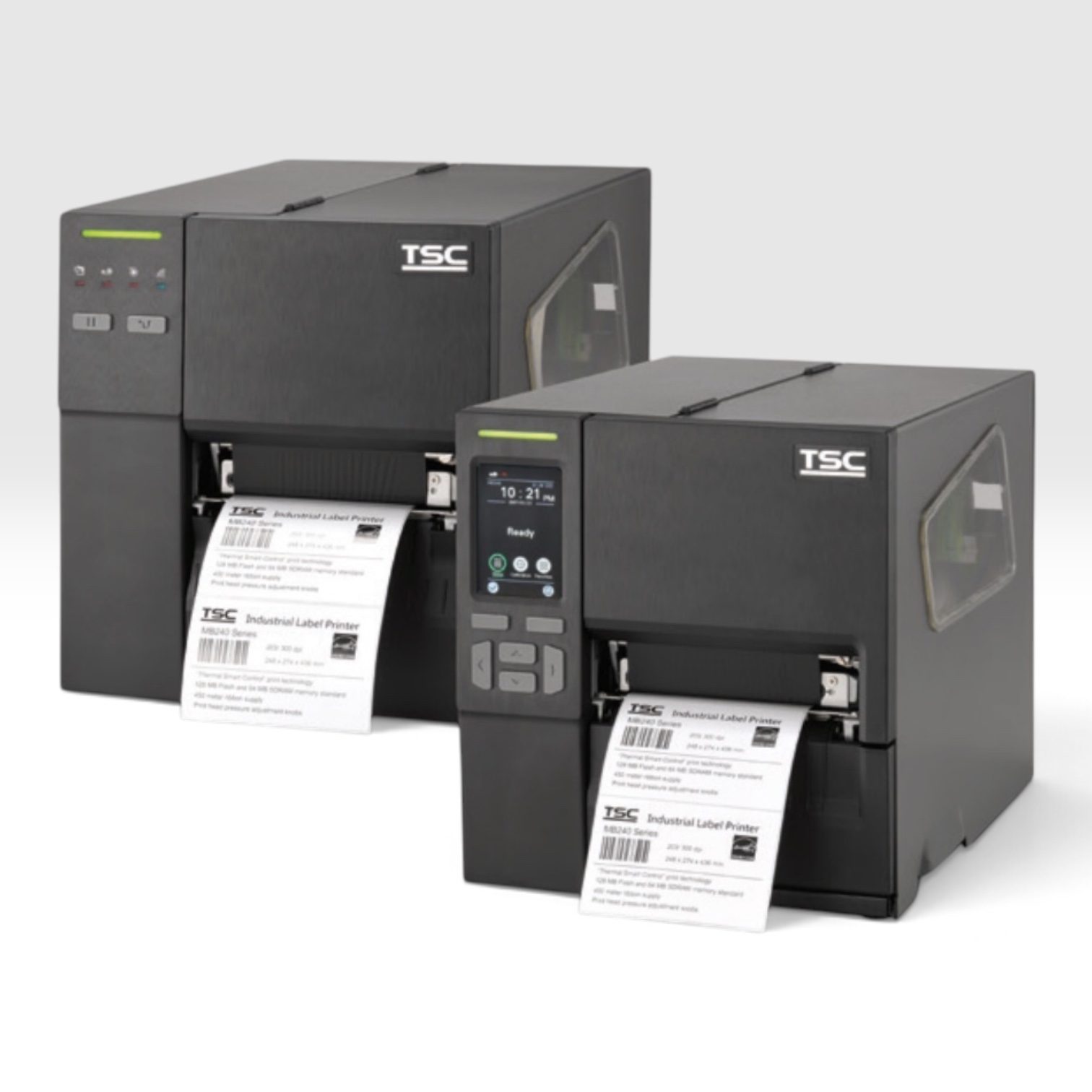

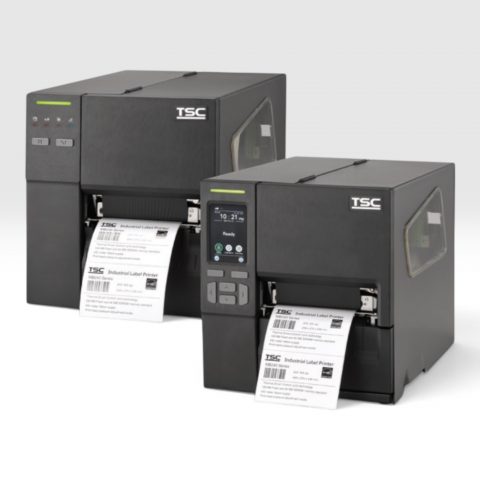

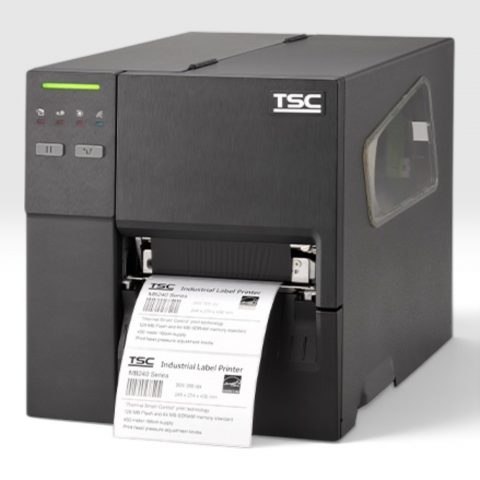

TSC MB240 Series Industrial Thermal Transfer Printer

Model TSC MB240 Series Brand TSC Printers

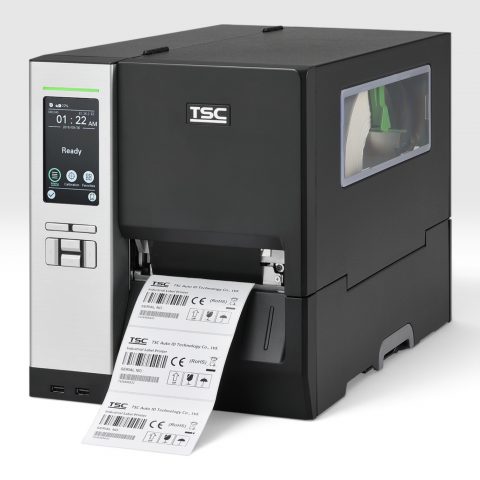

TSC's MB240 series of industrial thermal label printers is the new value leader for 4" wide light industrial label printing, designed to fit alongside TSC's bigger industrial printer models including the MH240 and MX240P series. The MB240 features a small footprint, an easily understandable operator interface, and a full set of options to meet nearly every printing application.

Its compact design, quiet operation, and fast label throughput make it equally at home in the office or on the shop floor. The printer's all-metal construction and die-cast aluminum print mechanism engine are durable enough to withstand the toughest production environments, built for years of trouble-free use.

Key Features

Small footprint & rugged design — 39% lighter and 30% smaller than TSC's TTP-246M Pro

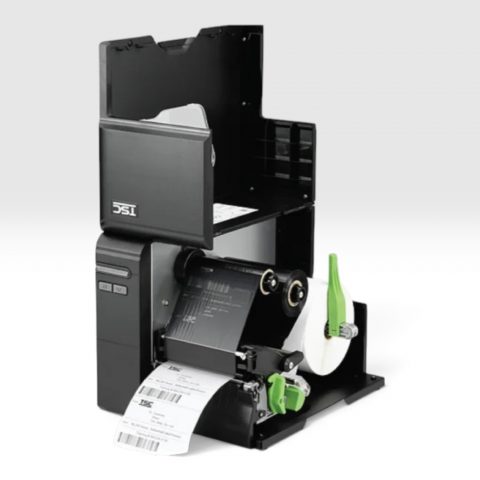

Flexible & advanced TPH mechanism — adjustable TPH pressure and heat line, reinforced TPH module hook, and a wide open angle for easy media handling

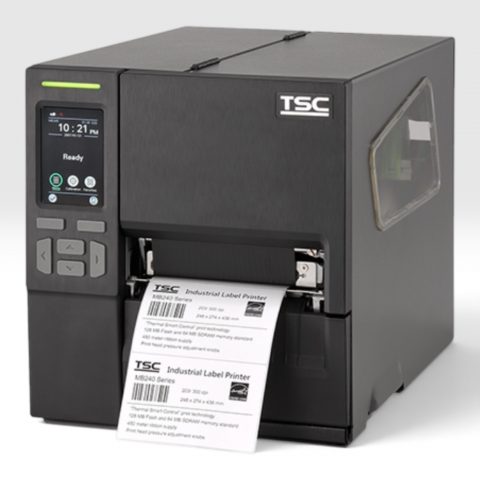

3.5" intuitive color touch display (T models) — easy-to-use color GUI display with intuitive status indicators
Versatile connectivity — standard USB, USB Host, Serial, and internal Ethernet; optional 802.11 a/b/g/n wireless or internal Bluetooth 4.2 MFi
One-step quick setup — scan a 1D/2D barcode to set up or clone printer configurations in a single step
Die-cast based print mechanism with a metal cover and large clear media view window
Standard real-time clock
TSPL-EZD printer language, compatible with EPL, ZPL, ZPL II, and DPL
1-year printer warranty

Applications

Manufacturing — work in process, product marking, compliance labeling, industrial-duty printing
Warehouse & Logistics — packing, order fulfillment, shipping/receiving, inventory management
Retail — product labels, event ticketing

Request a quote Book a demo

Specification

	MB240	MB340	MB240T	MB340T
Print Resolution	203 dpi (8 dots/mm)	300 dpi (12 dots/mm)	203 dpi (8 dots/mm)	300 dpi (12 dots/mm)
Printing Method	Thermal transfer & direct thermal	Thermal transfer & direct thermal	Thermal transfer & direct thermal	Thermal transfer & direct thermal
Max. Print Speed	304.8mm (12")/sec	228.6mm (9")/sec	304.8mm (12")/sec	228.6mm (9")/sec
Max. Print Width	107mm (4.21")	105.7mm (4.16"	107mm (4.21")	105.7mm (4.16"
Max. Print Length	25,400mm (1000")	11,430mm (450")	25,400mm (1000")	11,430mm (450")
Weight	9kg (19.84 lbs)	9kg (19.84 lbs)	9.2kg (20.28 lbs)	9.2kg (20.28 lbs)
LED/LCD	4 icon indicators, 1 status indicator	4 icon indicators, 1 status indicator	3.5" touch HVGA color LCD, 1 status indicator	3.5" touch HVGA color LCD, 1 status indicator
Operation Buttons	2 (Pause, Feed)	2 (Pause, Feed)	6 (Menu, Pause/Feed, Up, Down, Left, Right)	6 (Menu, Pause/Feed, Up, Down, Left, Right)
Label Length	5–25,400mm (0.2"–1000")	5–11,430mm (0.2"–450")	5–25,400mm (0.2"–1000")	5–11,430mm (0.2"–450")
Enclosure	Die-cast based print mechanism, metal cover with large clear media view window	Die-cast based print mechanism, metal cover with large clear media view window	Die-cast based print mechanism, metal cover with large clear media view window	Die-cast based print mechanism, metal cover with large clear media view window
Machine Dimension	248mm (W) x 274mm (H) x 436mm (D)	248mm (W) x 274mm (H) x 436mm (D)	248mm (W) x 274mm (H) x 436mm (D)	248mm (W) x 274mm (H) x 436mm (D)
Label Roll Capacity	203.2mm (8") O.D.	203.2mm (8") O.D.	203.2mm (8") O.D.	203.2mm (8") O.D.
Ribbon	450m long, max. O.D. 81.3mm, 1" core (ink coated outside or inside)	450m long, max. O.D. 81.3mm, 1" core (ink coated outside or inside)	450m long, max. O.D. 81.3mm, 1" core (ink coated outside or inside)	450m long, max. O.D. 81.3mm, 1" core (ink coated outside or inside)
Ribbon Width	40–110mm (1.6"–4.3")	40–110mm (1.6"–4.3")	40–110mm (1.6"–4.3")	40–110mm (1.6"–4.3")
Processor	32-bit RISC CPU	32-bit RISC CPU	32-bit RISC CPU	32-bit RISC CPU
Memory	128 MB Flash / 128 MB SDRAM	128 MB Flash / 128 MB SDRAM	128 MB Flash / 128 MB SDRAM	128 MB Flash / 128 MB SDRAM
Interface	RS-232, USB 2.0, internal Ethernet (10/100 Mbps), USB Host (scanner/PC keyboard)	RS-232, USB 2.0, internal Ethernet (10/100 Mbps), USB Host (scanner/PC keyboard)	RS-232, USB 2.0, internal Ethernet (10/100 Mbps), USB Host (scanner/PC keyboard)	RS-232, USB 2.0, internal Ethernet (10/100 Mbps), USB Host (scanner/PC keyboard)
Power	Internal universal switching PSU — Input: AC 100–240V, 2.0A, 50–60Hz / Output: DC 24V, 3.75A, 90W	Internal universal switching PSU — Input: AC 100–240V, 2.0A, 50–60Hz / Output: DC 24V, 3.75A, 90W	Internal universal switching PSU — Input: AC 100–240V, 2.0A, 50–60Hz / Output: DC 24V, 3.75A, 90W	Internal universal switching PSU — Input: AC 100–240V, 2.0A, 50–60Hz / Output: DC 24V, 3.75A, 90W
Sensors	Gap transmissive (adjustable), black mark reflective (adjustable), ribbon encoder, ribbon end, head open	Gap transmissive (adjustable), black mark reflective (adjustable), ribbon encoder, ribbon end, head open	Gap transmissive (adjustable), black mark reflective (adjustable), ribbon encoder, ribbon end, head open	Gap transmissive (adjustable), black mark reflective (adjustable), ribbon encoder, ribbon end, head open
Real-Time Clock	Standard	Standard	Standard	Standard
Printer Language	TSPL-EZD (compatible with EPL, ZPL, ZPL II, DPL)	TSPL-EZD (compatible with EPL, ZPL, ZPL II, DPL)	TSPL-EZD (compatible with EPL, ZPL, ZPL II, DPL)	TSPL-EZD (compatible with EPL, ZPL, ZPL II, DPL)
Media Type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)	Continuous, die-cut, black mark, fan-fold, notched (outside wound)	Continuous, die-cut, black mark, fan-fold, notched (outside wound)	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media Width	20–120mm (0.8"–4.7")	20–120mm (0.8"–4.7")	20–120mm (0.8"–4.7")	20–120mm (0.8"–4.7")
Media Thickness	0.06–0.28mm (2.36–11 mil)	0.06–0.28mm (2.36–11 mil)	0.06–0.28mm (2.36–11 mil)	0.06–0.28mm (2.36–11 mil)
Media Core Diameter	25.4–76.2mm (1"–3")	25.4–76.2mm (1"–3")	25.4–76.2mm (1"–3")	25.4–76.2mm (1"–3")
