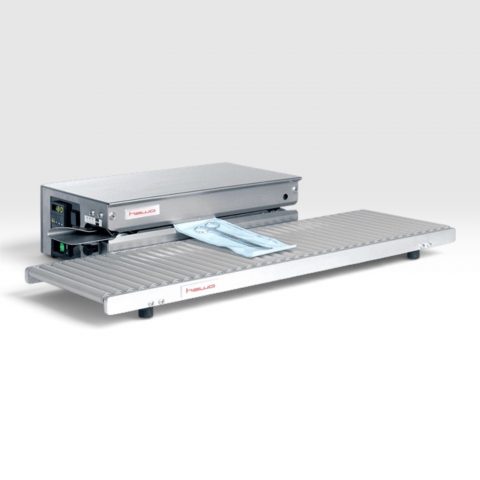

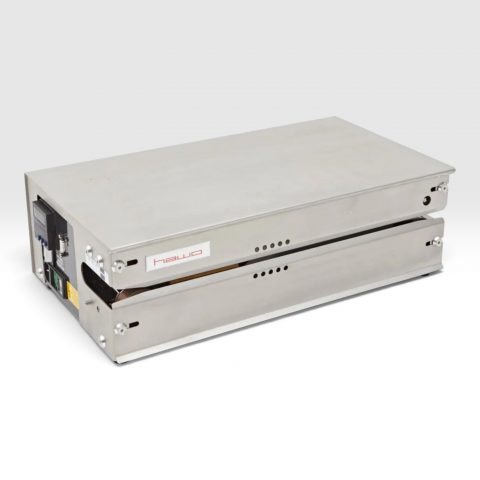

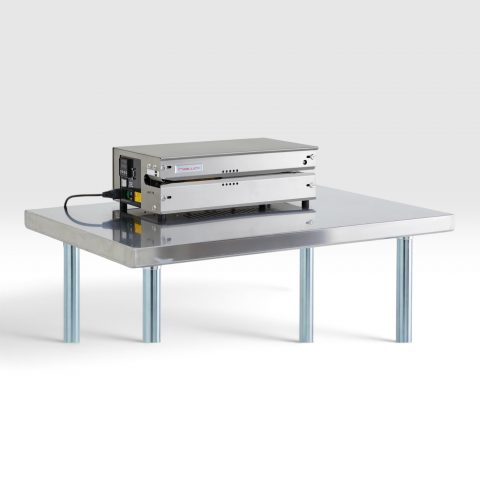

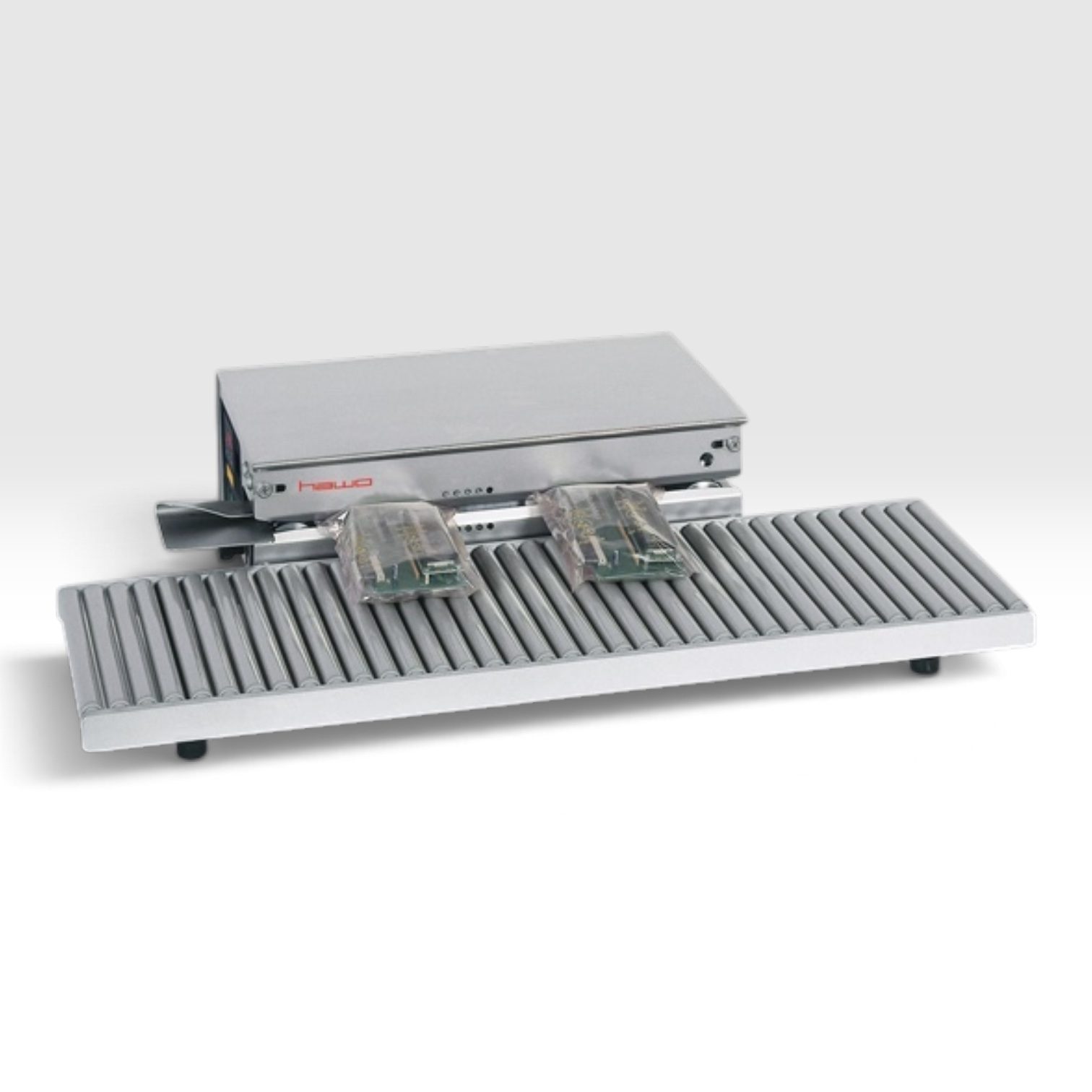

Hawo hpl 500 D Band Sealer

Hawo hpl 500 D Band Sealer

The hpl 500 D is a band sealer ideal for sealing a wide range of industrial products with thermoplastic polymer films (without a contact pressure system), as well as compostable and biodegradable materials such as ORGANIXprotect. Packaging with the hpl 500 D offers maximum protection for the packaged item during transport and storage, complying with the strictest safety standards.

As a "V" (validation-compatible process) model, the hpl 500 D-V monitors the critical process parameters of temperature and speed (dwell), making the sealing process validatable. It also features an RS 232 interface for connection to external documentation systems.

With a 6mm-wide sealing seam, it's also well suited for packaging medical products in thermoplastic film (such as header bags) — though it is not suitable for packaging in accordance with ISO 11607-1 (EN 868-4, 5, 9, 10). Rotary mode runs at a constant speed of 10 m/min (33 ft/min), achieving a high throughput rate.

Key Features

• DocLink communication — standard interface for bidirectional communication, integrating into existing process and batch documentation infrastructure
• Validatable process (V) — integrated function for regulating and monitoring process parameters (temperature and speed/dwell), supporting validation per ISO 11607-2 and the ISO/DTS 16775 Technical Specification draft, in line with international packaging validation guidelines
• Continuous rotary sealing — constant 10 m/min throughput speed
• 6mm sealing seam width, suited to thermoplastic film packaging including header bags
• Compatible with compostable/biodegradable film materials (e.g., ORGANIXprotect)

Applications

Packaging of medical products, implants, medicines, and pharmaceutical products of all kinds (e.g., header bags), spare parts across industries, industrial products, office supplies, foods, transport packaging for medical products, laboratory products, commercial products in wholesale or retail, and animal nutrition.
