Sealing & Closing / Hand Sealers

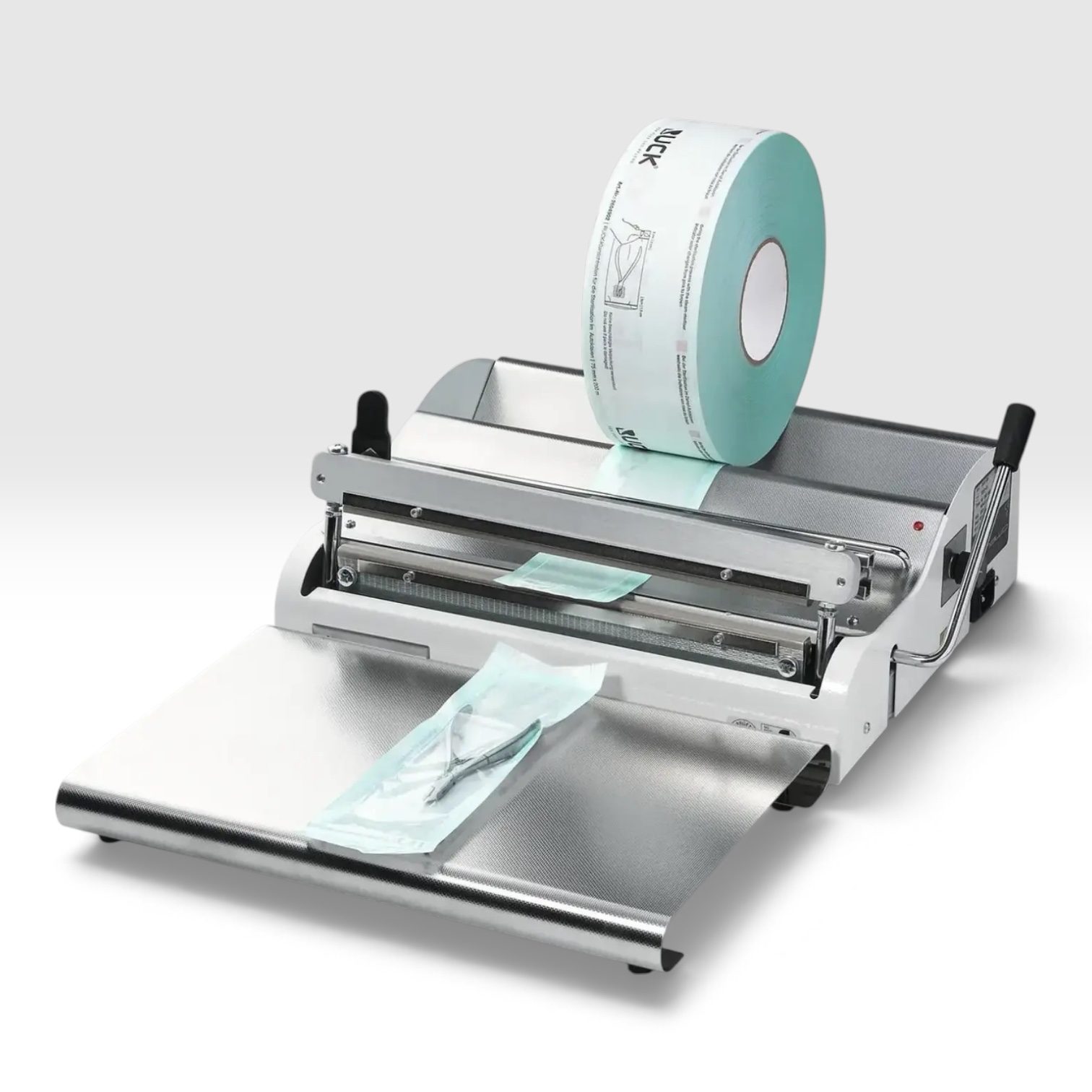

Hawo Bar Sealer hd 260/270/470 MS

Model hd 260MS Brand Hawo GmbH

Hawo hd 260 MS / hd 270 MS / hd 470 MS — The Basic Line

The hd 260 MS, hd 270 MS, and hd 470 MS are hawo's most economical bar sealers for packaging sealable pouches and reels, as well as thermoplastic film. Thanks to the adjustable sealing timer, the devices can be easily adapted to the material being sealed. They're ideally suited for use in smaller institutions and tattoo studios.

Key Features

  • Compact design — integrated roll holder and manual cutting device
  • No heat-up time — impulse sealing system; the hd 260 MS has no energy consumption at all when not in use, while the hd 270 MS and hd 470 MS draw power only for the digital display
  • High value for money
  • Automatic sealing time control avoids inadequate sealing seams
  • Suitable for hot air sterilization film (on request for hd 260 MS; standard for hd 270 MS and hd 470 MS)
  • hd 470 MS — extra-wide device for sealing seams up to 450mm
  • Strong, clean seals — 8mm sealing seam width, high seal strength with excellent peeling properties and no paper shredding, even if peeled open in the wrong direction
  • Easy operation — insert the sterilization packaging, push down the hand lever to start sealing, cut with the manual cutting device, and a signal sounds once sealing time has elapsed
  • Low maintenance — wearing parts are easily replaced by the user, with very low part turnover and no need to exchange expensive modules
  • Optional accessories — storage tray (hd 260 T), InkTest/InkTest PRO (dye penetration test), and Seal Check dent (defect indicator strip)

Applications

Suitable for packaging sealable paper bags (EN ISO 11607-1/EN 868-4), sealable pouches and reels made of film and paper (EN ISO 11607-1/EN 868-5, per EN 868-3), and hot air sterilization film. Well suited for medical and dental practices, smaller healthcare institutions, and tattoo/piercing studios. Note: not suitable for gusseted pouches and reels.

Specification

hd 260 MS hd 270 MS hd 470 MS
Power Source 115/230V, 50/60Hz, 870 VA 115/230V, 50/60Hz, 870 VA 115/230V, 50/60Hz, 870 VA
Machine Dimension 400mm(W) x 310mm(D) x 220mm(H) 400mm(W) x 310mm(D) x 220mm(H) 555mm(W) x 310mm(D) x 220mm(H)
Machine Weight 8.5kg (18.7 lbs) 8.5kg (18.7 lbs) 11kg (24.2 lbs)
Casing Stainless steel AISI 304 Stainless steel AISI 304 Stainless steel AISI 304
Sealing System Impulse Impulse Impulse
Sealing Seam Width 8mm 8mm 8mm
Sealing Seam / Cutting Width 250mm (9.8") 250mm (9.8") 450mm (17.7")
Integrated Roll Holder & Cutting Device Yes Yes Yes
Microprocessor Control Yes Yes Yes
Display No 7-segment display 7-segment display
Piece Counter No Yes Yes
Timer Control Potentiometer (analog dial) Digital display Digital display
Hot Air Sterilization Film On demand Standard Standard
