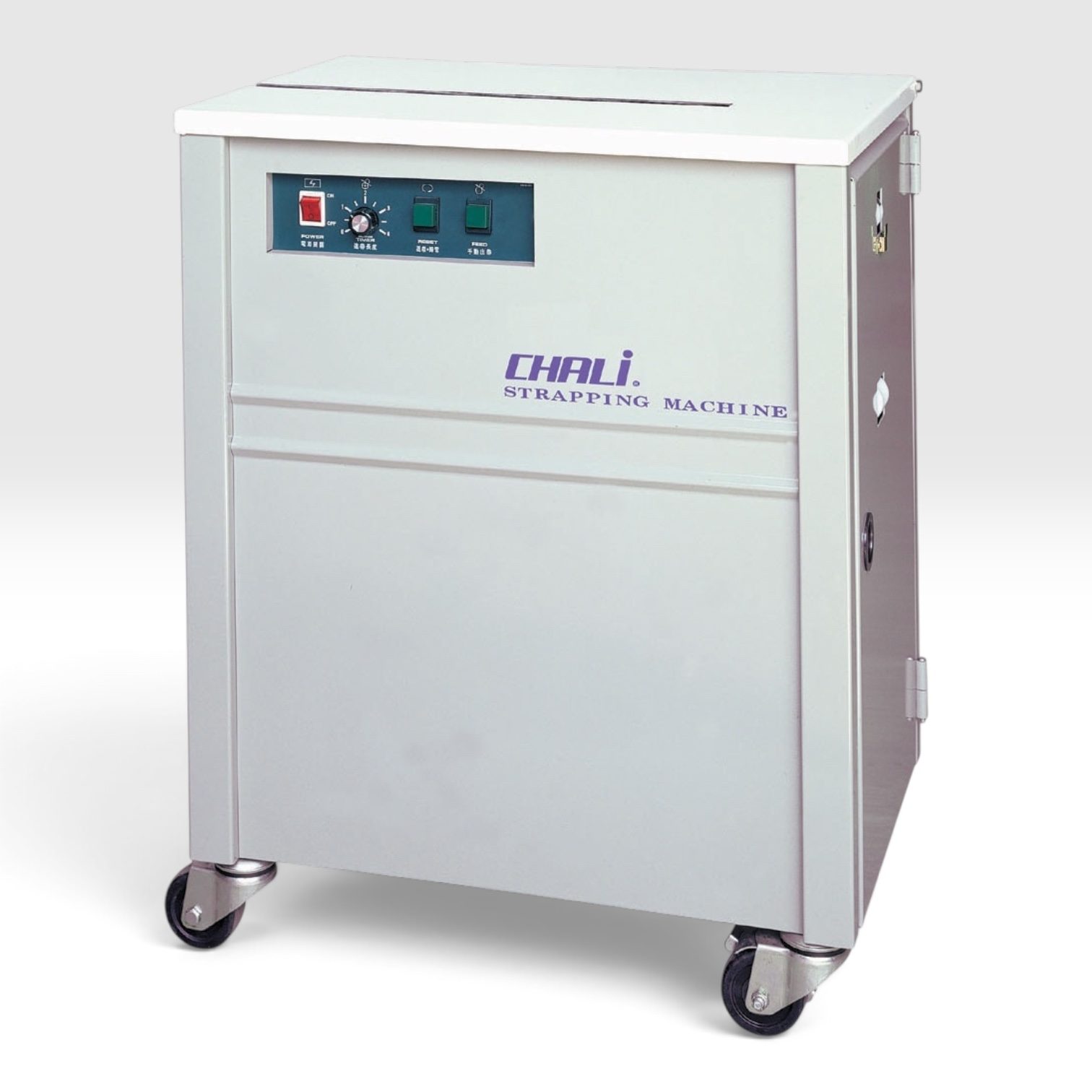

Semi-Auto Strapping Machine JN-7MINI-B (Mini Type)

Semi-Automatic Mini Strapping Machine CHALI JN-7MINI-B

The CHALI JN-7MINI-B is a compact semi-automatic strapping machine designed for businesses that require reliable package strapping while working with limited floor space. Its small footprint makes it particularly suitable for smaller packaging areas, retail operations, workshops, warehouses, and businesses with moderate strapping requirements.

The machine completes a strapping cycle in approximately 1.5 seconds and provides adjustable tension from 15 to 45 kg, allowing operators to set the appropriate strap tension according to the package and application. The machine uses heat sealing to securely join the strap after tensioning.

The external mechanical tension knob allows quick and convenient adjustment of the required tension force, while the strap-width guides make it easy to change between different strap widths from 6 to 15 mm. This provides flexibility for different carton and package sizes.

An integrated energy-saving function automatically stops the motor after 15–60 seconds of inactivity while allowing immediate operation when required. This helps reduce unnecessary energy consumption during intermittent packaging operations.

Maintenance is also simplified through the lift-type tabletop and independent PCB design, which provides easier access to internal components and helps isolate electrical faults for faster troubleshooting.

The JN-7MINI-B incorporates a 24V DC internal power system to improve operator safety and help prolong the machine's service life.

Key Features

• Compact design for space-constrained workplaces
• Semi-automatic strapping operation
• 1.5-second strapping cycle
• Adjustable tension: 15–45 kg
• Supports 6–15 mm strapping bands
• Heat sealing system
• External mechanical tension adjustment
• Easy strap-width adjustment
• Energy-saving motor stop function
• Lift-type tabletop for convenient maintenance
• Independent PCB design for easier troubleshooting
• 24V DC internal power system
• 110/220V, single-phase power supply

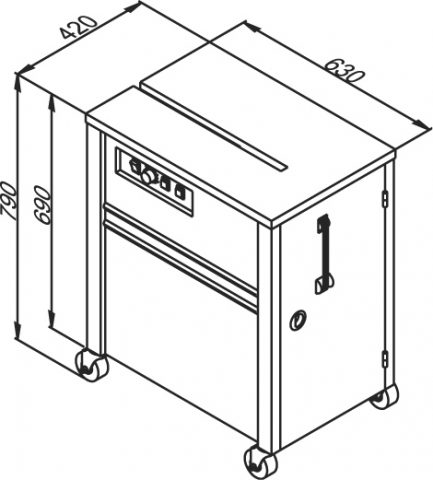

• Compact dimensions: 630 × 420 × 790 mm
• Machine weight: 72 kg

Typical Applications

The JN-7MINI-B is suitable for cartons, boxes, printed materials, e-commerce packages, warehouse goods, retail products, and general industrial packaging. Its compact design makes it particularly useful for small packaging areas, workshops, retail operations, and businesses where floor space is limited.
