ZAPAK Strapping Tool ZP90A

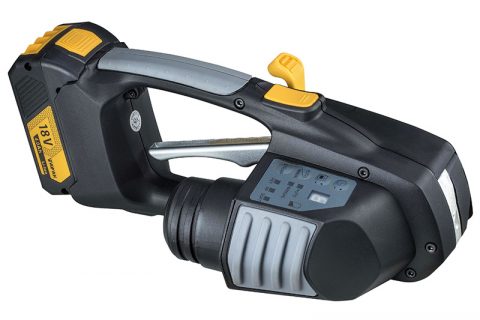

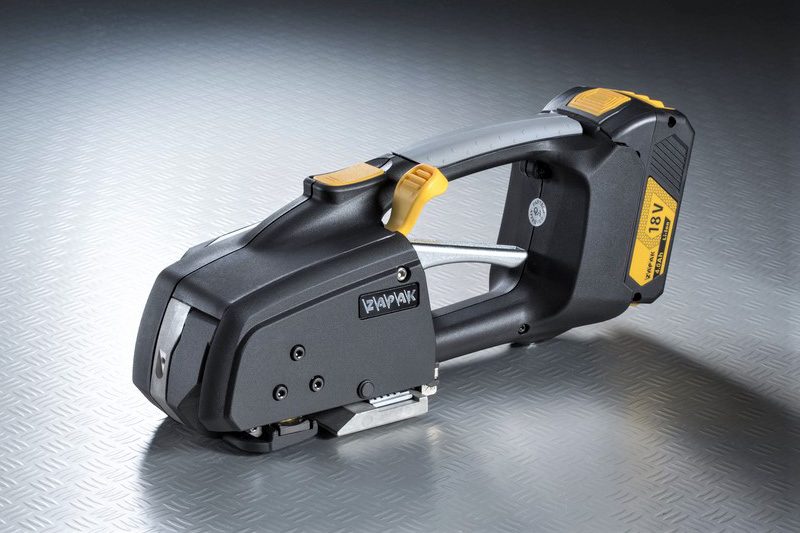

Battery-Powered Strapping Tool ZAPAK ZP90A

The ZAPAK ZP90A Battery-Powered Strapping Tool is a lightweight and ergonomic handheld solution designed for efficient strapping of cartons, packages, and palletized goods. Its cordless design allows operators to strap products directly at their location without being restricted by a fixed machine or power cable.

The ZP90A combines automatic tensioning, friction welding, and strap cutting into a single operation. With single-handed operation, the tool helps simplify the strapping process and reduce operator effort, making it suitable for repetitive packaging applications.

Powered by a Li-ion battery and ZAPAK's patented brushless motor, the ZP90A is designed for reliable operation and long service life. At approximately 3.4 kg including the battery, its lightweight construction helps reduce operator fatigue during frequent strapping operations.

The tool is suitable for PP and PET strapping with widths from 9 to 13 mm and thicknesses from 0.50 to 0.85 mm. Adjustable tension ranges from 15 to 120 kg, allowing the operator to select an appropriate tension level according to the package and application. A soft tension mode is also available for lighter or more fragile products.

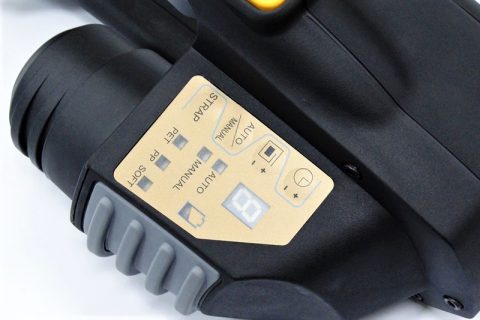

A pre-programmed touch panel provides convenient control of operating parameters, while the adjustable strap guides allow the tool to accommodate different strap widths. The rear roller is designed to help prevent scratches or damage to the surface of the strapped product.

The ZP90A can be used for both horizontal and vertical strapping, making it suitable for cartons, palletized goods, and products with different strapping orientations. Its portable design makes it particularly useful where products are too large or impractical to bring to a fixed strapping machine.

Key Features

• Battery-powered cordless operation
• Single-handed operation
• Automatic tensioning, friction welding, and cutting
• Lightweight design: approximately 3.4 kg including battery
• Brushless motor technology
• Adjustable tension: 15–120 kg
• Soft tension mode for light or fragile products
• Suitable for PP and PET strap
• Strap width: 9–13 mm
• Strap thickness: 0.50–0.85 mm
• Pre-programmed digital touch panel
• Adjustable strap-width guides
• Self-changeable wearing parts
• Rear roller designed to help prevent surface scratches
• Suitable for horizontal and vertical strapping
• Optional tool hanger available
• CE and RoHS compliant
• Li-ion battery complies with UN38.3 requirements

Typical Applications

The ZP90A is suitable for carton strapping, pallet strapping, logistics, warehousing, manufacturing, e-commerce fulfilment, furniture, industrial products, and general packaging applications.

It is particularly useful for large or bulky products and palletized loads where a stationary strapping machine is inconvenient. Its cordless design allows operators to move freely around the package and apply straps wherever required.
