Automatic Bagging & Counting / Pre-opened Bag-on-roll Packing

WERDEN Automatic Packing Machine WAP-100S (Pre-opened Bag on Roll)

Model WAP-100S Brand WERDEN

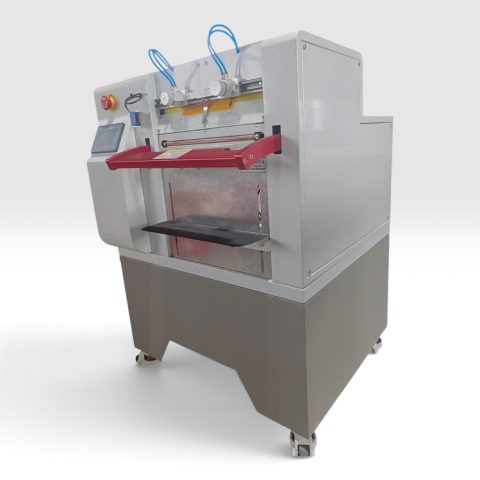

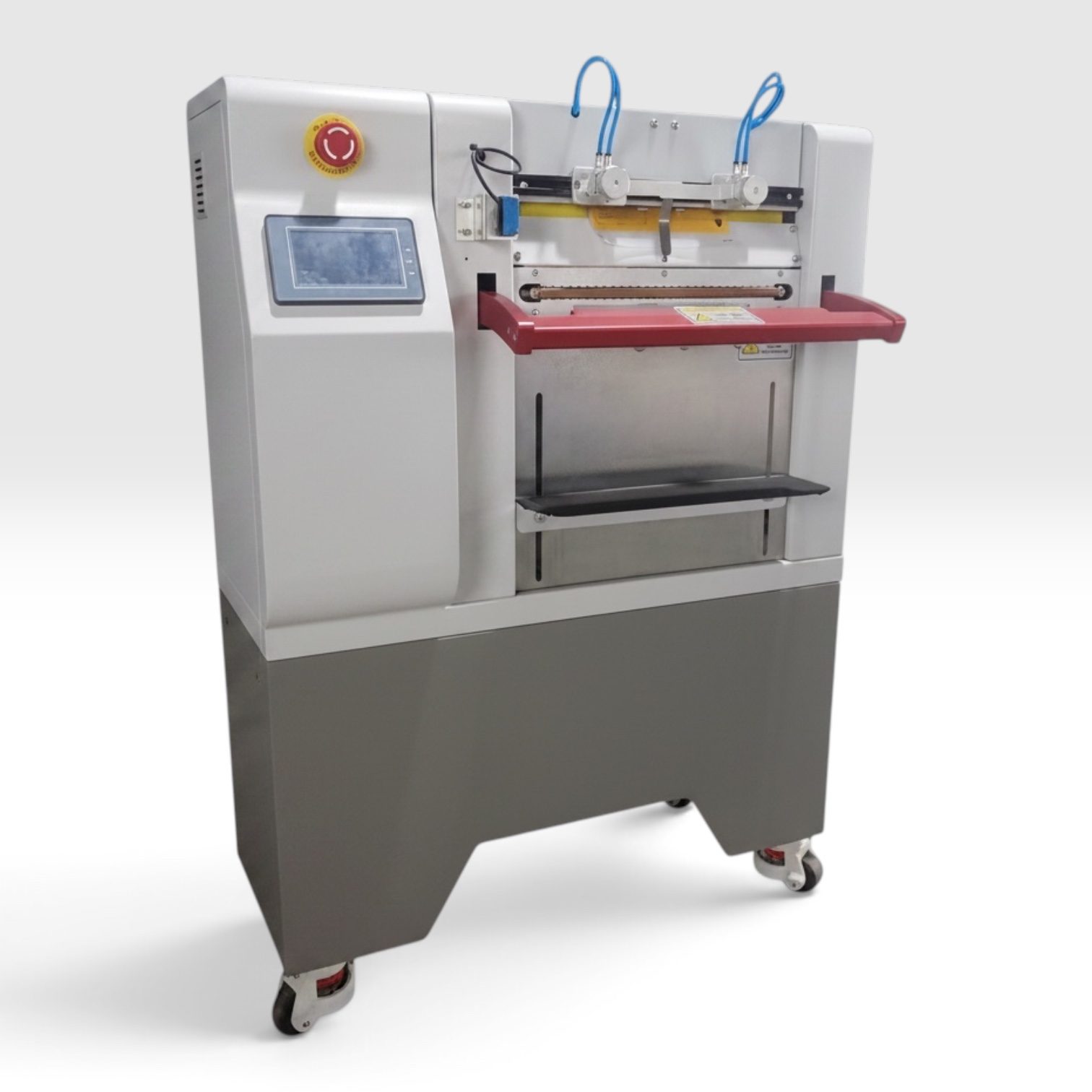

WERDEN Automatic Packing Machine WAP-100S

A simple, easy-to-use packaging solution built for single-manned, collaborative operation. The WAP-100S assists manual packaging by reducing repetitive work procedures and manual work intensity, with a friendly interface and minimal parameter-setting steps needed to get into production quickly.

Why choose the WAP-100S

  • Built for bundle items — ideal for packing bundles with multiple items and varying sizes, where horizontal pillow-type flow wrappers often struggle.
  • Reduces product loss — unlike flow wrappers with multiple connected conveyors (which create gaps where products can drop), the WAP-100S places products directly into pre-opened bags, ensuring secure positioning of bundled items.
  • Easy operation — LCD display with an easy-to-navigate menu and a straightforward interface for quick setup and operation.
  • Collaborative, single-operator design — assists the operator through the bagging process rather than requiring a full automated line.

Applications

Especially suited for electronics manufacturers, component distributors, and e-commerce businesses looking to streamline packaging operations for bundled or mixed-item products.

Specification

Bag Width Min. 100mm / Max. 260mm
Bag Length Min. 100mm / Max. 500mm
Film Width Max. 260mm
Film OD Max. 300mm
Packing Speed 13–20 bags/min
Machine Weight 80 kg
Machine Dimensions (L)700mm × (W)660mm × (H)990mm
Power Source 220V, 50Hz, 1Ph, 1kW
Air Pressure 0.4MPa, 0.05m³/min
Display LCD with easy-to-navigate menu
