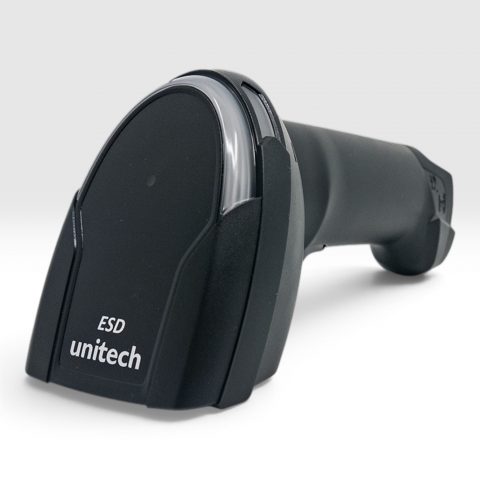

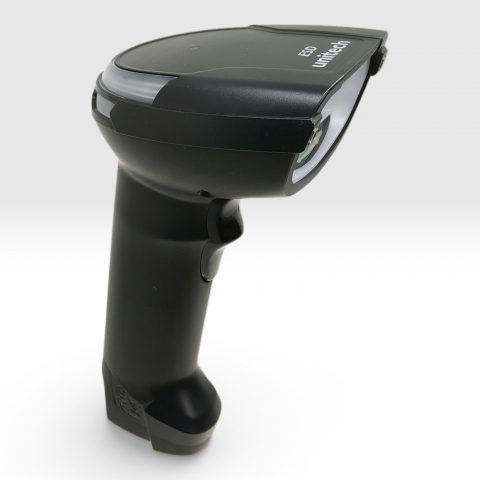

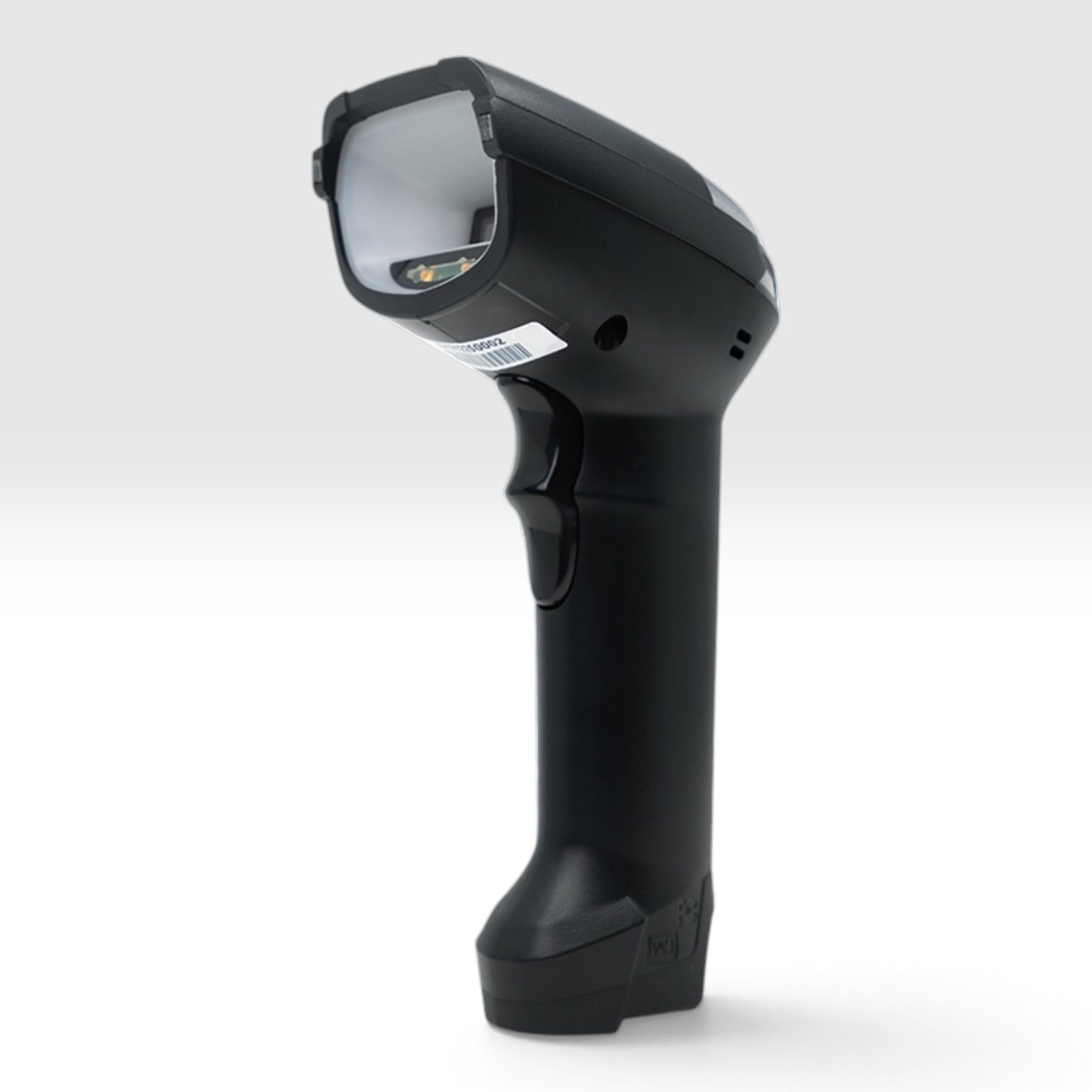

Unitech MS852 DPM ESD 2D Imager Scanner

Specially built to satisfy the stringent requirements of cleanrooms and static-safe manufacturing environments, the MS852 DPM ESD 2D barcode scanner delivers outstanding value by supporting most 1D, 2D, and barcodes marked with DPM (Direct Part Marking) technology. It's an ideal choice across manufacturing, automotive, aeronautical, medical care, electronic equipment, and healthcare markets.

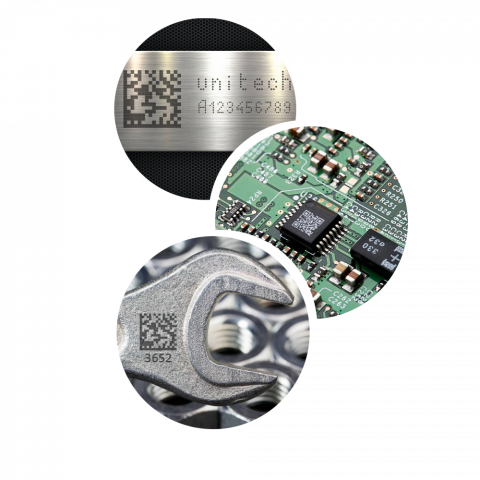

Built with a megapixel barcode sensor, the MS852 DPM ESD achieves maximum compatibility for capturing most 1D/2D barcodes on mobile screens, as well as special barcode symbologies like Direct Part Marks on chips. Direct Part Marking permanently marks a barcode directly onto an item — such as plastic or metal — using laser etching, dot peening, or ink jet printing, ensuring the item can be identified throughout its full lifecycle, even under harsh environmental conditions.

ESD Protection

The MS852 DPM ESD is manufactured using an internal-mix method with antistatic agent, making the scanner body and cable ESD-safe for use in ESD-protected areas. This internal-mix approach withstands ESD in the 10⁵–10⁹ ohms-per-square range and contains no chlorine material — providing longer-lasting ESD protection than external anti-static coatings, which can wear off during packaging or handling.

Key Features

• Advanced barcode reading technology for decoding Direct Part Marking (DPM)
• Specifically designed to satisfy the stringent requirements of static-safe environments
• Supports most 1D/2D barcodes, including on mobile screens
• Long-lifecycle trigger — rated for up to 10,000,000 actuations
• Ultra-rugged design — IP42 and 2.1m drop-to-concrete rated
• Louder beeper and brighter LED indicators for easy feedback recognition

Applications

Manufacturing, automotive, aeronautical, medical care, electronic equipment, and healthcare — anywhere permanent DPM-marked parts need reliable identification and tracking through their lifecycle, quality control, or supply chain, especially in static-sensitive (ESD-protected) environments.

Available Accessories: Standard hands-free stand, USB cable with ESD enhancement, protective case, 5V/2A adapter (US), 5V/2A adapter with universal plugs, desktop/wall mount stand.
