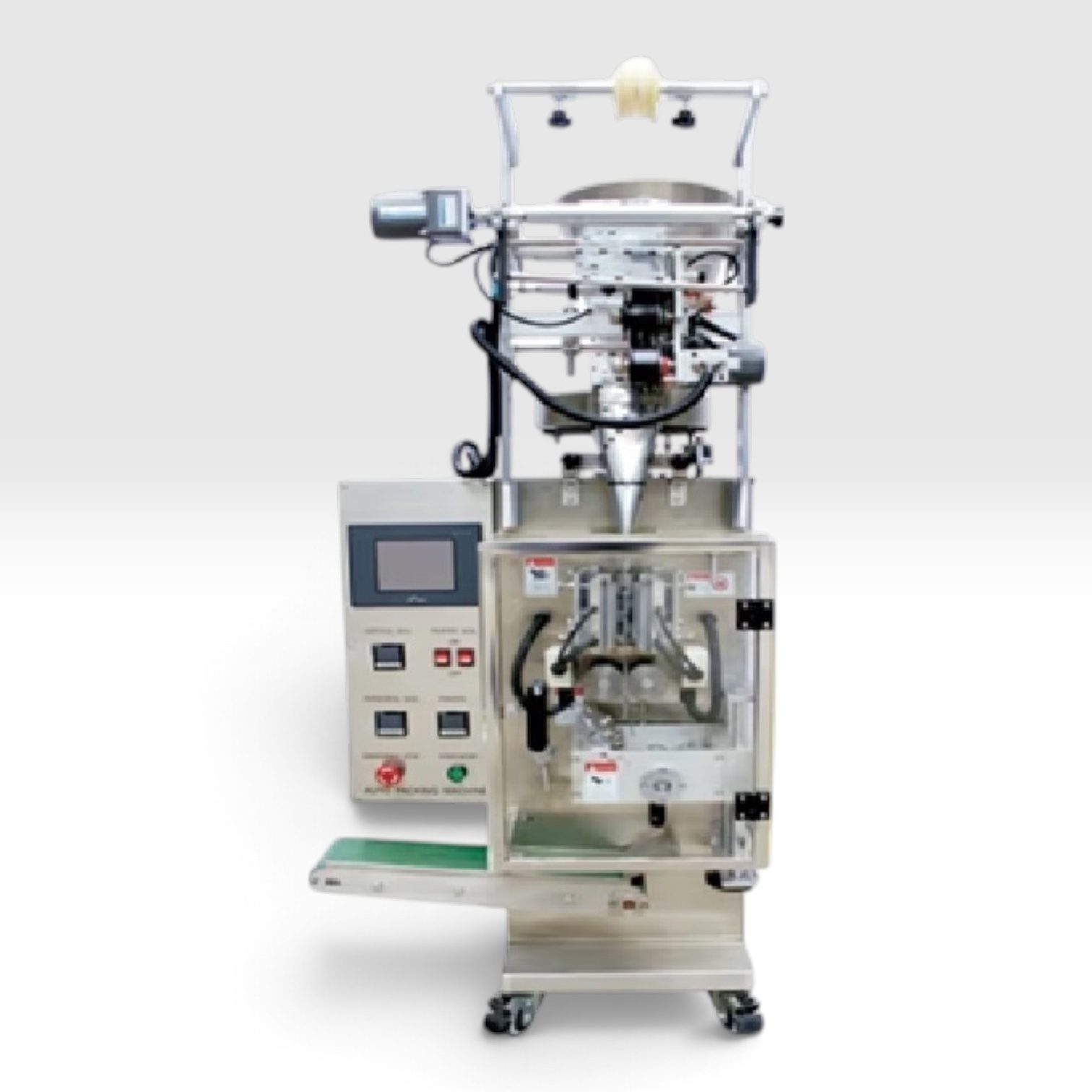

Ouya PM-100 Series Vertical Sachet Form Fill Sealing Machine

Ouya PM-100 Series Vertical Sachet Form Fill Sealing Machine

Powder, liquid, cream, and granule products like sugar or coffee are packed into a long, narrow pouch. Packing for different materials is accomplished by selecting the matching dosing unit — with dedicated PM-100 variants for granule, liquid, powder, tablet, and screw products.

The automatic packaging machine completes product quantitative filling, bag forming, sealing, and back-seal shaping in one continuous process. High-sensitivity fiber-optic photo sensors automatically trace color marks to obtain complete, accurate logo/print registration on the film. PID digital temperature control keeps sealing temperature deviation within ±1°C.

Key Features

• Automatic quantitative filling, bagging, sealing, and back-seal shaping in one process
• Interchangeable mold enables custom pouch-type designs to customer specification
• High-sensitivity fiber-optic photo sensor for accurate color-mark tracing and logo/print registration
• PLC control with touchscreen console — easily adjust packing parameters, with visual production display, self-alarm, self-stop, and self-diagnostic functions for safe, easy maintenance
• PID digital temperature control, sealing temperature deviation within ±1°C

Optional Add-Ons

• Date code printer
• Fixed number cut
• Stainless steel machine outer case

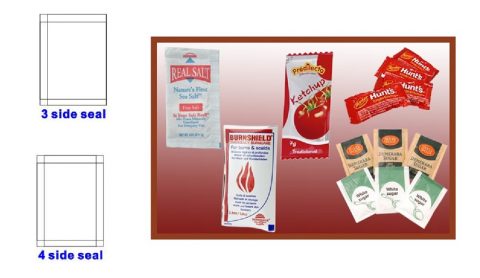

Optional Sealing Format: 3-side seal, 4-side seal

Applications

Suited for packing powder, liquid, granule, tablet, and screw-type products into sachets — well suited to food safety and traceability applications such as sugar, coffee, and similar single-serve or small-portion products.
