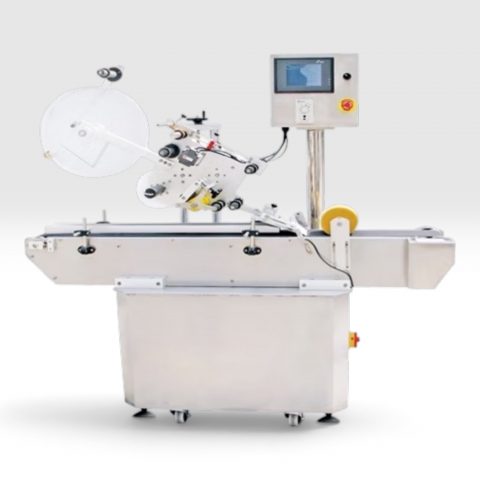

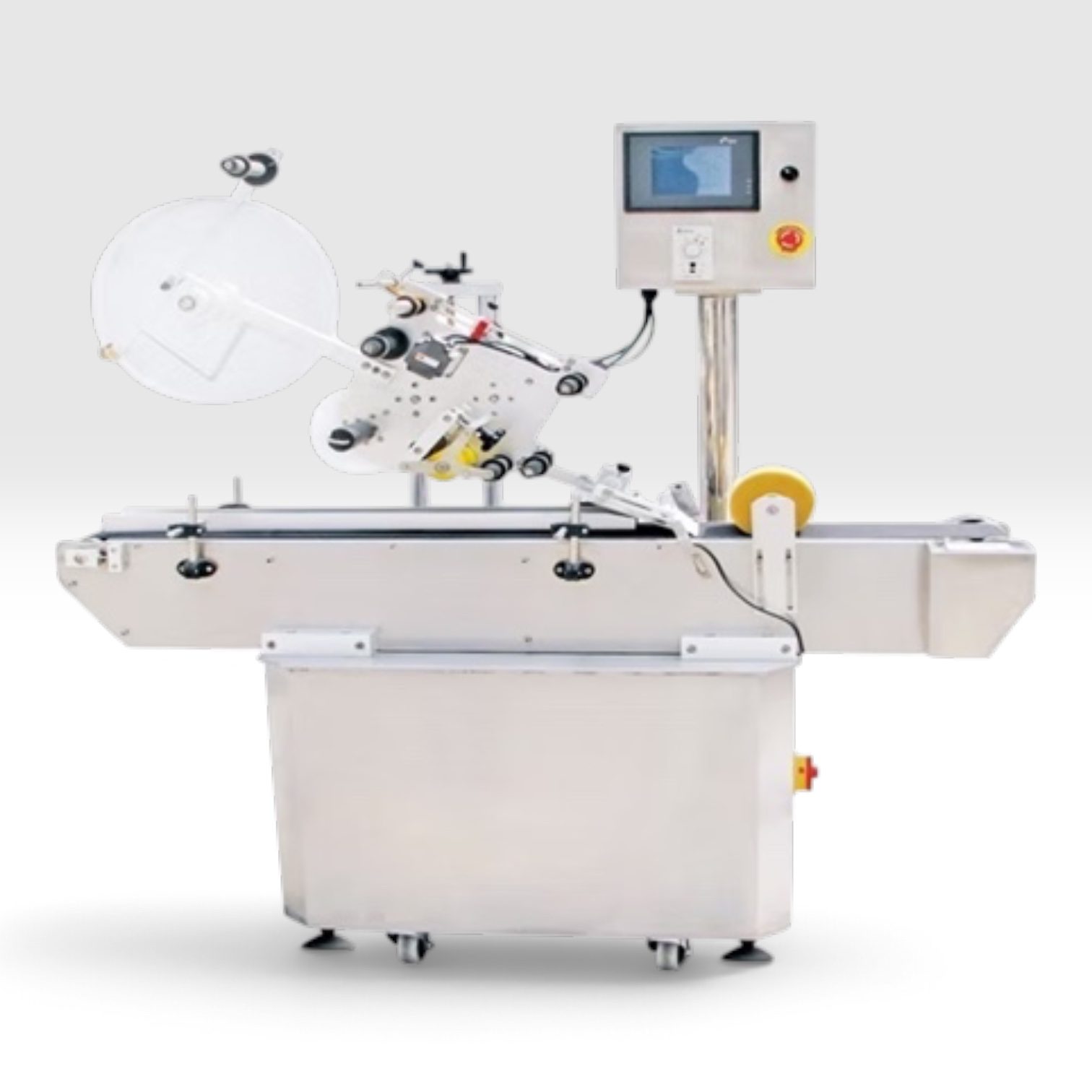

Ouya ALB-210 Automatic Top Flat Labeling Machine
Model ALB-210
Brand Ouya Pack
Ouya ALB-210 Automatic Top Flat Labeling Machine
This machine is designed for top labeling on flat products. Its servo motor-driven labeling head automatically synchronizes labeling speed with conveyor speed, ensuring high-speed, high-quality labeling with ±1mm tolerance.
Key Features
- Main construction in Stainless Steel #304
- PLC combined with touchscreen control system
- High-accuracy labeling, ±1mm tolerance
- Servo motor-driven labeling head, speed automatically synchronized with conveyor speed
Optional Add-Ons
- Hot stamping /coding printer
- Transparent label sensor
- Custom-made width product conveyor
Applications

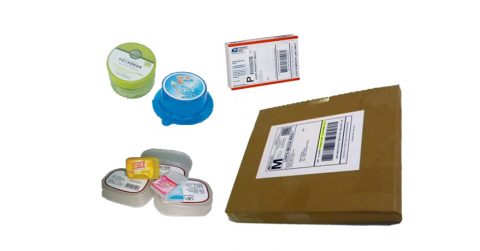

Suited for top-labeling flat products across food safety and traceability applications, and general product labeling where high-speed, high-precision label placement is needed.
Specification
| ALB-210 | |
|---|---|
| Label Height/Width | A: 10–110mm; C: 10–170mm; D: 10–220mm |
| Label Length | 10–250mm |
| Product Diameter/Width | 15–300mm |
| Conveyor Width | Max. 300mm |
| Labeling Speed | 12–35 meters/min |
| Reel Inner/Outer Diameter | Within 76mm / 360mm |
| Machine Dimensions | L1450 x W700 x H1550mm |
OTHER MODELS IN CODING & LABELLING
View all →

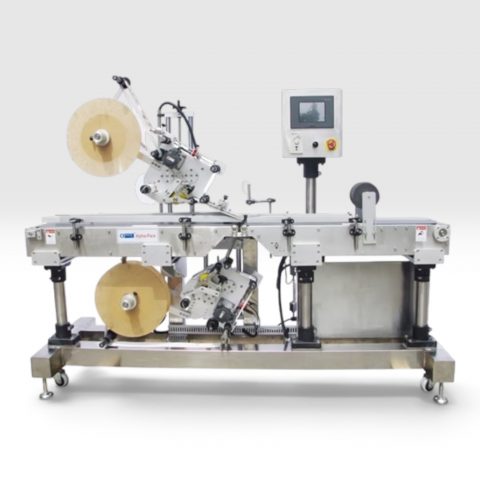

ALB-220
