Sealing & Closing / Foot Sealers

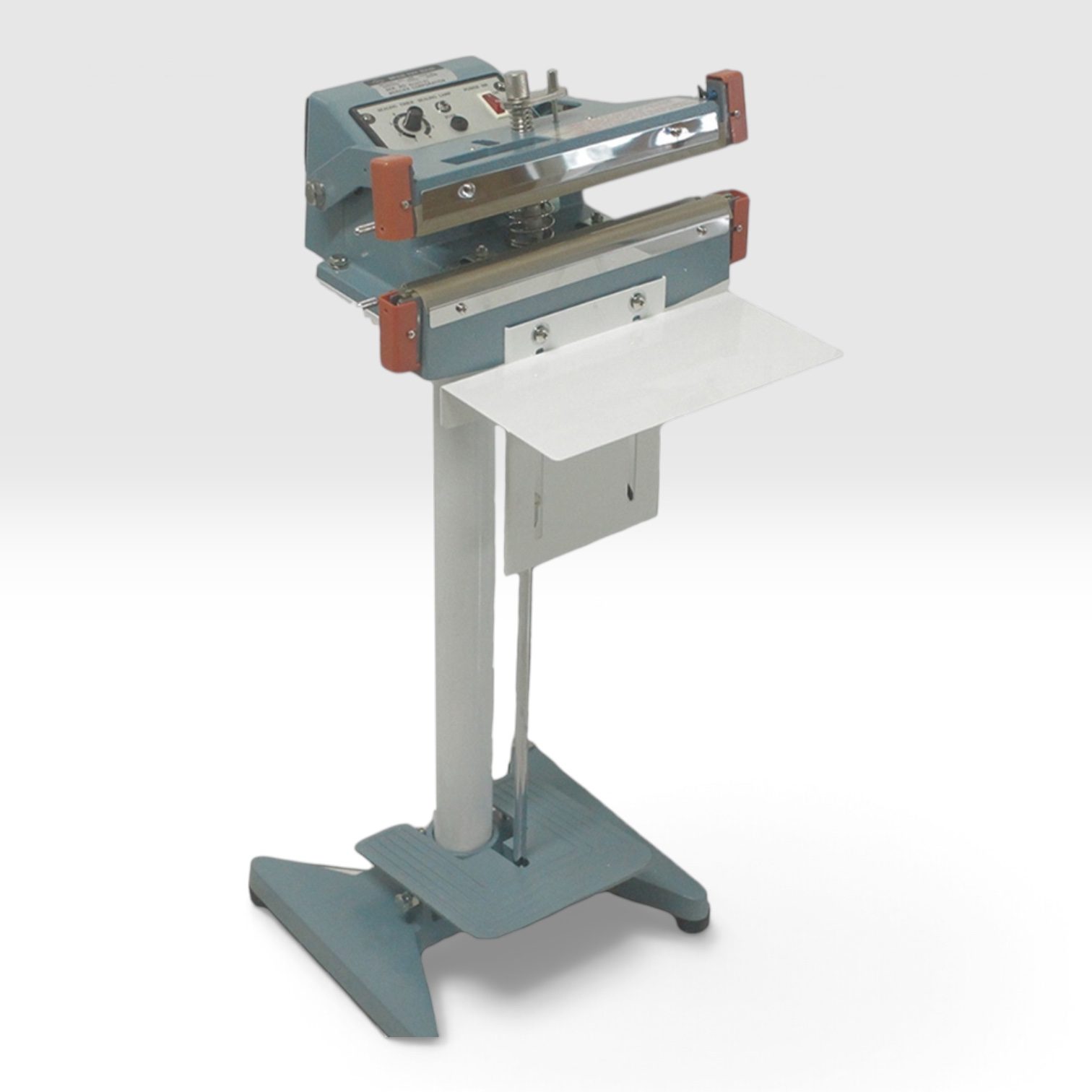

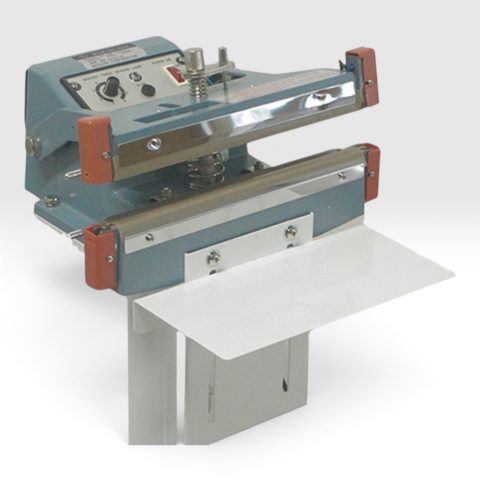

Mercier Seal & Cut Impulse Foot Sealers (FDC Series)

Model ME-FDC Series Brand Mercier Corporation

Mercier Seal & Cut Impulse Foot Sealers — FDC Series

The Seal and Cut Impulse Foot Sealer (FDC models) is the first model designed to cut and seal in one operation. With the help of both a round wire and a flat 2mm wire, these sealers give the operator a secure seal while eliminating the excess material above the seal.

This Seal and Cut Impulse Sealer can extend its abilities with an additional accessory that allows the sealing head to be adjusted to different sealing angles.

Key Features

  • Seals and cuts excess film in a single operation
  • Combined round wire and flat 2mm wire for a secure seal with clean trim
  • Optional accessory to adjust the sealing head to different angles

Applications

Suited for food safety and traceability applications, and dry cleaning and laundry packaging, wherever sealing and trimming excess material in one motion speeds up the packing process.

Specification

ME-300FDC ME-450FDC ME-600FDC
Seal Length 300mm 450mm 600mm
Seal Thickness 2 x 0.15mm 2 x 0.15mm 2 x 0.15mm
Seal Width 2mm 2mm 2mm
Power 1500W 1800W 2200W
Weight 23 kg 25 kg 27 kg

CONSUMABLES FOR THIS MACHINE

PTFE Teflon Adhesive Tape
PTFE-Tape

PTFE Coated Fiberglass Fabric (Teflon Tape)

Adhesive-backed PTFE fiberglass tape offering a non-stick, easily-removable surface for sealer jaws and hot-wire components, rated for continuous use from -73°C to +260°C.

View this part →
