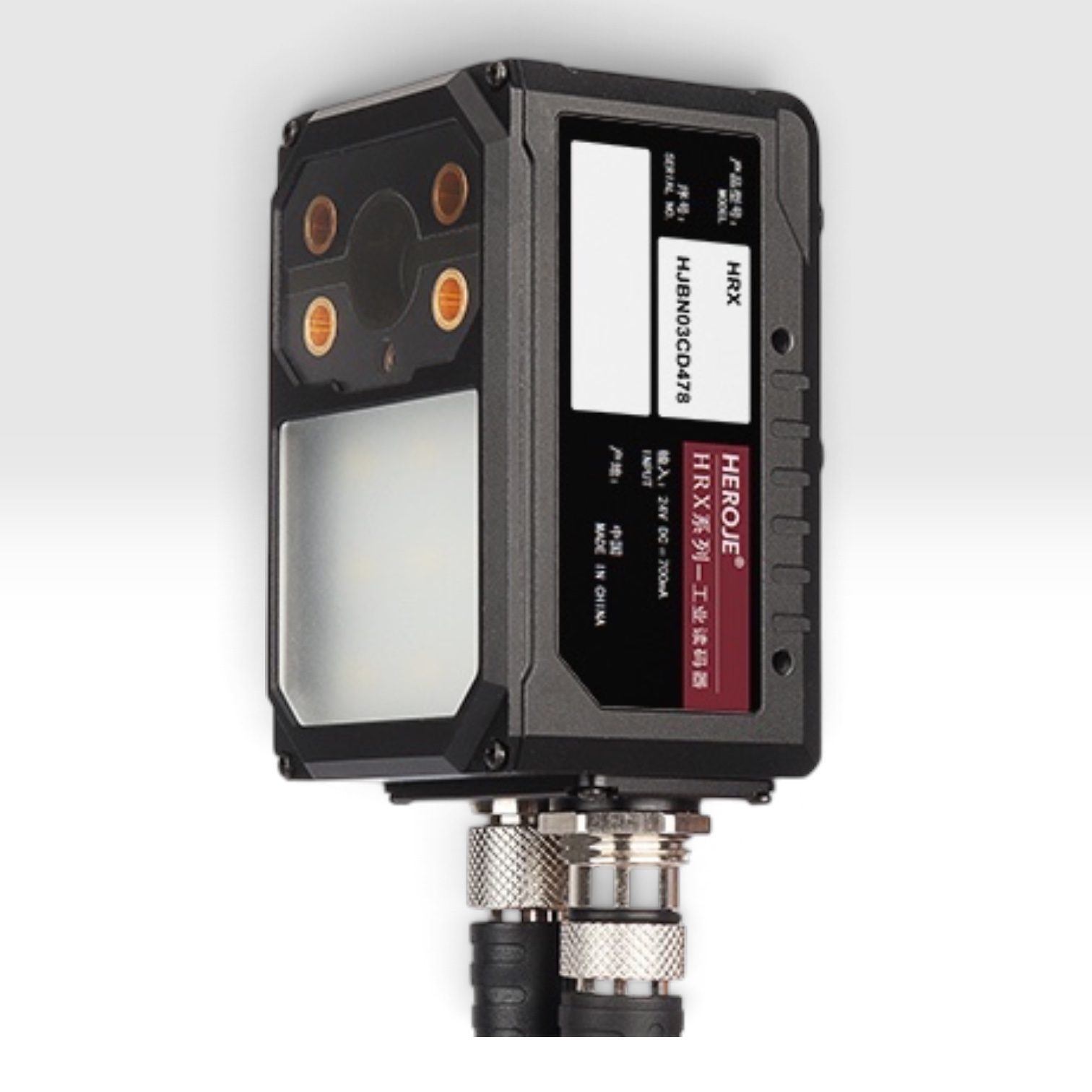

HEROJE HRX Series Auto Focus AI Code Reader
Model HRX Series
Brand Heroje
The HRX series is a high-performance fixed-mount code reader — HEROJE's 6th-generation reader, combining patented lighting technology with the latest decoding algorithms. It features a high-resolution CMOS sensor, providing a larger field of view and longer reading distance than comparable readers.
New features like polarized light source, auto focus, and auto tuning make installation and debugging simple and fast, shortening downtime and improving production efficiency. A visual industrial screen makes installation possible with just one person, without needing a PC.
The optical system comes in multiple models to suit customer needs. Combined with HEROJE's optics and image algorithm optimization, the HRX series delivers a very strong read rate on difficult DPM codes — highly reflective, incomplete, oily, blurred, casting, grain, dark, glass, and cylindrical surfaces — as well as large-area, high-speed moving code reading. The AI and latest decoding algorithms deliver up to 99% decode capacity for hard-to-read DPM applications across industries.
Key Features
- Auto Tuning — adjusts and saves parameters with one click when switching detection objects, without a PC or extensive manual debugging
- Auto Focus — adjustable focus lens reads stably from 30 to 1500mm, automatically refocusing for different detection objects
- Laser Aiming — clearly indicates the scanning area
- Polarized Light — multiple adjustable light source groups with polarized light function, handling complex DPM codes such as highly reflective surfaces
- High Protection Class — up to IP64 industrial protection, suitable for harsh application environments
- ModeC Powered — HEROJE's patented algorithm supports complex application scenarios without needing additional decoding software; the innovative ModeC algorithm is designed for reading significantly damaged 2D codes (QR and Data Matrix)
Applications
Electronic devices, automotive, and logistics — suited for demanding code-reading environments involving reflective, oily, irregular, blurred, cast, glass, dark, or cylindrical surfaces, and high-speed moving code reading.
Available Accessories: Serial cable 5m (CAB-HJ-A17T2B90PW2C7), Ethernet cable 5m (CAB-HJ-A12S-M5NET08X), Ethernet cable 1m (CAB-HJ-A12S-M1NET08G), IO/power control cable 1m (CAB-HJ-A17D-5PWR1CN7), 24V power adapter (WTA36-2401500-C).
Specification
| HRX-S-130 (Long-Range) | HRX-S-130W (Wide-Field) | |
|---|---|---|
| Sensor | CMOS, 1280 x 1080 pixels | CMOS, 1280 x 1080 pixels |
| Light Source | Multi-group controllable high-intensity LED (red, diffuse, polarized) | Multi-group controllable high-intensity LED (red, diffuse, polarized) |
| Aiming Light | Laser, 650nm | Laser, 650nm |
| Focus Adjustment | Auto focus | Auto focus |
| Minimum Resolution (1D) | 0.0762mm | 0.0762mm |
| Minimum Resolution (2D) | 0.127mm | 0.127mm |
| Reading Depth of Field | 30mm to 1500mm | 30mm to 800mm |
| Reading Field of View | 90 x 75mm (typical at 300mm) | 178 x 146mm (typical at 300mm) |
| Supported 1D Codes | EAN13, EAN8, UPC-A, UPC-E, Code128, Code39, Code93, Code32, I25, D25, Code11, MSI, DataBar, Codabar, Pharmacode, etc. | EAN13, EAN8, UPC-A, UPC-E, Code128, Code39, Code93, Code32, I25, D25, Code11, MSI, DataBar, Codabar, Pharmacode, etc. |
| Supported 2D Codes | QR, MicroQR, PDF417, MicroPDF417, DataMatrix, GS1 DataMatrix, etc. | QR, MicroQR, PDF417, MicroPDF417, DataMatrix, GS1 DataMatrix, etc. |
| Control Input | 2 inputs (optocoupler isolation, default cable 1 input); max. rating 26.4V; min. ON voltage 5V; max. OFF current ≤5µA | 2 inputs (optocoupler isolation, default cable 1 input); max. rating 26.4V; min. ON voltage 5V; max. OFF current ≤5µA |
| Control Output | 2 outputs (optocoupler isolation, default cable 1 output); max. rating 40V; max. load current 500mA; leakage current when OFF ≤100mA; residual voltage when ON ≤0.13V | 2 outputs (optocoupler isolation, default cable 1 output); max. rating 40V; max. load current 500mA; leakage current when OFF ≤100mA; residual voltage when ON ≤0.13V |
| Ethernet | IEEE802.3 1000BASE-TX (Gigabit); supports Raw, Modbus-TCP, TCP, UDP | IEEE802.3 1000BASE-TX (Gigabit); supports Raw, Modbus-TCP, TCP, UDP |
| Serial Communication | RS-232C; 2400–115200 bps; supports Raw, Modbus-RTU | RS-232C; 2400–115200 bps; supports Raw, Modbus-RTU |
| USB | USB 2.0 High Speed / USB 1.1 Full Speed; supports USB HID, USB CDC | USB 2.0 High Speed / USB 1.1 Full Speed; supports USB HID, USB CDC |
| Enclosure Rating | IP64 | IP64 |
| Operating Temperature | -5°C to +65°C | -5°C to +65°C |
| Storage Temperature | -20°C to +70°C | -20°C to +70°C |
| Operating/Storage Humidity | 35–85% RH (no condensation) | 35–85% RH (no condensation) |
| Ambient Light Tolerance | Sunlight 10,000 lux; incandescent 6,000 lux; fluorescent 2,000 lux | Sunlight 10,000 lux; incandescent 6,000 lux; fluorescent 2,000 lux |
| Power Voltage | 12–24V DC | 12–24V DC |
| Current Consumption | Approx. 800mA | Approx. 800mA |
| Weight | 242g | 242g |
