Sleeve Wrapper

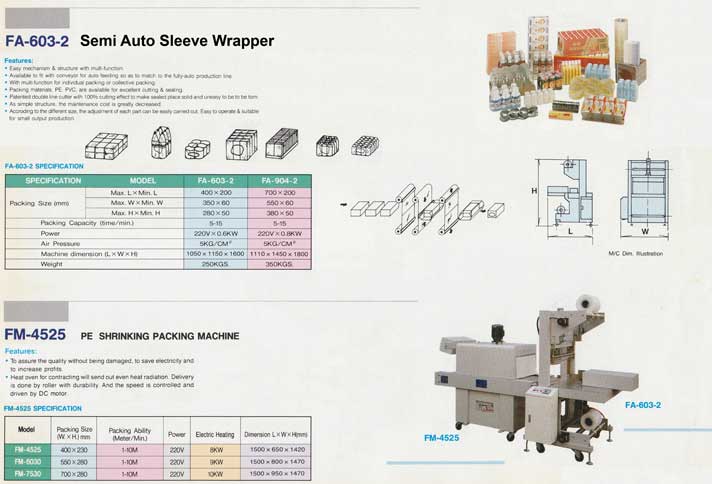

Semi Auto Sleeve Wrap:FA-603-2 (Semi-Auto Sleeve Wrapper)

  • Easy Mechanism & structure with multi-function
  • Available to fit with conveyor for auto feeding so as to match to the fully-auto production line
  • With multi-function for individual packing or collective packing.
  • Packing materials, PE, PVC, are available for excellent cutting & sealing.
  • Patented double line cutter with 100% cutting effect to make sealed place solid and uneasy to be to be torn.
  • As simple structure, the maintenance cost is greatly decreased.
  • Accroding to the different size, the adjustment of each part can be easily carried out. Easy to operate & suitable for small output production.

SPECIFICATIONS:

Model FA-603-2
Packing Size (Min) 200mm L x 60mm W x 50mm H
Packing Size (Max) 400mm L x 350mm W x 280mm H
Packing Capacity 5-15 (time/min)
Power 220V / 380V ~ 0.6KW
Macine Dimension 1050mm L x 1150mm W x 1600mm H
Machine Weight 250KGS
Air Pressure 5 kgf/cm²

FM-4525 (PE Shrinking Packing Machine)

  • Assuring quality without being damage
  • Electricity saving to increase profit
  • Durable roller
  • DC motor driven conveyor

SPECIFICATIONS:

Model FA-4525
Packing Size 400mm x 230mm
Packing Capacity 1 - 10 M/min
Power 220V / 380V
Electric Heating 8 KW
Macine Dimension 1500mm L x 650mm W x 1420mm H

For information of other series, please click here.
