Skin Packaging

Similar to blister pack, but using heat and a vacuum to form the thin transparent plastic which has glue layer over the product skin tight, instead of being pre-formed by eliminating moulding process for packaging cost saving.

Products:

O ring, gear, bearing
Shoe brake
Radiator
Screw sets for furniture
Etc

MSP-1218

Economical manual table top design
12” x 18” and 18” x 24”
vacuum box sizes offered
SP-1218 available in 115 and 220 volts single phase models.
MSP-1824 is 208 - 220 volts single phase

SPECIFICATIONS:

Model	MSP-1218
Max card size:	12” x 18”
Heating system:	Quartz impulse
Vacuum system:	Turbine
Avg. cycle times:	30-60 seconds
Max. product height:	8”
Approximate size:	28”W x 31”D x 27”H
Approximate wt:	60 LB.

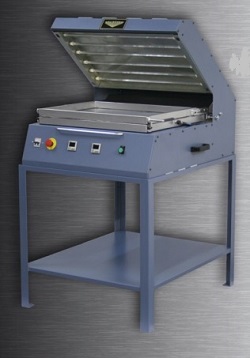

MSP-1824 (Optional floor stand)

Can be used for retail carded packaging or shipping containment
Energy saving Impulse Heating instant-on quartz heater system
All models use standard skin film roll widths

SPECIFICATIONS:

Model	MSP-1824
Max card size:	18” x 24”
Heating system:	Quartz impulse
Vacuum system:	Turbine
Avg. cycle times:	30-60 seconds
Max. product height:	6”
Approximate size:	34”W x 37”D x 31”H
Approximate wt:	180 LB.

SP-655 (Medium Skin Sealer)

Directly pack articles by principal of heat pressing
Vacuum suction will form the plastic into the shape of articles
Big packing area. Thus, suitable for high volume production.

SPECIFICATIONS:

Model	SP-655
Power	220V 1Ø
Width of film	660mm / 610mm
Packing area	560mm x 400mm
Vacuum pump	2HP
Heater power	4.8 KW
Machine Dimension	1350mm x 1000mm x 1250mm

For more information, please click here.

Machine in Factory
