Mobile Stretch Wrapper

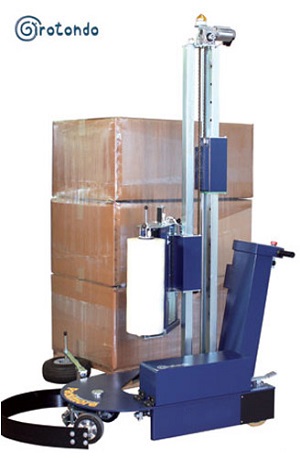

GIROTONDO

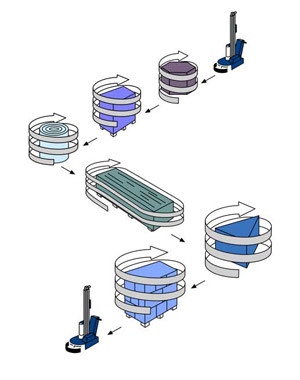

The mobile stretch wrapper automatically packs pallets of all shapes and sizes because it autonomously rotates around the product to be packed, following the profile of the wood platform or of the product itself.
It detects automatically the pallet height, with a photocell eye.
From the control panel, you can adjust the rise and descent rotation speeds, set the quantity of revs of stretch film to be positioned at the bottom or top of the pallet, automatically measure the height of the pallet or preset it manually.

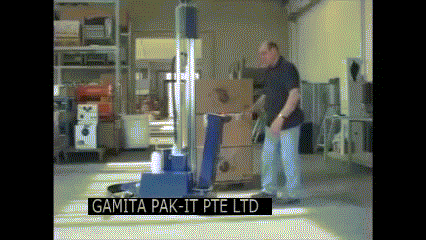

Girotondo and Girokay is the only pallet wrapping robot manoeuvrable from the rear. This characteristic offers the best possible ergonomics: thanks to a patented system, the operator can carry out all operations from the back of the machine, thus considerably facilitating management, stretch film extraction and setting of controls.

WRAPMAN






The economical model for mobile stretch wrapper.

The unique solution of wrapping loads of any weight, profile, dimension and shape. The unique solution that guarantees maximum protection to the load with halved packaging costs. The unique solution to wrapping in little space without any effort.

The only system for wrapping with 60 cm around the pallet.

SPECIFICATIONS:

Model No. Max useful pallet height Carriage type H (mm) L (mm) W (mm) Weight Autonomy Max diameter film coil Core types of film coil
WRAPMAN Sth 2.0 2.0 m frictioned roller 2119 1115 570 114 kg 90 pallet 180 mm 50-76 mm
WRAPMAN Sth 2.4 2.4 m frictioned roller 2481 1115 570 116 kg 90 pallet 180 mm 50-76 mm
WRAPMAN 2.0 2.0 m power pre-stretch 2119 1115 570 121 kg 70 pallet 145 mm 50-76 mm
WRAPMAN 2.4 2.4 m power pre-stretch 2481 1115 570 123 kg 70 pallet 145 mm 50-76 mm
WRAPMAN 2.8 2.8 m power pre-stretch 2900 1115 570 137 kg 70 pallet 145 mm 50-76 mm

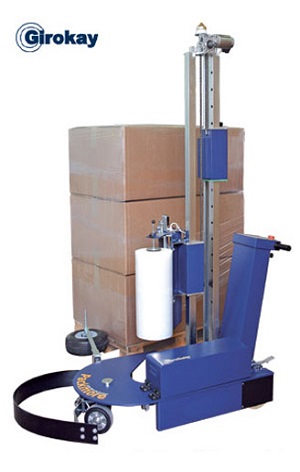

GIROKAY AC



The Girokay AC Stc wrapper is an automatic robot for wrapping medium and large quantities of pallets.
The machine is battery powered, and has a minimum throughput range of 80 pallet wraps per recharge. The battery charger is on board and to recharge, just plug into the mains socket.
For extra range, you can buy a second optional battery unit. Fast interchange capability enables you to recharge one unit while the other is on board.
Adjustable parameters from panels:

  • Rotation speed
  • Upward carriage speed
  • Downward carriage speed
  • Number of bottom rounds
  • Number of top rounds
  • Photocell delay
  • Load height and photocell exclusion
  • Film tension adjusting
  • Up and down cycle
  • Only up cycle
  • Top sheet cycle
SPECIFICATIONS:

Model No. Max useful pallet height H (mm) L (mm) W (mm) W' (mm) Weight Autonomy Pallet min dimensions Max diameter film coil Core types of film coil
GIROKAY AC Stc 2.0 2.0 m 2272 1730 690 1320 217 kg 100 pallet 75x75 cm 250 mm 50-76 mm
GIROKAY AC Stc 2.4 2.4 m 2634 1730 690 1320 219 kg 100 pallet 75x75 cm 250 mm 50-76 mm

GIROTONDO AC


The Girotondo Ac wrapper lengthens exactly double the length of the original stretch film in the reel (100 % elongation percentage). This pre-elongation occurs inside the device.
With this machine, you can also adjust, with a knob, the outfed tension of stretch film so that very light or heavier pallets can be wrapped.
The power pre-stretch carriage has a rapid loading system to speed up reel changes. Stretch film reels with an external diameter of 250 mm and with an internal core of 2, or 3 inches can be used.
This model has as many as 8 different wrapping programs. The machine is supplied standard with the semi-automatic wrapping program for pallets with an irregular perimeter.
Adjustable parameters from panels:

  • Rotation speed
  • Upward carriage speed
  • Downward carriage speed
  • Number of bottom rounds
  • Number of top rounds
  • Photocell delay
  • Load height and photocell exclusion
  • Film tension adj. differentiated in each phase of the cycle
  • n'8 user program
  • up and down cycle
  • Only up cycle
  • Only down cycle
  • alternate cycle
  • up and down, top cycle
  • only up top sheet cycle
  • up and down cycle with reinforcements wraps
  • only up cycle with reinforcements wraps
  • manual use cycle
SPECIFICATIONS:
Model No. Max useful pallet height H (mm) L (mm) W (mm) W' (mm) Weight Autonomy Pallet min dimensions Max diameter film coil Core types of film coil
GIROTONDO AC 2.0 2.0 m 2272 1680 690 1320 225 kg 80 pallet 75x75 cm 250 mm 50-76 mm
GIROTONDO AC 2.4 2.4 m 2634 1680 690 1320 227 kg 80 pallet 75x75 cm 250 mm 50-76 mm
GIROTONDO AC 2.8 2.8 m 3053 1680 690 1320 230 kg 80 pallet 75x75 cm 250 mm 50-76 mm
