Tape Dispenser Machine

It's a helping tools that holds a roll of tape, and at one end has mechanism to shear the tape. Dispenser have different sizes and kind of mechanism based on the tape material.



Tab Tape




M800

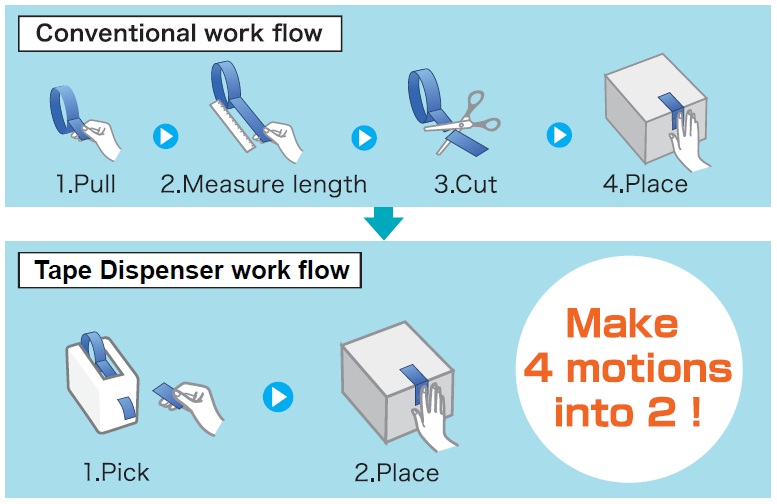

M800 from ELM, a simple tape dispenser that is easy to use. With the preset of 30mm, 45mm, and 90mm. Simplifying workflow to increase work efficiency.


Model M800
Tape Width

7mm ~ 24mm

Tape Length 30mm, 45mm, 90mm, or manually
Max OD 135mm
Power Supply D Battery x 3 or DC 4.5V 600mA
Machine Dimension 96mm W x 177mm L x 115mm H
Usable Tape Cellophane Tape

For more information, please click here.


M950



Ideal dispenser for light duty production, including simple packing. M950 is designed for cellophane tape and mending tape. Automatically advances tape once tape is lifted and cut.


Model M950
Tape Width

12mm ~ 21mm

Tape Length 25mm ~ 99mm (1mm interval)
Max OD 110mm
Power Supply

110~240VAC, 50/60Hz, 200mA

Machine Dimension 110m W x 270mm L x 210mm H
Usable Tape Cellophane Tape
Mending Tape

For more information, please click here.


M1000



Ideal dispenser for light and medium production. Can be used with many types of tapes in the market. Set definite length, automatically advance and cut once tape is taken.


Model M1000
Tape Width

7mm ~ 50mm

Tape Length 20mm ~ 999mm (1mm interval)
Max OD 180mm
Power Supply

110~240VAC, 50/60Hz, 200mA

Machine Dimension 137mm W x 245mm L x 156mm H
Usable Tape

Cellophane Tape
Kraft
etc...


For more information, please click here.


EL200



About a 15 mm tab is created at the edge of tape. Ideal dispenser for light duty production, including simple packing.Designed for cellophane tape, thin OPP tape, and mending tape.


Suitable for tape usage where easy removal is required.
Model EL200
Tape Width

12mm ~ 19mm

Tape Length Manual
Max OD 110mm
Power Supply

N/A

Machine Dimension 55mmW x 180mm L x 110mm H
Usable Tape

Cellophane Tape
PP Tape


For more information, please click here.


EL100A



About an 18mm tab is created at the edge of the tape. The tape length is adjustable at the set length. Ideal dispenser for production and packing line. Designed for filament tape and temporary fixing tape. With its metal construction, EL100 is well-designed and suitable for production use.
Suitable for tape usage where easy removal is required.

Model EL100A
Tape Width

12mm ~ 25mm

Tape Length 50mm ~ 210mm (10 mm interval)
Max OD 180mm

N/A

Machine Dimension 110mm W x 270mm L x 210mm H
Usable Tape

Filament Tape
Temporary Fixing Tape


For more information, please click here.

Machine in Factory

Electric parts packaging

Fixing moving parts

Food Packaging

M1000 (Industrial Tape Dispenser)

EL-100A (Tab Tape)
