Shrink Sealers
In order the products to be shrink-wrapped with shrink wrap bag, all side of the shrink wrap bag need to be sealed using heat sealer. For big quantity of products, faster and consistent sealing, we offer semi-automatic and fully automatic heat sealer.

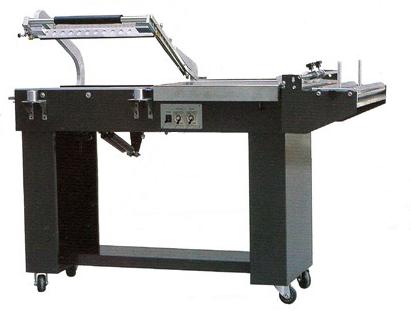

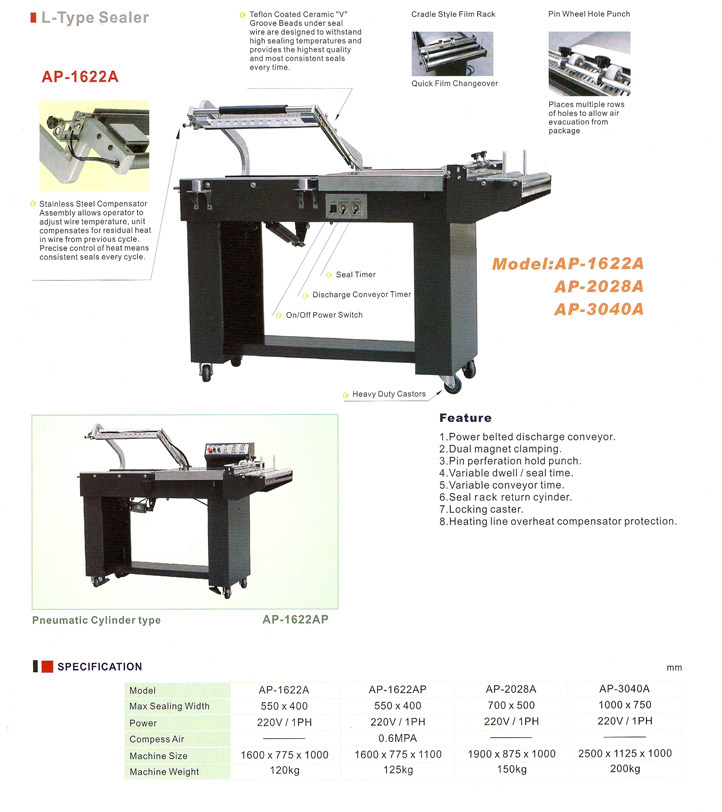

Semi Auto L-Sealer (Ouya AP-1622A)
Sealing made easy with AP-1622A. With power-belted discharge conveyor and dual magnetic clamping system.
SPECIFICATIONS:
| Model |
AP-1622A |
AP-3040A |
| Voltage |
220 VAC 1ø |
220 VAC 1ø |
| Machine Dimension |
1600 x 775 x 1000 mm |
2500 x 1125 x 1000 mm |
| Sealing bar |
550 x 400 mm |
1000 x 750 mm |
| Machine Weight |
120 kg |
200 kg |
| Pneumatic |
- |
- |
Pneumatic type also available. Please contact us for more information.
For more information, please click here.
*Special size available upon request*
|

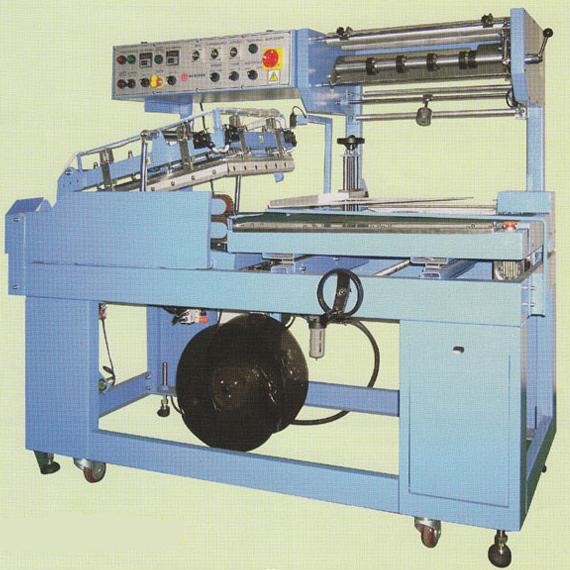

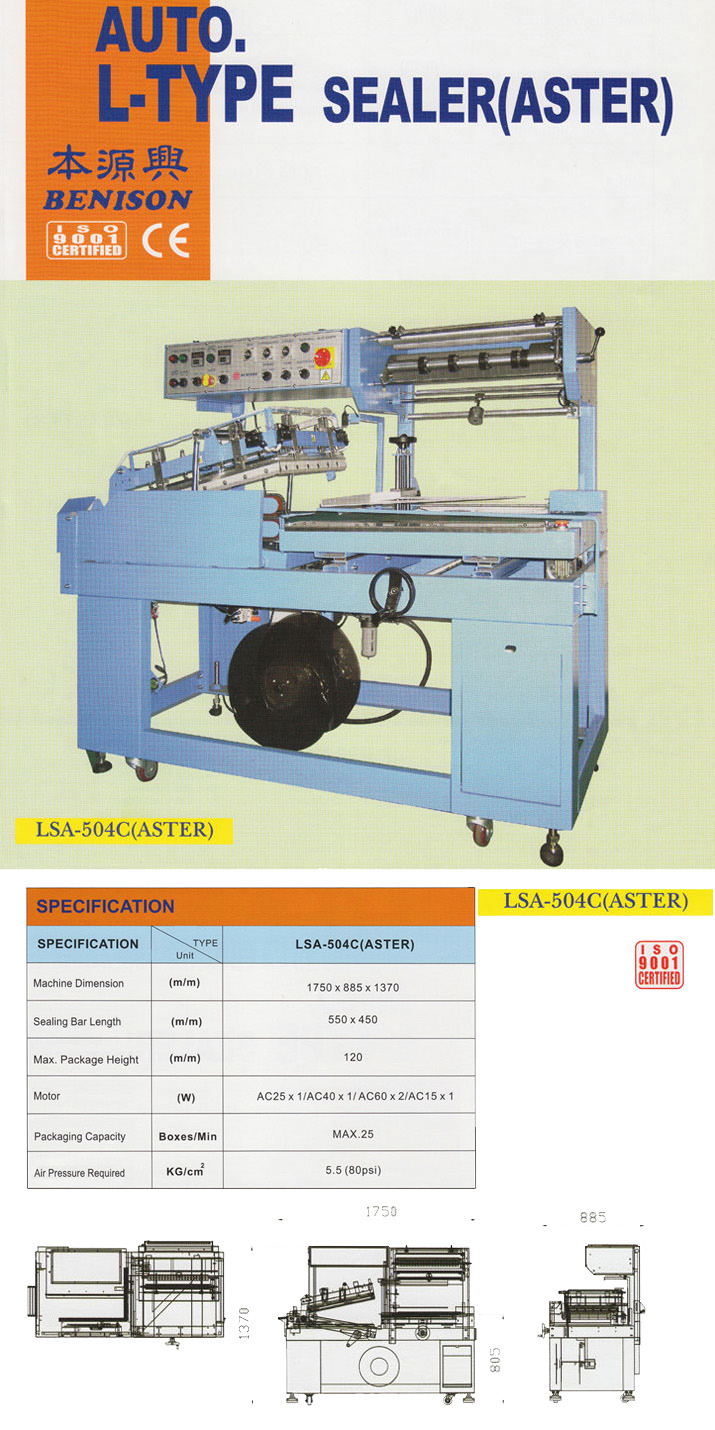

Auto L-Sealer: Benison LSA-504C (ASTER)
This easy to use automatic L-Sealer boast capacity of 25 packages per minute. Run with PLC, makes it a solid piece of work with a longer lasting working hours. With selectable horizontal or vertical sensor, sealing made easy. Change of plastic is also easier with this machine for it is designed for operator friendly.
SPECIFICATIONS
| Model |
LSA-504C (ASTER) |
| Package Size |
500 x 400 x 120 mm |
| Capacity per min |
25 |
| Voltage |
230 VAC 1ø |
| Machine Dimension |
1750 x 885 x 1370 mm |
| Sealing bar length |
550 x 450 mm |
| Motor |
AC 25 W x 1
AC 40 W x 1
AC 60 W x 2
AC 15 W x 1 |
| Air Pressure Required |
80 psi |
For more information, please click here.
|

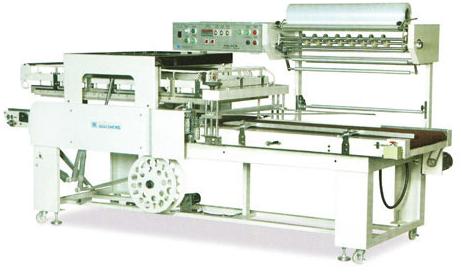

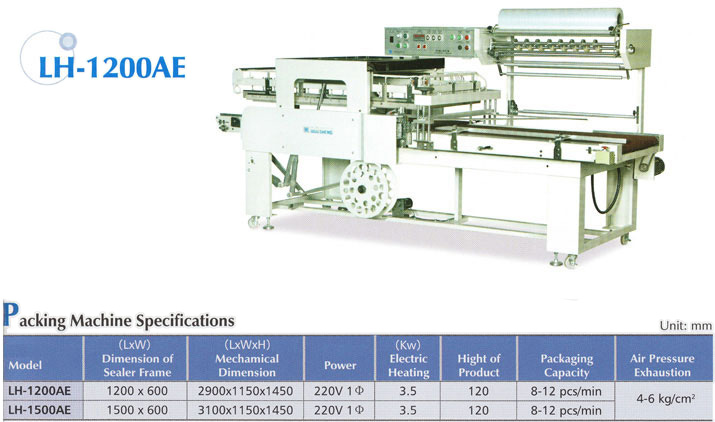

Auto L-Sealer: Wuu-Sheng LH-1200AE
L-Sealer for long products, with automatic conveyance, transferring the sealed-products to shrink tunnel. Sealing and cutting is controlled by instantaneous heating. With speedy sealing and cutting, it produces beautiful appearances and electricity savings.
SPECIFICATIONS
| Model |
LH-1200 AE |
| Package Size |
1150 x 550 x 120 mm |
| Capacity per min |
8 ~ 12 |
| Voltage |
230 VAC 1ø |
| Power |
3.5 KW |
| Machine Dimension |
2900 x 1150 x 1450 mm |
| Sealing Bar Length |
1200 x 600 mm |
| Air Pressure Required |
90 psi |
For more information, please click here.
|
Auto Easy Side Sealer: USE-004 (Benison Side Sealer)
With temperature constant control design, the temperature of seal blade can be easily adjusted. Simple operation to adjust according to the packaging height. With simple mechanism design makes it easy for operator to maintain and clean.
SPECIFICATIONS
| Model |
USE-004 |
| Package Size |
350 x ∞ x 80 mm |
| Capacity / min |
(depends on the width); 40 for 100 mm |
| Voltage |
240 VAC 1ø |
| Machine Dimension |
1776 x 906 x 1332 mm |
| Power (Heater) |
1 KW |
| Power (Motor) |
60 W x 2
40 W x 1
25 W x 1
15 W x 1 |
| Air Pressure Required |
80 psi |
For more information, please click here.
|

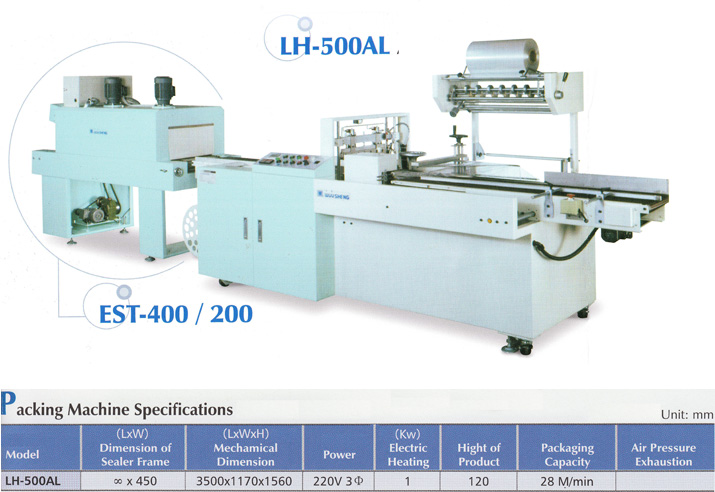

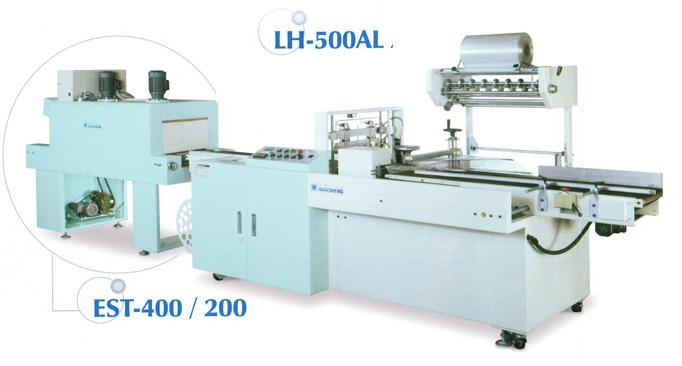

Auto Side Sealer: Wuu-Sheng LH-500AL
Side-Sealer for long products, with automatic conveyance, transferring the sealed-products to shrink tunnel. With speedy sealing and cutting, it produces beautiful appearances and electricity savings.
SPECIFICATIONS
| Model |
LH-500 AL |
| Package Size |
450 x ∞ x 210 mm |
| Capacity / min |
28 Mtr |
| Voltage |
240 VAC 1ø |
| Machine Dimension |
3500 x 1170 x 1560 mm |
| Power |
1 KW |
| Air Pressure Required |
90 psi |
For more information, please click here.
|
Vertical L-Bar Sealer LB-802
- Consistent sealing process
- Pillars drive design provides excellent stability and durability
- Seal seam is neat and fix without fold line
- Automatic film advance system
- Two sets of photoelectric sensor system automatically compensate for package length change
- Tool-less change over with scaled adjustments throughout
- Different brands of shrink film is acceptable
- LB-801 is mainly designed for packing thin and tiny product
- LB-801 and LB-802 is equipped with kissing conveyor
SPECIFICATIONS
| Model |
LB-801 |
LB-802 |
LB-803 |
Machine Size
L x W x H (mm) |
1485 x 1320 x 1230 |
2000 x 1530 x 1315 |
2420 x 1710 x 1325 |
| End Seal Bar (mm) |
450 x 335 |
630 x 520 |
900 x 700 |
Packing Size
L x W x H (mm) |
(50~400) x (50~280) x (2~80) |
(100~560) x (60~430) x (2~180) |
(200~830) x (200~630) x (2~180) |
| Voltage |
220V / 1PH |
| Power |
2.5 Kw |
3 Kw |
4 Kw |
| Air Pressure Required |
55psi, 6kg/sq.cm |
55psi, 8kg/sq.cm |
55psi, 8kg/sq.cm |
|

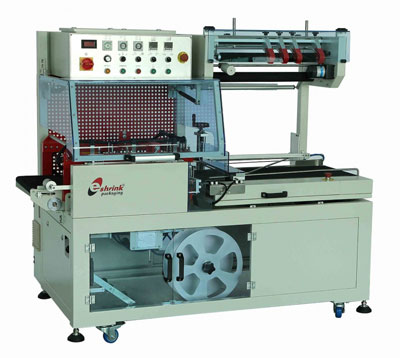

Automatic L-Bar Sealer LB-728
- A wide range of products can be packaged
- An economical packing solution
- Safety protection and alarm attached
- The sealing system is capable of performing smooth and firm sealing line
- Easy operation and maintenance
- Use of photo sensors and timers controls the bag length for sealing
- Excellent perforation system design allows pin changed easily
SPECIFICATIONS
| Model |
LB-728 |
LB-729 |
Machine Size
L x W x H (mm) |
1795 x 985 x 1570 |
1767 x 1205 x 1570 |
| End Seal Bar (mm) |
565 x 460 |
630 x 520 |
Packing Size
L x W x H (mm) |
(100~450) x (60~350) x (5~120) |
(60~560) x (60~430) x (5~160) |
| Voltage |
220V / 1PH |
| Power |
3 Kw |
| Air Pressure Required |
55psi, 6kg/sq.cm |
|
