Portable Strapping Tool

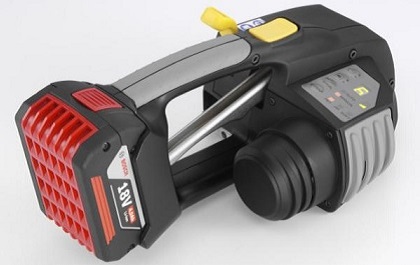

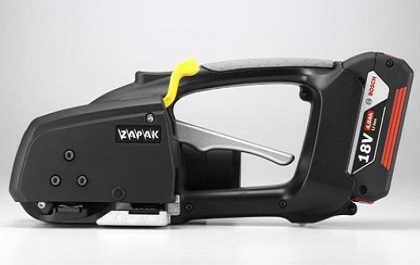

ZP93 & ZP97 Battery Powered Automatic PET & PP Combination Strapping Tool

Latest technology

  • Brushless motor-ZAPAK patented single motor design provides extremely long service life.
  • Bosch Li-Ion battery- 18V 4.0Ah rechargeable battery with smart Charge Level Indicator (CLI)
  • Bosch 30 minutes charger

    • Powerful & Speedy

    • Max. tension 400 KGS ( 4000N) - ZP97 heavy duty model.
    • Max. tension 250 KGS ( 2500N) - ZP93 standard duty model.
    • Patented new strap grippers design contributes to high tension ability and strap quality tolerance.
    • Single-handed operation performs automatic tensioning, friction welding and cutting efficiently.

    Smart & Easy

    • Pre-programmed touch panel with digital signal to suit different operation needs instinctively.
    • Lightest model in same class of tools approx. 3.4kg (7.5lbs incl. battery) relieves operation fatigue.
    • Special tool retreating device ensures smooth and easy removal of tool.
    • Unique rear-end roller design prevents scratches or worn out damages on strapping objects.
    • User self-adjustable strap widths guiders and self-changeable wearing parts.
    • Optional hanger reduces operation fatigue.
    • ZP93 Soft mode tension available for slow and low tension on strapping light or fragile objects.

    Safety

    • Single-handed operation conforms to CE safety directive and meets RoHS requirements.
    • Li-Ion battery complies with UN38.3 safety requirements.

    SPECIFICATIONS:

    Model ZP 93 ZP 97
    Fits Poly-strap PP / PET PP / PET
    Strap Width(mm) 9~16 16&19
    Strap Width(inch) 3/8~5/8 5/8&3/4
    Strap Thickness(mm) 0.55~1.27 0.75~1.27
    0.65~1.27
    Strap Thickness(inch) 0.022~0.05 0.029~0.05
    0.026~0.05
    Tension range 10~250 kgs
    (22~550 lbs)    		 40~400 kgs
    ( 88~880 lbs)
    Sealing efficiency 85 ± 5% 85 ± 5%

    For more information, please click here. (Alternative Brochure)

ZP96 (heavy duty applications)

  • Adjustable tension, up to 420 kgs for heavy duty strapping jobs.
  • Single-handed operation
  • Brushless motor
  • 18V Li-Ion Battery
  • pre-programmed Control Panel
  • Operation Lever for easy strap feeding & easy tool removal

SPECIFICATIONS:

Model ZP 96
Voltage Battery (DC)
Strap band material PP / PET
Width 16mm & 19mm (PP/PET)
Thickness

0.75 - 1.35mm (PP)
0.65 - 1.35mm (PET)

Tension range 40 - 420 kg (PET/PP)
Sealing efficiency 85 ± 5%

For more information, please click here. (Alternative Brochure)

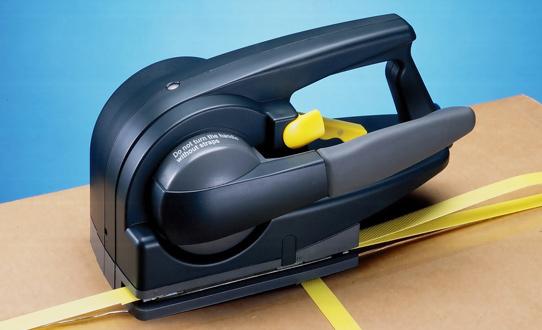

Electric Operated: Zapak ZP 20(ZP 20)

  • Reliable manual tensioning, Max 100kgs for light duty strapping job.
  • Automatic friction-weld sealing and cutting, no metal seals required.
  • Lightweight and compact size.
  • Easy "one-step" straps inserting.

SPECIFICATIONS:

Model ZP 20
Voltage (AC) 230V ±10; 1Ø; 50Hz
Strap band material PP
Width 9-16mm
Thickness 0.55 - 1.0mm
Tension range 20 - 100 kg
Sealing efficiency 80 ± 5%
Machine dimension 250mm x 106mm x 140mm
Machine weight 2.73 KG

For more information, please click here.

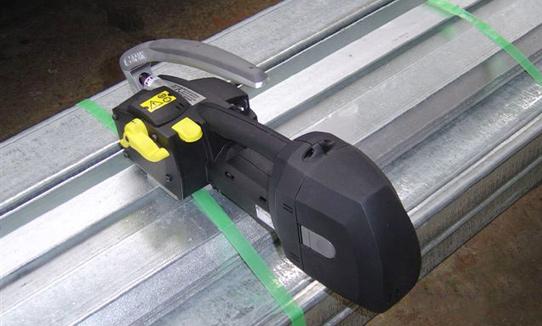

ZP22 (normal duty applications)

  • Extreme long service life
  • Adjustable tension, Max 250kgs for standard duty strapping job.
  • Adjustable sealing time for various strap specifications.
  • Easy "one-step" straps inserting
  • User self-adjustable front & rear strap guiders to assure perfect strap alignment.

SPECIFICATIONS:

Model ZP 22
Voltage Battery (DC)
Strap band material PP / PET
Width 12-16mm
Thickness 0.6 - 1.27mm
Tension range 50 - 250 kg (PET)
25 - 100 kg (PP)
Sealing efficiency 85 ± 5%
Machine dimension
(with battery)		 390mm x 128mm x 135mm
Machine weight
(with battery)		 3.82 KG

For more information, please click here.

ZP24 (light duty applications)

  • Extreme long service life.
  • Adjustable tension from 15kg up to 80kg (PP) and 20kg up to 120kg (PET)
  • The most economic combination tool for light duty strapping
  • Automatic tension, automatic friction welding and cutting, no metal seals required.
  • Easy "one-step" straps inserting
  • User self-adjustable front & rear strap guiders to assure perfect strap alignment.

SPECIFICATIONS:

Model ZP 24
Voltage Battery (DC)
Strap band material PP / PET
Width 9-16mm (PP)
9 - 13mm (PET)
Thickness

0.55 - 0.8mm (PP)
0.45 - 0.6mm (PET)

Tension range 15 - 80 kg (PP)
20 - 120 kg (PET)
Sealing efficiency 90 ± 5%

For more information, please click here.

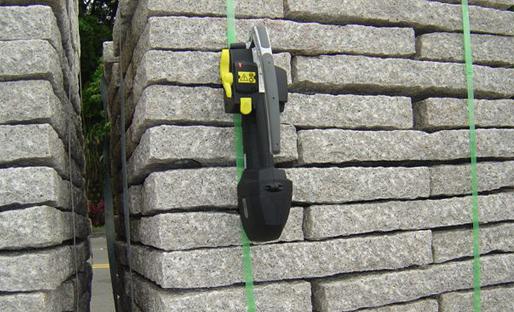

ZP 26 (heavy duty applications)

  • Extreme long service life.
  • Adjustable tension, up to 330kgs for heavy duty strapping jobs.
  • Adjustable sealing time for various strap specifications
  • Alloyed Magnesium Alumnium mechanism ensures a light and durable structure
  • Easy "one-step" straps inserting
  • User changeable strap cutting blade and other wearing parts

SPECIFICATIONS:

Model ZP 26-9B
Voltage Battery (DC)
Strap band material PP / PET
Width 16mm & 19mm (PP/PET)
Thickness

0.75 - 1.27mm (PP)
0.65 - 1.27mm (PET)

Tension range 70 - 330 kg (PET)
50 - 140 kg (PP)
Sealing efficiency 80 ± 5%

For more information, please click here.

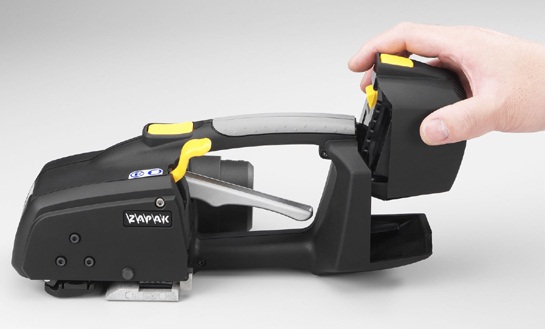

ZP92 (normal duty applications)

  • Adjustable tension, up to 260 kgs for normal duty strapping jobs.
  • Single-handed operation
  • Brushless motor
  • 18V Li-Ion Battery
  • pre-programmed Control Panel
  • Operation Lever for easy strap feeding & easy tool removal

SPECIFICATIONS:

Model ZP 92
Voltage Battery (DC)
Strap band material PP / PET
Width 9-16mm (PP/PET)
Thickness

0.55 - 1.35mm (PP/PET)

Tension range 10 - 260 kg (PP/PET)
Sealing efficiency 85 ± 5%

For more information, please click here. (Alternative Brochure)

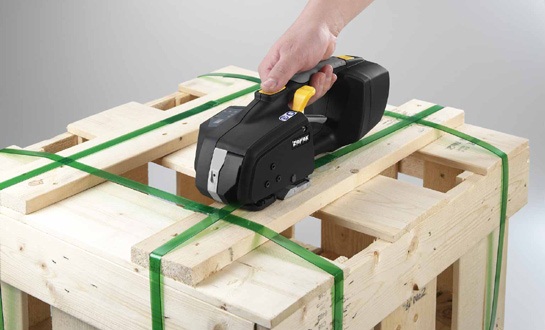

ZP96 (heavy duty applications)

  • Adjustable tension, up to 420 kgs for heavy duty strapping jobs.
  • Single-handed operation
  • Brushless motor
  • 18V Li-Ion Battery
  • pre-programmed Control Panel
  • Operation Lever for easy strap feeding & easy tool removal

SPECIFICATIONS:

Model ZP 96
Voltage Battery (DC)
Strap band material PP / PET
Width 16mm & 19mm (PP/PET)
Thickness

0.75 - 1.35mm (PP)
0.65 - 1.35mm (PET)

Tension range 40 - 420 kg (PET/PP)
Sealing efficiency 85 ± 5%

For more information, please click here. (Alternative Brochure)

Accessories

We also supply accessories for the strapping too we sell.
For more information, please click here.
