Impulse Hand and Foot Sealer, Constant Heat Foot Sealer


Impulse Hand Sealer Impulse Hand Sealer

MEC manufactures quality Impulse Sealers that are the No.1 selling sealers in the Taiwan. Perfect for a multitude of applications. Makes excellent air and water tight seals on most plastic materials up to 0.2mm.
Materials:

  • KEL-F
  • MYLAR
  • POLYFLEX
  • P.V.A
  • POLYETHYLENE
  • POLYURETHANE
  • PVC
  • POLYPROPYLENE
  • PLIOFILM
  • TIVAC
  • SARAN
  • and other sealable materials

SPECIFICATIONS:

Model 300HI 400HI 500HI
Seal Length 300mm 400mm 500mm
Seal thickness 2 x 0.15 mm 2 x 0.15 mm 2 x 0.15 mm
Seal Width 2 mm 2 mm 2 mm
Power 500 W 750 W 900 W
Weight 4.8 KG 6 KG 7.7 KG

Impulse Hand Sealer with CUTTER


The "HC" series models are equipped with a sliding cutting blade to cut excess material 6mm from seal. Ideal for sealing poly tubing. Available in 2mm and 5mm width seals. Excellent for applications in the medical` pharmaceutical and packaging fields Sealers Available In 2mm and 5mm Widths. All are equipped with a sliding blade that cuts excess material a quarter of an inch from the seal. The Impulse Sealers with Cutters are excellent in sealing poly-tubing and most plastic materials.

SPECIFICATIONS:

Model 300HC 400HC 405HC
Seal Length 300mm 400mm 400mm
Seal thickness 2 x 0.15 mm 2 x 0.15 mm 2 x 0.15 mm
Seal Width 2 mm 2 mm 5 mm
Power 500 W 750 W 1000 W
Weight 5.4 KG 7.3 KG 8 KG

Impulse Foot Sealer


The MEC line of Impulse Foot Sealers are ideal for sealing large heavy bags. By having a foot control, the hands are free to feed the machine. It is like having an extra hand.
Units come complete with pedestal, stand, adjustable working table and adjustable foot control. 2mm, 5mm element wires are available. Optional Hot Stamp Imprinter. The AIE line of heavy duty Impulse Foot Sealers (FI series), are specially manufactured to increase sealing production. Equipped with foot pedal activator, the user's hands are free to feed the machine.

SPECIFICATIONS:

Model 300FI 305FI 455FI 600FI
Seal Length 300mm 300mm 450mm 600mm
Seal thickness 2 x 0.15 mm 2 x 0.15 mm 2 x 0.15 mm 2 x 0.15 mm
Seal Width 2 mm 5 mm 5 mm 2 mm
Power 450 W 900 W 1200 W 800 W
Weight 23 KG 25KG 27 KG 26.5 KG

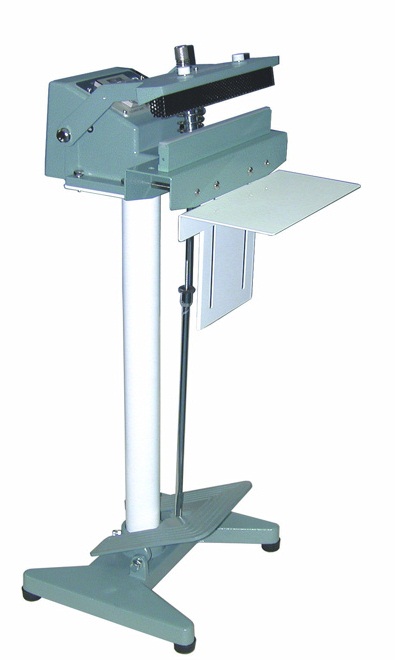

Constant Foot Sealer


These special foot sealers are excellent for sealing polycello films, humidity-proof cellophane film, polyethylene film, aluminum foil coated bags and gusset bags. We offer mesh or straight-line texture of heater jaw. The straight-line texture is especially recommend for health care industry. "CFN" model equipped with Timing Light & Signal to notify operator that foot should be removed from pedal and sealing is complete. Each machine has new injection molded castings and electro static paint.
Hot stamp imprinter is optional. CFN type equipped with protection mask, it¡¦s more safty for user. Single heat type also could advise, can be used on the special medical bags and bubble bags.

SPECIFICATIONS:

Model 300CFN 400CFN 600CFN
Seal Length 300mm 400mm 600mm
Seal thickness 2 x 0.25 mm 2 x 0.25 mm 2 x 0.25 mm
Seal Width 10mm / 15mm 10mm / 15mm 10mm / 15mm
Power 350W 420W 520W
Weight 22KG 23KG 28KG

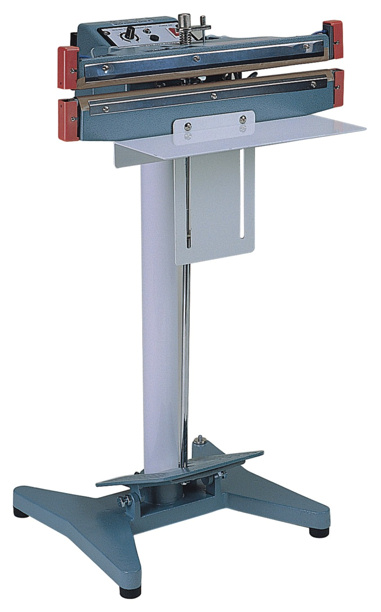

Foot Sealer with Cutter (Impulse)


The Seal and Cut Impulse Foot Sealer (FDC models) is the first model designed to cut and seal in one operation. With the help of both a round wire and a flat 2 mm wire, these sealers give the operator a secured seal while eliminating the excess material above the seal. This Seal and Cut Impulse Sealer can extend its abilities with an additional accessory that allows the sealing head to be adjusted in different sealing angles. Please refer to the accessory section.

SPECIFICATIONS:

Model 300FDC 450FDC 600FDC
Seal Length 300mm 450mm 600mm
Seal thickness 2 x 0.15 mm 2 x 0.15 mm 2 x 0.15 mm
Seal Width 2 mm 2 mm 2 mm
Power 1500 W 1800 W 2200 W
Weight 23 KG 25 KG 27 KG
