Carton Sealer & Mini Carton Sealer

This machine is helping to close end cardboard box by applying self adhesive tape automatically. User need to push the filled cardboard box therefore machine automatically seal the closing top end and bottom end.

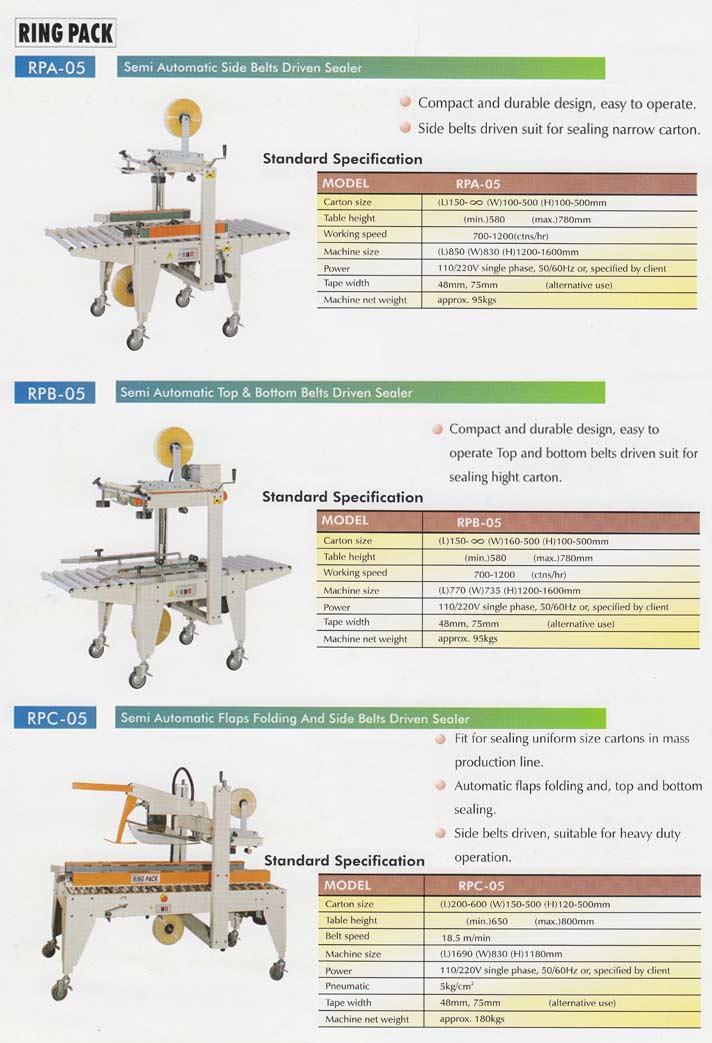

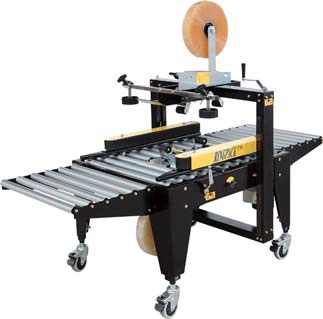

RPA-05 (Semi-auto carton sealer)

  • Compact and durable design
  • Easy to operate
  • Side belt driven; suitable for sealing narrow carton

SPECIFICATIONS:
Model RPA-05
Power 220 VAC; 50Hz; 1Ø
Carton Size 150mm L x 100mm W x 100mm H (min)
∞ L x 500mm W x 500mm H (max)
Table Height 580mm ~ 780mm
Machine Size 850mm L x 830mm W x 1200~1600mm H
Working speed 700-1200 cartons/hour
Tape width 48mm
Net weight 95 KG

For more information, please click here.

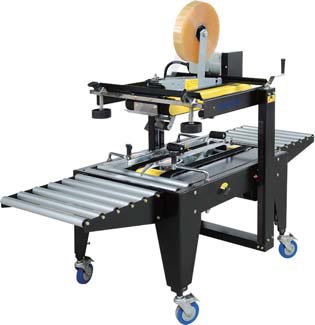

RPB-05

  • Compact and durable design
  • Easy to operate
  • Bottom belt driven; suitable for sealing tall carton

SPECIFICATIONS:
Model RPB-05
Power 220 VAC; 50Hz; 1Ø
Carton Size 150mm L x 160mm W x 100mm H (min)
∞ L x 500mm W x 500mm H (max)
Table Height 580mm ~ 780mm
Machine Size 770mm L x 735mm W x 1200~1600mm H
Working speed 700-1200 cartons/hour
Tape width 48mm
Net weight 95 KG

For more information, please click here.

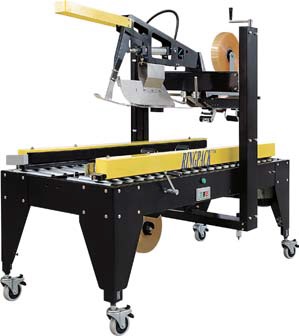

RPC-05


  • Fit for sealing uniform size cartons in mass production line
  • Automatic flaps folding and top & bottom sealing
  • Side belt driven; suitable for heavy duty operation

SPECIFICATIONS:
Model RPC-05
Power 220 VAC; 50Hz; 1Ø
Carton Size 200mm L x 150mm W x 120mm H (min)
600mm L x 500mm W x 500mm H (max)
Table Height 650mm ~ 800mm
Machine Size 1690mm L x 830mm W x 1180mm H
Working speed 300 - 750 cartons/hour
Tape width 48mm
Net weight 180 KG Approx.
Pneumatic 5 KG/cm²

For more information, please click here.

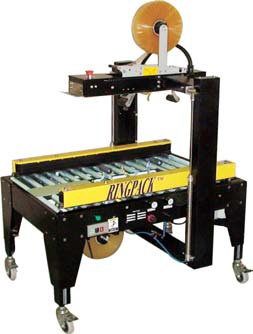

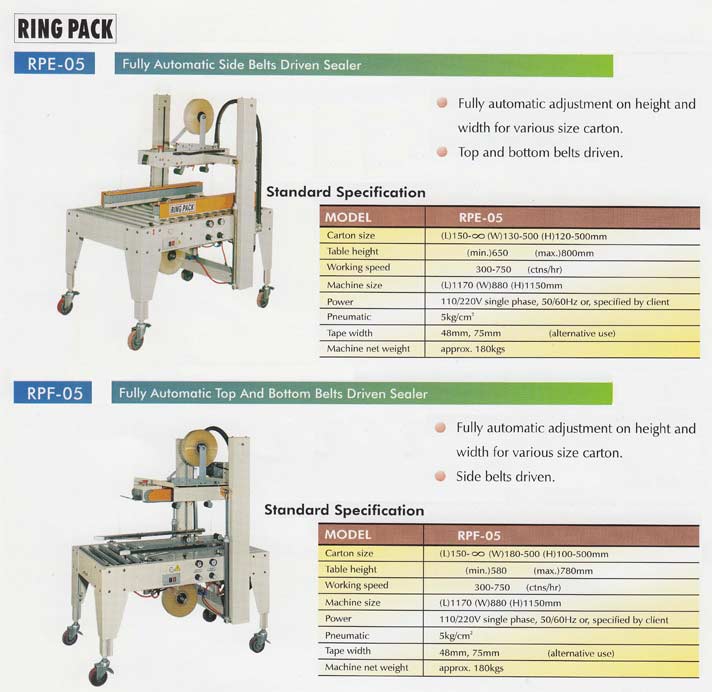

RPE-05


  • Fit for sealing uniform size cartons in mass production line
  • Fully automatic adjustment on height and width for various size cartons
  • Side belt driven

SPECIFICATIONS:
Model RPE-05
Power 220 VAC; 50Hz; 1Ø
Carton Size 150mm L x 130mm W x 120mm H (min)
∞ L x 500mm W x 500mm H (max)
Table Height 650mm ~ 800mm
Machine Size 1170mm L x 880mm W x 1150mm H
Working speed 300 - 750 cartons/hour
Tape width 48mm
Net weight 180 KG Approx.
Pneumatic 5 KG/cm²

For more information, please click here.

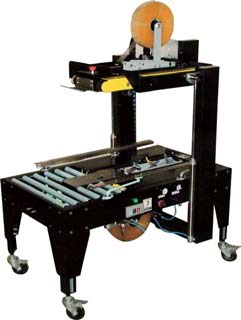

RPF-05


  • Fully automatic adjustment on height and width for various size cartons
  • Top & bottom belt driven

SPECIFICATIONS:
Model RPF-05
Power 220 VAC; 50Hz; 1Ø
Carton Size 150mm L x 180mm W x 100mm H (min)
∞ L x 500mm W x 500mm H (max)
Table Height 580mm ~ 780mm
Machine Size 1170mm L x 880mm W x 1150mm H
Working speed 300 - 750 cartons/hour
Tape width 48mm
Net weight 180 KG Approx.
Pneumatic 5 KG/cm²

For more information, please click here.

PW-562


  • Side belt driven
  • Outstanding exterior, ingenious design, steady & durability
  • Best fit for sealing of inner box, sall carton, and even light carton
  • High speed sealing

SPECIFICATIONS:
Model PW-562
Power 220 VAC; 50Hz; 1Ø (60W)
Sealing Speed 20 M/mins or
1500 cartons/hour
Tape width 1.5"
Machine Size (shipping) 794mm L x 726mm W x 1035mm H
Net Weight 85 KG

For more information, please click here.

Carton Sealer in Factory
