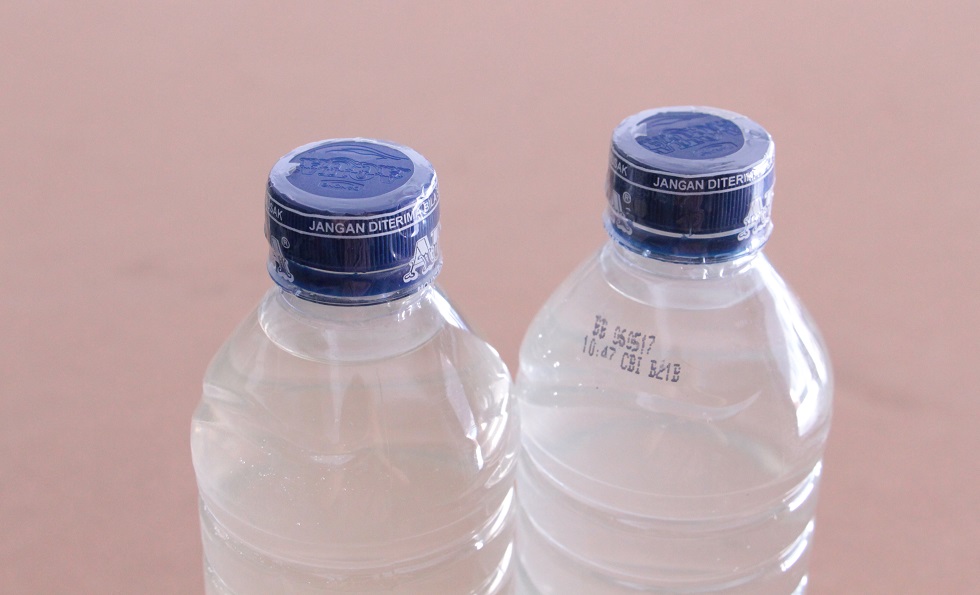

Body and Cap Shrink

For individual bottle body shrink wrap or cap shrink wrap, we offer automatic applicating machine, heat shrink tunnel and fully integrated system.

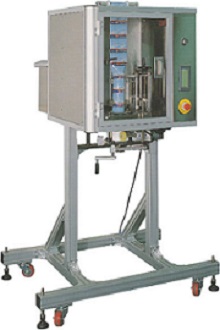

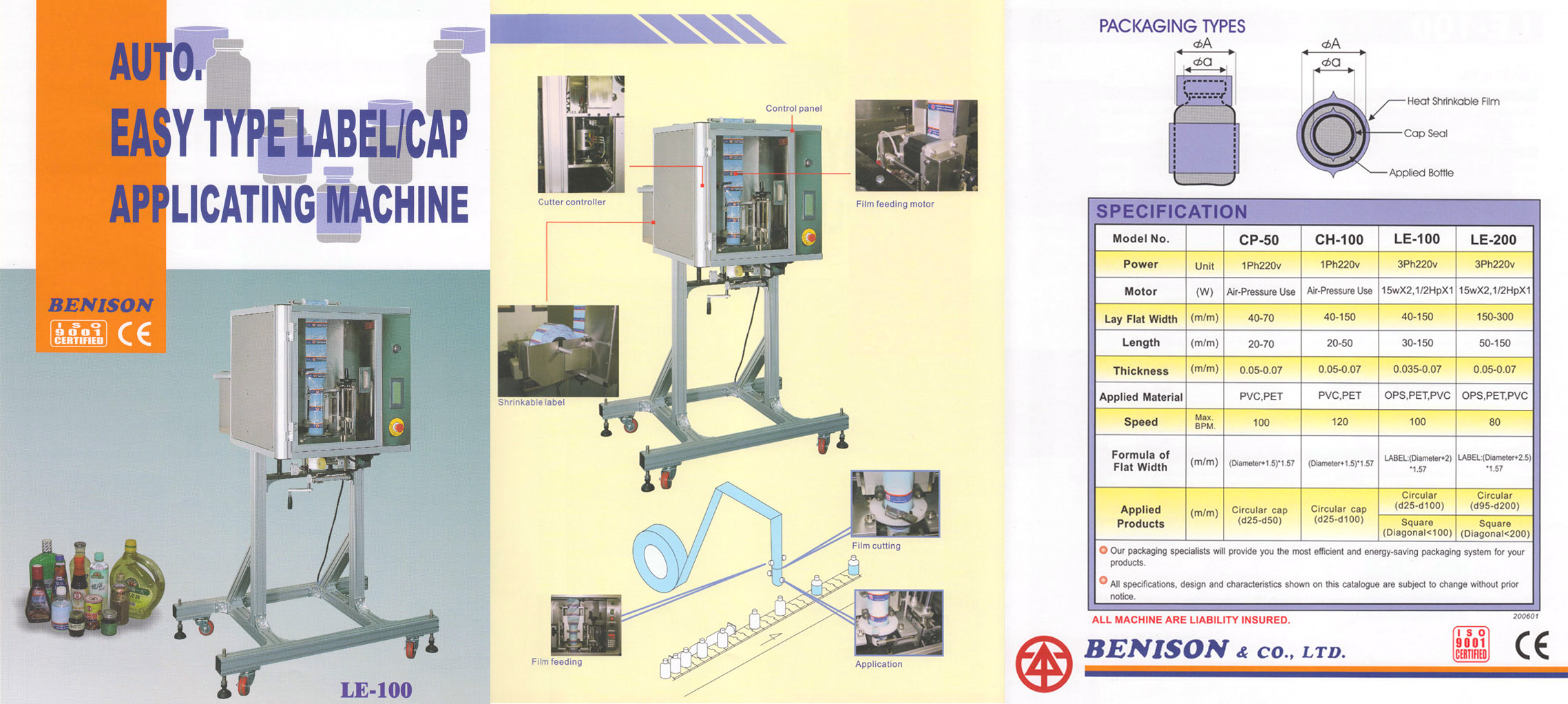

LE-100 Automatic Applicating Machine



  • Applicating label or cap shrink film
  • Easy operation


SPECIFICATIONS:

Model LE-100
Power 220V 3Ø
Motor 15W x 2 ; 1/2HP x 1
Lay Flat Width 40-150mm
Length 30-150mm
Thickness 0.035-0.07mm
Applied Material OPS, PET, PVC
Speed (max) 100 BPM
Applied Products Circular (25mm-100mm ø)
Square (Diagonal <100mm)

For more information, please click here.

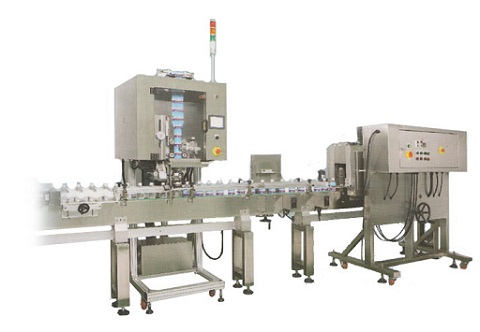

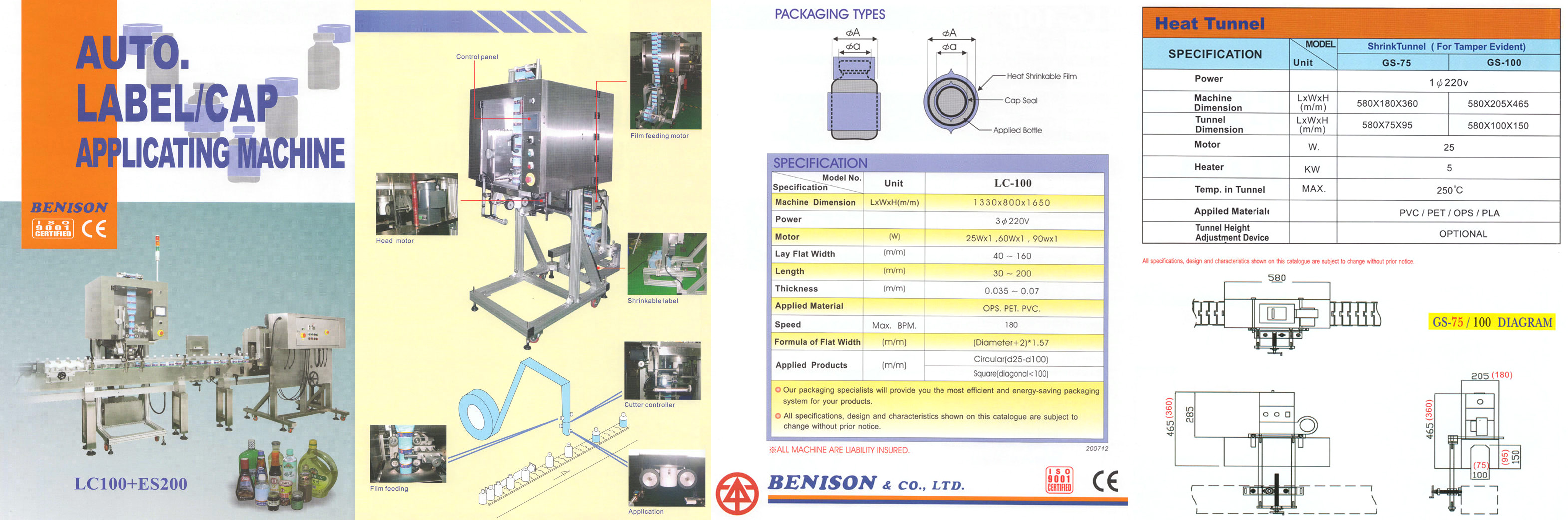

LC100 + ES200


  • Applicating label or cap shrink film
  • Easy operation


SPECIFICATIONS:

Model LC-100
Power 220V 3Ø
Motor 25W x 1; 60W x 1; 90W x 1
Lay Flat Width 40-160mm
Length 30-200mm
Thickness 0.035-0.07mm
Applied Material OPS, PET, PVC
Speed (max) 180 BPM
Applied Products Circular (25mm-100mm ø)
Square (Diagonal <100mm)
Machine Dimension 1330mm x 800mm x 1650mm

For more information, please click here.

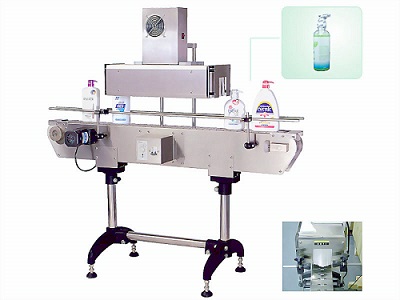

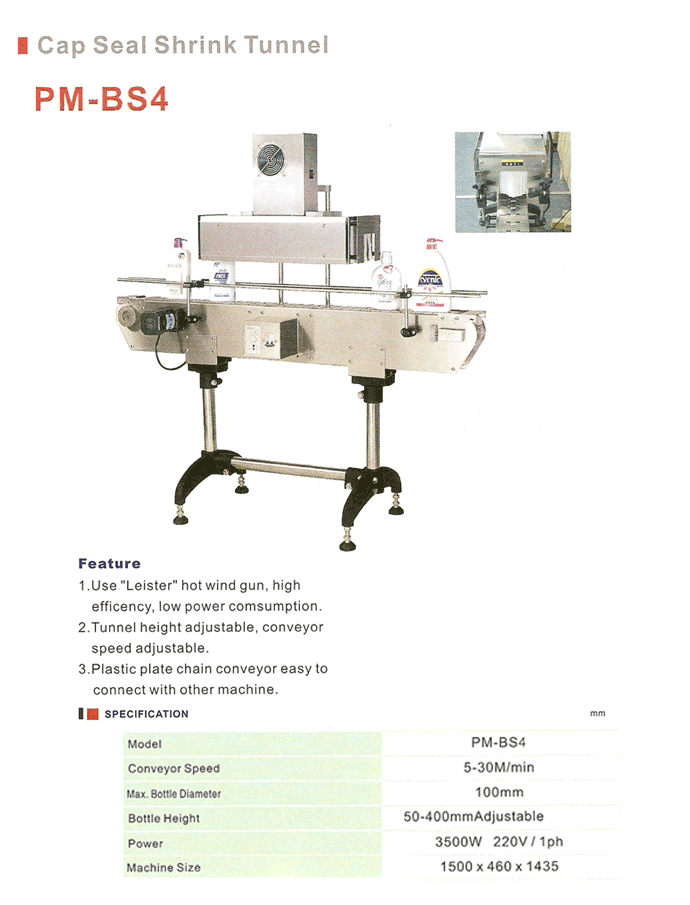

PM-BS4 (Manual Load Cap Shrink)


Features:

  • Special design for shrinking label around the cap part, adopting " Leister" hot air gun with low power consumption, high efficiency and stable performance.
  • Stainless steel out case or Aluminum Alloy with high quality polish-finish.
  • Temperature and conveyor speed adjustable.
  • Stainless steel plate chain conveyor easy to connect with other machine.

SPECIFICATIONS:

Model PM-BS4
Voltage 220V 1Ø
Power 3.5 KW
Conveyor Speed 5~30 M/min.
Max. Bottle diameter 100 mm
Bottle Height 50 ~ 400mm (Adjustable)
Machine Dimension 1500mm x 460mm x 1435mm

For more information, please click here.

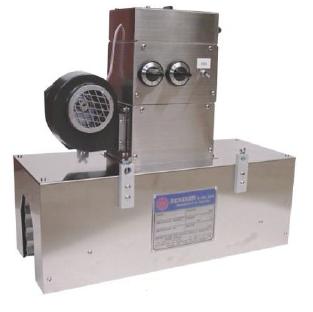

GS-75 / GS-100 (Conveyor Mounted Cap Shrink)

  • For tamper evident
  • Easy installation and operation


SPECIFICATIONS

Model GS-75
Voltage 220V 1Ø
Heater 5 KW
Motor 4 W
Temp. in tunnel 250 °C
Applied material PVC / PET / OPS / PLA
Machine Dimension 580mm x 195mm x 475mm
Tunnel Dimension 580mm x 75mm x 100 mm
Tunnel Heigh adjustment Manual

For more information, please click here.

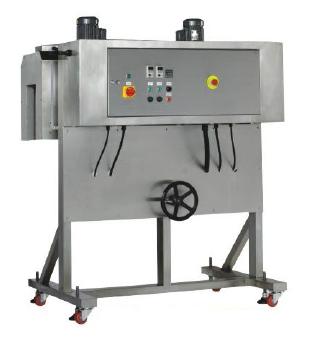

ES-130 / ES-200 (Heat tunnel)


  • For shrinkable label
  • Simple operation


SPECIFICATIONS:

Model ES-130
Voltage 380V 3Ø
Heater 9 KW
Motor AC 1/4 x 2
Temp. in tunnel 200 °C
Applied material PVC / PET / OPS / PLA
Machine Dimension 900mm x 800mm x 1480mm
Tunnel Dimension 900mm x 130mm x 190 mm
Tunnel Heigh adjustment Manual
Auto (Optional)

For more information, please click here.

Machines in Factory
